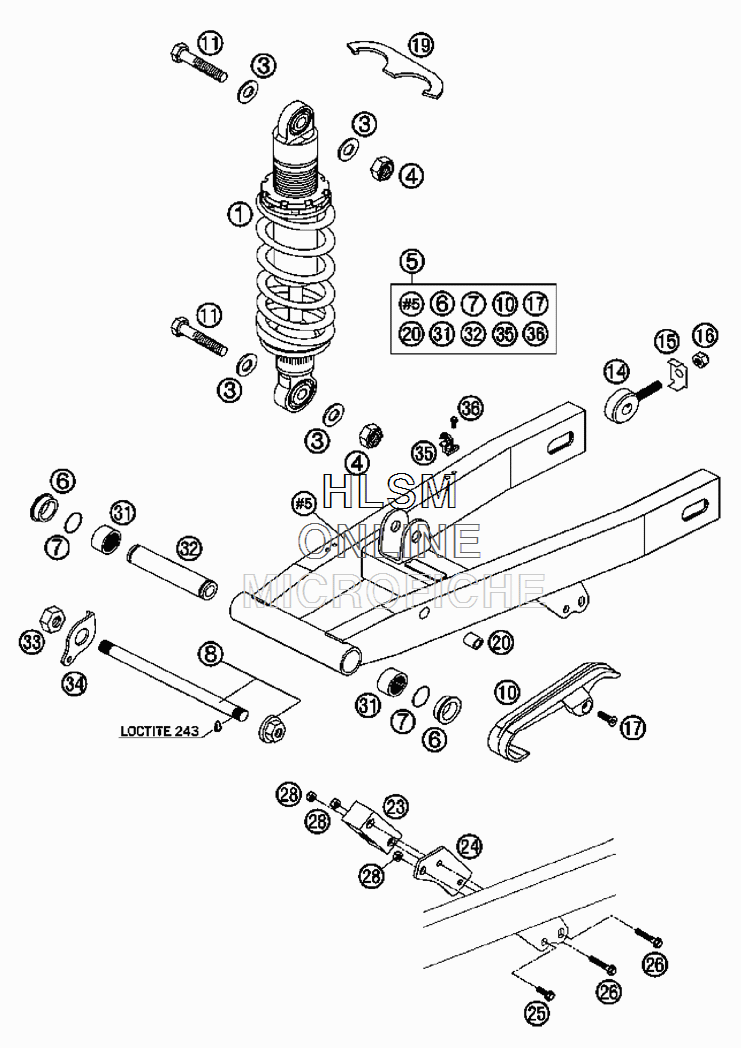

SWINGARM W/ MONOSHOCK для Ktm 50 SX Pro Sr - 2001 года выпуска`

№

Артикул

Название
1

03189C02 MONOSHOCK

MONOSHOCK

170 ₽
3

0125100003 WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

290 ₽
4

0982100003 SELF LOCK.NUT DIN0982-M10 HIGH

SELF LOCK.NUT DIN0982-M10 HIGH

350 ₽
5

45104030444 SWINGARM CPL. SEN

SWINGARM CPL. SEN

78 290 ₽
6

46004030070 SPACER BUSHING 20X26X30X9,7

SPACER BUSHING 20X26X30X9,7

530 ₽
7

0770160021 O-RING 16,00X2,00 VITON

O-RING 16,00X2,00 VITON

500 ₽
8

45103014144 SWING ARM BOLT CPL.

SWING ARM BOLT CPL.

9 110 ₽
10

45104066000 CHAIN SLID. GUARD FRO.

CHAIN SLID. GUARD FRO.

2 220 ₽
11

0931100453 HH SCREW DIN0931-M10X45

HH SCREW DIN0931-M10X45

590 ₽
14

45010083000 CHAIN ADJUSTER

CHAIN ADJUSTER

3 560 ₽
15

45010083060 SUPPORTING BRACKET

SUPPORTING BRACKET

1 520 ₽
16

0985080003 SELF LOCKING NUT DIN0985-M 8

SELF LOCKING NUT DIN0985-M 8

270 ₽
17

0991060203 FLAT H.SCREW DIN7991-M6X20 8.8

FLAT H.SCREW DIN7991-M6X20 8.8

290 ₽
19

45004010090 HOOK WRENCH

HOOK WRENCH

2 050 ₽
20

55003139900 BLIND RIVET THREAD M6 STE. 4MM

BLIND RIVET THREAD M6 STE. 4MM

470 ₽
23

45004070000 CHAIN GUIDE REAR

CHAIN GUIDE REAR

2 380 ₽
24

45104170000 BRACKET FOR CHAIN GUARD

BRACKET FOR CHAIN GUARD

2 160 ₽
25

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
26

0015050303 HH COLLAR SCREW M 5X30 WS=8

HH COLLAR SCREW M 5X30 WS=8

350 ₽
28

0985050003 SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

290 ₽
31

54603097000 NEEDLE BUSH HK 2016

NEEDLE BUSH HK 2016

4 060 ₽
32

45104032000 BEARING SLEEVE

BEARING SLEEVE

14 660 ₽
33

0934120103 HEXAGON NUT DIN0934-M12X1

HEXAGON NUT DIN0934-M12X1

410 ₽
34

45113053000 BRACKET FOR SPRING

BRACKET FOR SPRING

970 ₽
35

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
36

0015050123 HH COLLAR SCREW M 5X12 WS=8

HH COLLAR SCREW M 5X12 WS=8

500 ₽
