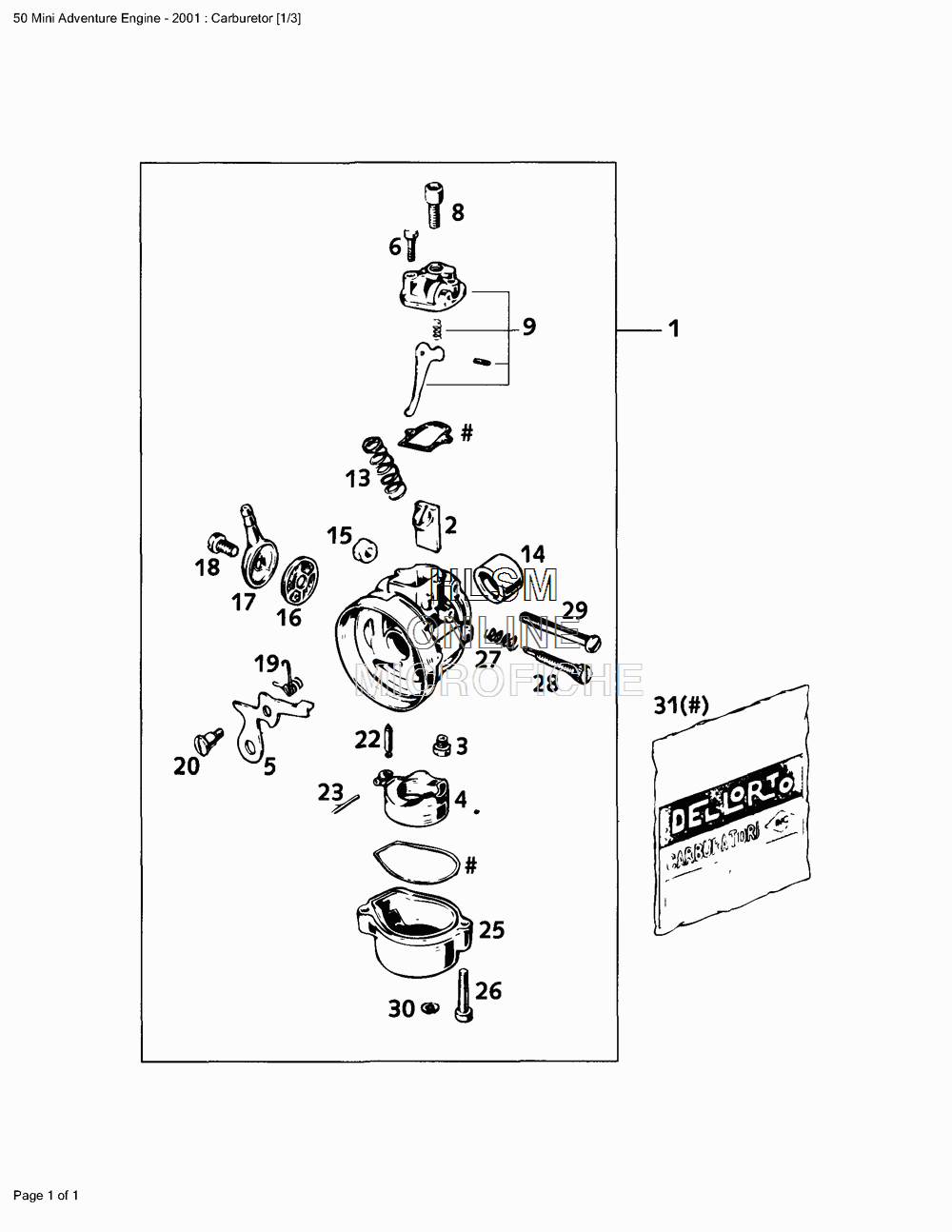

CARBURETOR для Ktm 50 Mini Adventure - 2001 года выпуска`
-
№АртикулНазвание
-
145031101044 CARBURETOR DELLORTO SHA1412LCARBURETOR DELLORTO SHA1412L
-
215131135000 THROTTLE SLIDETHROTTLE SLIDE
-
315131123054 JET 54JET 54
-
315131123055 JET 55JET 55
-
315131123056 JET 56JET 56
-
315131123057 JET 57JET 57
-
315131123058 JET 58JET 58
-
315131123060 JET 60JET 60
-
315131123062 JET 62JET 62
-
315131123065 JET 65JET 65
-
415131109000 FLOATFLOAT
-
515131133000 COLD START FLAP (FLOW RATE 50)COLD START FLAP (FLOW RATE 50)
-
60084040143 CYL.HEAD SCREW DIN0084-M 4X14ACYL.HEAD SCREW DIN0084-M 4X14A
-
845031025000 ADJUSTING SCREW M6X0,75ADJUSTING SCREW M6X0,75
-
915131127000 COVER CPL.COVER CPL.
-
1315131130000 SLIDE SPRINGSLIDE SPRING
-
1445031539000 REDUCTION RING FOR DELLORTOREDUCTION RING FOR DELLORTO
-
150934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1615131112000 FUEL FILTERFUEL FILTER
-
1715131113000 TUBE CONNECTIONTUBE CONNECTION
-
180084050123 CYL.HEAD SCREW DIN0084-M 5X12ACYL.HEAD SCREW DIN0084-M 5X12A
-
1915131129000 SPRINGSPRING
-
2015131141000 SPECIAL SCREW M4SPECIAL SCREW M4
-
2215131120000 FLOAT NEEDLEFLOAT NEEDLE
-
2315131108000 PIN 2X16,5PIN 2X16,5
-
2515131111000 FLOAT CHAMBERFLOAT CHAMBER
-
260084040203 CYL.SCREW DIN0084-M 4X20 ACYL.SCREW DIN0084-M 4X20 A
-
2715131118000 SPRING 0,8X12SPRING 0,8X12
-
2815131119000 ADJUSTING SCREWADJUSTING SCREW
-
290084060283 CYL.HEAD SCREW DIN0084-M 6X28ACYL.HEAD SCREW DIN0084-M 6X28A
-
300137040003 SPRING WASHER DIN0137-B 4SPRING WASHER DIN0137-B 4
-
3115131099000 GASKET SET SHA 1412 LGASKET SET SHA 1412 L
