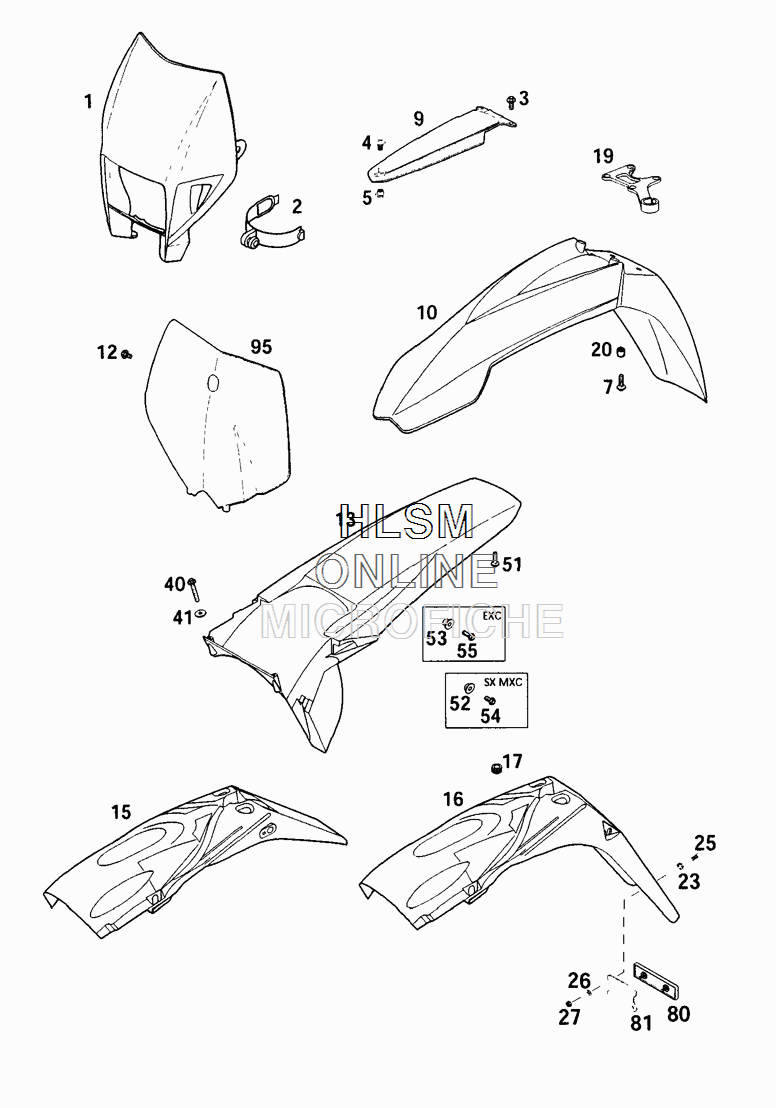

MASK W/ FENDERS для Ktm 300 MXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5030800100004 H,LIGHT MASK ORANGE
    H,LIGHT MASK ORANGE
  • 2
    50211086000 MASK RUBBER UFO WP
    MASK RUBBER UFO WP
  • 3
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 4
    50308009050 SCREW FEND. BRACE M8X9 WS=17
    SCREW FEND. BRACE M8X9 WS=17
  • 5
    50308009051 NUR FENDER BRACE M8 WS=17
    NUR FENDER BRACE M8 WS=17
  • 7
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 9
    50308009100 FENDER BRACE BLACK
    FENDER BRACE BLACK
  • 10
    5030801010004 FENDER FRONT ORANGE
    FENDER FRONT ORANGE
  • 12
    0014060103 HH COLLAR SCREW M 6X10 WS=B
    HH COLLAR SCREW M 6X10 WS=B
  • 13
    5030801300090 REAR FENDER SX SILVER
    REAR FENDER SX SILVER
  • 17
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 19
    59008019000 BRAKE HOSE GUIDE 2000
    BRAKE HOSE GUIDE 2000
  • 20
    50208020000 SPACER BUSHING 7X10X7,5
    SPACER BUSHING 7X10X7,5
  • 23
    40006006000 WASHER 6MM
    WASHER 6MM
  • 25
    0966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 26
    0125050003 WASHER DIN0125-A 5,0
    WASHER DIN0125-A 5,0
  • 27
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 40
    0017060403 SPECIAL SCREW T60 6X40
    SPECIAL SCREW T60 6X40
  • 41
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 51
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 52
    50308052100 BUSH FOR FENDER 6X11X20X5
    BUSH FOR FENDER 6X11X20X5
  • 53
    50308053100 BUSH F.NUM.PL.CAR, 6X11X22X9,5
    BUSH F.NUM.PL.CAR, 6X11X22X9,5
  • 54
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 55
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 80
    58412080000 REFLECTOR RED
    REFLECTOR RED
  • 81
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
