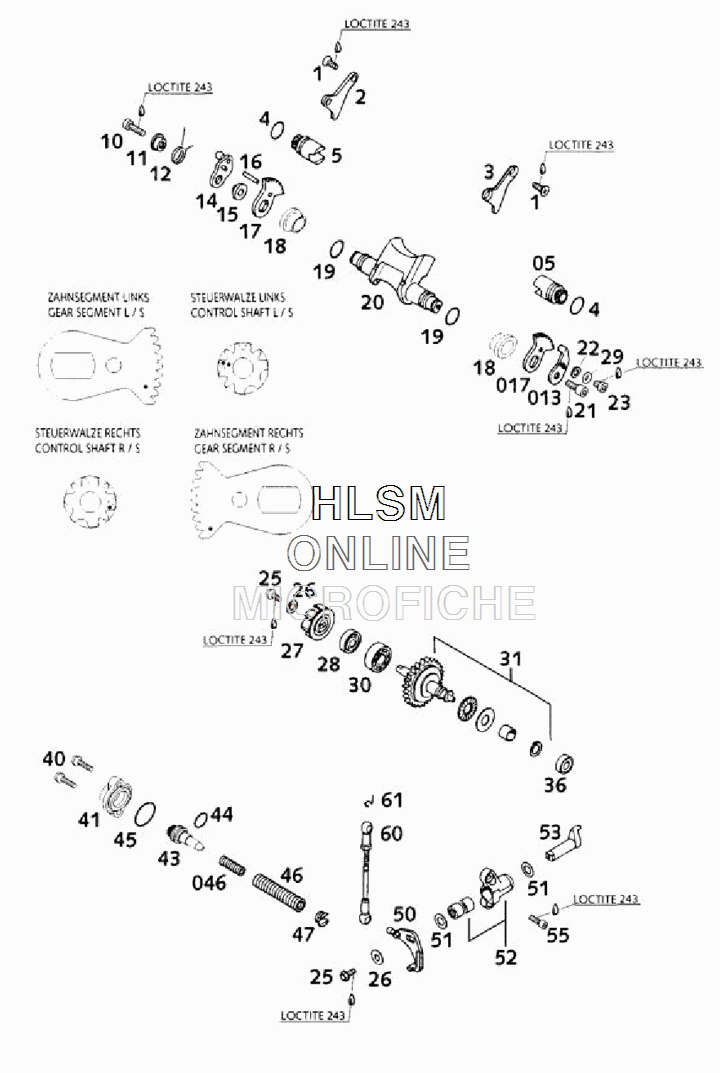

TWIN VALVE CONTROL для Ktm 300 EXC - 2001 года выпуска`
-
№АртикулНазвание
-
10965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
254637362000 RETAININGPLATE R/SRETAININGPLATE R/S
-
354637363000 RETAININGPLATE L/SRETAININGPLATE L/S
-
40770160021 O-RING 16,00X2,00 VITONO-RING 16,00X2,00 VITON
-
554637361444 CONTR.VALVE L/S "L"CONTR.VALVE L/S "L"
-
554637361544 CONTROL VALVE R/SCONTROL VALVE R/S
-
100912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
1154637067000 SPRING SLEEVESPRING SLEEVE
-
1254637066000 OVERLOAD SPRINGOVERLOAD SPRING
-
01354637085300 RETAIN.PLATE CONTROL FLAPRETAIN.PLATE CONTROL FLAP
-
1454637065000 CONTROL LEVER WITH BALL TYPECONTROL LEVER WITH BALL TYPE
-
1554637068100 BEARING SLEEVEBEARING SLEEVE
-
160007050160 CYLINDER PIN DIN0007- 5X16CYLINDER PIN DIN0007- 5X16
-
1754637364000 GEAR SEGMENT R/SGEAR SEGMENT R/S
-
1754637364050 GEAR SEGM. L/S M6GEAR SEGM. L/S M6
-
1854737019000 BEAR. SLEEVE F.CONTROL FLAPBEAR. SLEEVE F.CONTROL FLAP
-
190770150151 O-RING 15,00X1,50 VITONO-RING 15,00X1,50 VITON
-
2054637320900 CONTROL FLAP "3004"CONTROL FLAP "3004"
-
210912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
2254637056000 WASHER 6,5X11X2WASHER 6,5X11X2
-
230984060063 AH SCREW DIN7984-M 6X 6AH SCREW DIN7984-M 6X 6
-
250015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
260349000050 WASHER DIN7349- 5X15X2WASHER DIN7349- 5X15X2
-
2754635005000 WATER PUMP WHEELWATER PUMP WHEEL
-
280760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
290137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
300625160026 BALL BEARING 16002BALL BEARING 16002
-
3154637050344 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
3654637098000 GROOVED BALL BEAR. 626.2RS1.C3GROOVED BALL BEAR. 626.2RS1.C3
-
400015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
4154637070100 COVER LIDCOVER LID
-
4354637075100 SPRING GUIDESPRING GUIDE
-
440770021120 O-RING 12,37X2,62 NBR70O-RING 12,37X2,62 NBR70
-
450770240020 O-RING 24,00X2,00 NBR70O-RING 24,00X2,00 NBR70
-
4654637072100 ADJUST.SPRING L=65MM D=2MMADJUST.SPRING L=65MM D=2MM
-
04654637072300 AUXILIARY SPRING 1,3MMAUXILIARY SPRING 1,3MM
-
4754637071200 SPRING INSERTSPRING INSERT
-
5054637055244 ANGLE LEVER CPL.ANGLE LEVER CPL.
-
510988101610 SHIM WASHER DIN988 10X16X1,0SHIM WASHER DIN988 10X16X1,0
-
5254637059244 BEARING SUPPORT CPL.BEARING SUPPORT CPL.
-
5354637057200 CONTROL LEVERCONTROL LEVER
-
550912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
6054637095344 CONNECT.ROD 250-380 L=92,5MMCONNECT.ROD 250-380 L=92,5MM
-
6150237195055 SECURING DIN-71805-S-8SECURING DIN-71805-S-8
