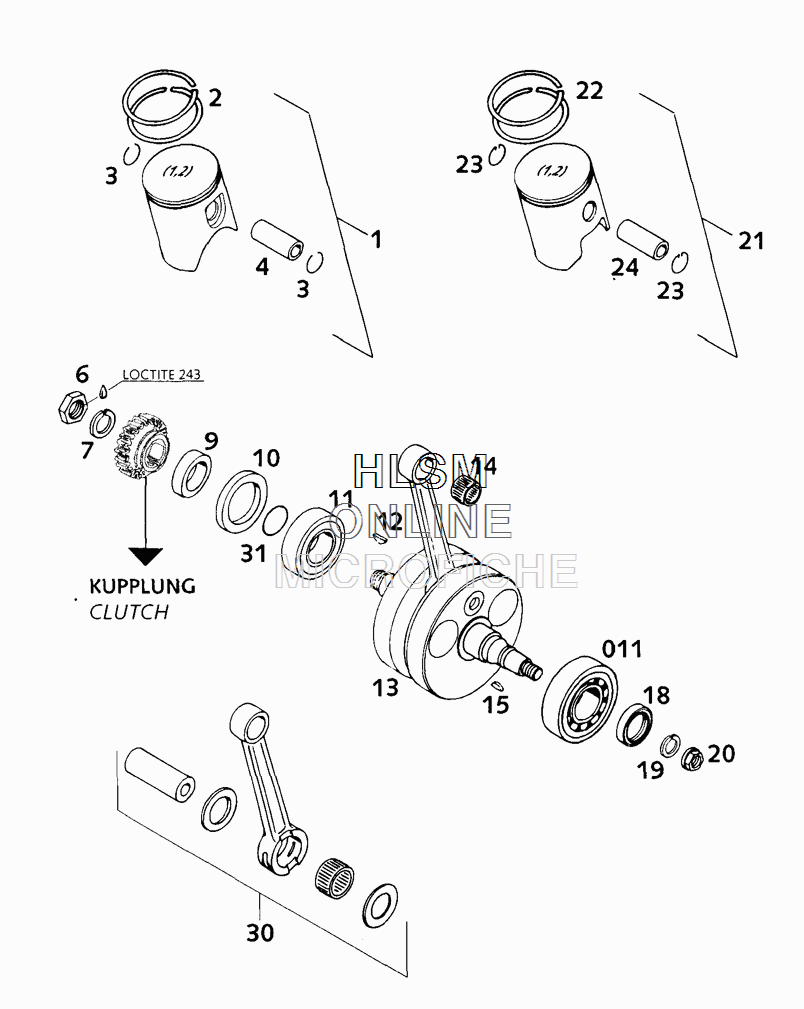

CRANKSHAFT W/ PISTON для Ktm 250 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    54630207000I PISTON 1 CPL. 66,4MM (ONE RING)
    PISTON 1 CPL. 66,4MM (ONE RING)
  • 1
    54630207000II PISTON II CPL. 66,4MM (ONE RING)
    PISTON II CPL. 66,4MM (ONE RING)
  • 1
    54630207100I PISTON I CPL. 66,4MM (TWO RINGS)
    PISTON I CPL. 66,4MM (TWO RINGS)
  • 1
    54630207100II PISTON II CPL. 66,4MM (TWO RINGS)
    PISTON II CPL. 66,4MM (TWO RINGS)
  • 2
    54630232000 SQUARE RING 66,4MM
    SQUARE RING 66,4MM
  • 3
    54030074000 WIRE LOCK RING C18X1,5
    WIRE LOCK RING C18X1,5
  • 4
    54630233000 PISTON PIN 18X55,8
    PISTON PIN 18X55,8
  • 4
    54730033000 PISTON PIN 18 X 48
    PISTON PIN 18 X 48
  • 6
    54630029000 HEX.NUT L/S M18X1,5
    HEX.NUT L/S M18X1,5
  • 7
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 9
    54630016400 SPACER SLEEVE 28X38X11,5
    SPACER SLEEVE 28X38X11,5
  • 10
    0760385273 SHAFT SEAL RING 38X52X7BTSL
    SHAFT SEAL RING 38X52X7BTSL
  • 11
    0625622064 BALL BEARING 62206.803107
    BALL BEARING 62206.803107
  • 011
    56530123100 CYLIND.ROLLER BEARING N1207NSK
    CYLIND.ROLLER BEARING N1207NSK
  • 12
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 13
    54630218000 CRANKSHAFT STROKE72
    CRANKSHAFT STROKE72
  • 13
    54630218100 CRANKSHAFT STR.72 "250" '
    CRANKSHAFT STR.72 "250" '
  • 14
    54430034000 NEEDLE BEARING KBK 18X22X20
    NEEDLE BEARING KBK 18X22X20
  • 15
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 18
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 19
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 22
    54630332000 SQUARE RING 72,0X1,25 300 CC
    SQUARE RING 72,0X1,25 300 CC
  • 23
    54330074000 WIRE LOCK RING SKA 18
    WIRE LOCK RING SKA 18
  • 24
    54630033000 PISTON PIN 18 X 44
    PISTON PIN 18 X 44
  • 30
    54630215000 CONROD REP KIT 250 L=129MM
    CONROD REP KIT 250 L=129MM
  • 31
    0770250015 O-RING 25,00X1,50 NBR 70
    O-RING 25,00X1,50 NBR 70
