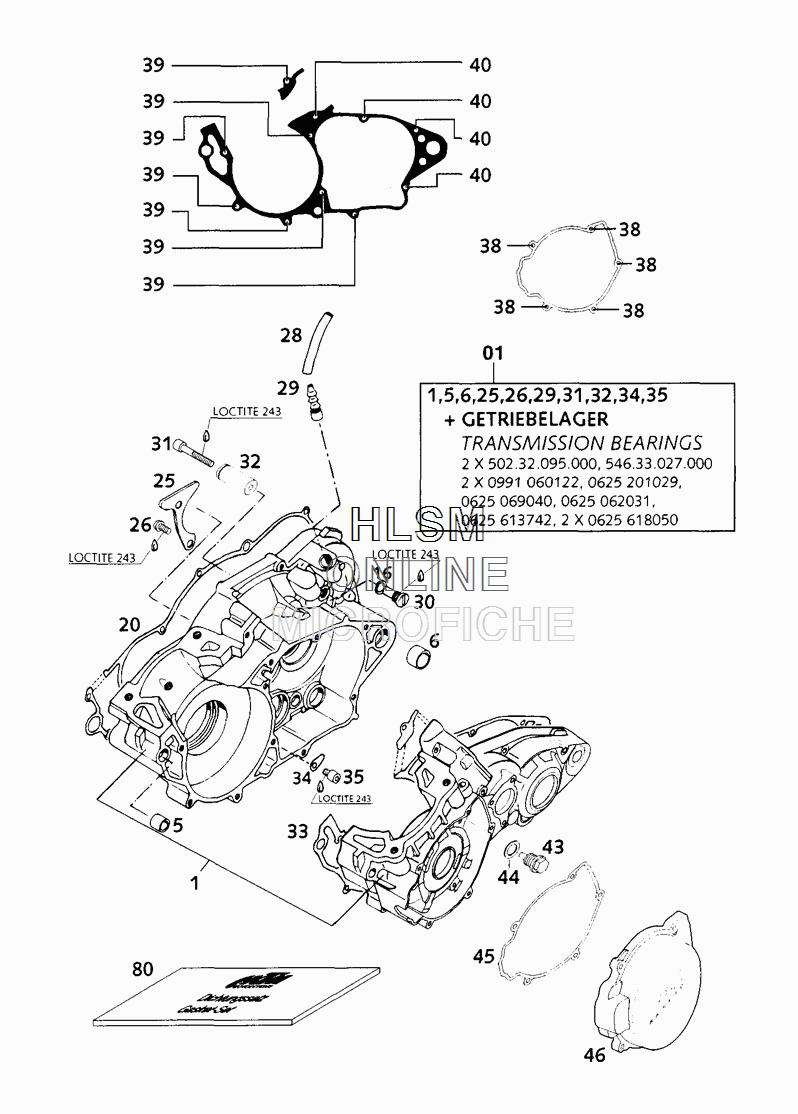

ENGINE CASE для Ktm 250 MXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 01
    54730000144 ENGINE CASE CPL.W.TRAN.BEAR
    ENGINE CASE CPL.W.TRAN.BEAR
  • 5
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 6
    50130027000 DOWEL 19 X15,1X12
    DOWEL 19 X15,1X12
  • 16
    58038032110 CU-SEAL RING 9 X 13 X1
    CU-SEAL RING 9 X 13 X1
  • 20
    54630025100 CLUTCH COVER GASKET 0,5MM
    CLUTCH COVER GASKET 0,5MM
  • 25
    54630017000 RETAINING PLATE
    RETAINING PLATE
  • 26
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 28
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 29
    54630022000 BLEEDER FLANGE
    BLEEDER FLANGE
  • 30
    54530001150 FLAT HEAD SCREW WITH PIN
    FLAT HEAD SCREW WITH PIN
  • 31
    0912060404 AH SCREW DIN0912-M 6X40
    AH SCREW DIN0912-M 6X40
  • 32
    59033018000 BEARING PIN 6X17X44 2000
    BEARING PIN 6X17X44 2000
  • 33
    54630039200 CASE GASKET 0,5MM
    CASE GASKET 0,5MM
  • 34
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 35
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 38
    0015050163 HH COLLAR SCREW M5X16 WS=8
    HH COLLAR SCREW M5X16 WS=8
  • 39
    0015060453 HH COLLAR SCREW M6X45 WS=8
    HH COLLAR SCREW M6X45 WS=8
  • 40
    0015060603 HH COLLAR SCREW M6X60 WS=8
    HH COLLAR SCREW M6X60 WS=8
  • 43
    58030021000 OILDRAIN PLUG W.MAGNET M12X1,5
    OILDRAIN PLUG W.MAGNET M12X1,5
  • 44
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 45
    54730040100 IGNIT.COVER GASKET 0,5MM
    IGNIT.COVER GASKET 0,5MM
  • 46
    5473000210098 IGNITION COVER
    IGNITION COVER
  • 80
    54630099000 GASKET SET
    GASKET SET
