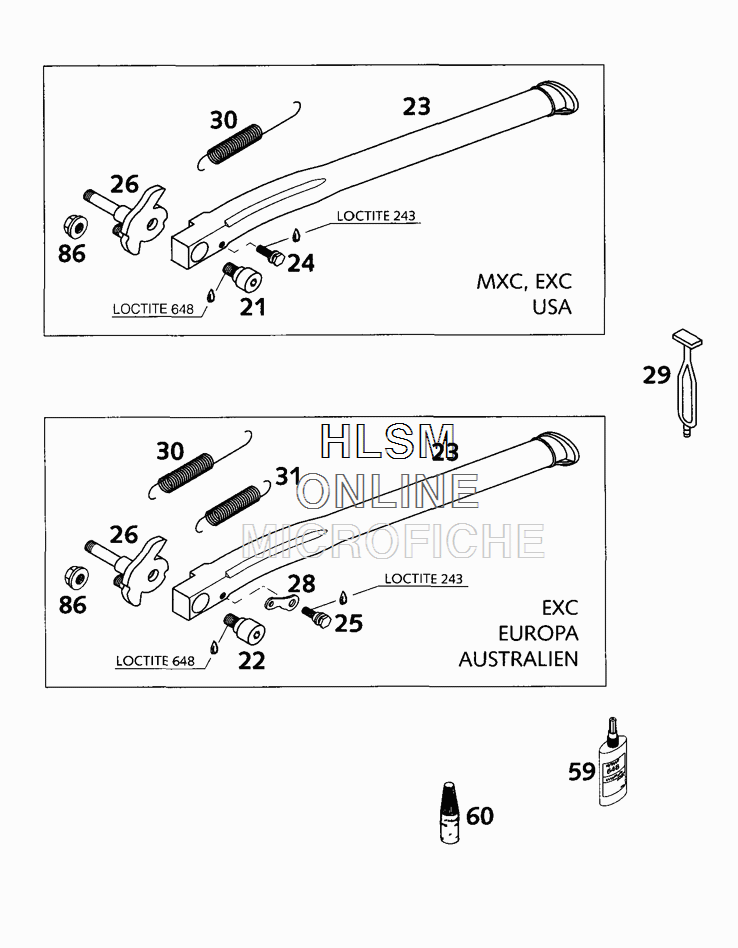

SIDE AND CENTER STAND для Ktm 200 EXC - 2001 года выпуска`
-
№АртикулНазвание
-
2150303023060 SCREW M8 SIDE STANDSCREW M8 SIDE STAND
-
2250303023160 SCREW M8 SIDE STANDSCREW M8 SIDE STAND
-
2350303023000 SIDE STAND L=377MMSIDE STAND L=377MM
-
2450303023052 BOLT SIDE ST..SPRING M5BOLT SIDE ST..SPRING M5
-
2550303023152 BOLT SIDE ST.SPRING M5BOLT SIDE ST.SPRING M5
-
2650303026000 SIDE ST.BRACKET CPL.SIDE ST.BRACKET CPL.
-
2850303023054 BRACKET FOR SPRINGBRACKET FOR SPRING
-
2950303025000 RUBBER FOR SIDE STANDRUBBER FOR SIDE STAND
-
3050303024000 SIDESTAND SPRINGSIDESTAND SPRING
-
3110003021000 STAND SPRING SHORTSTAND SPRING SHORT
-
5958429059000 LOCTITE 648 GREEN 20MLLOCTITE 648 GREEN 20ML
-
606899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
8654310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
