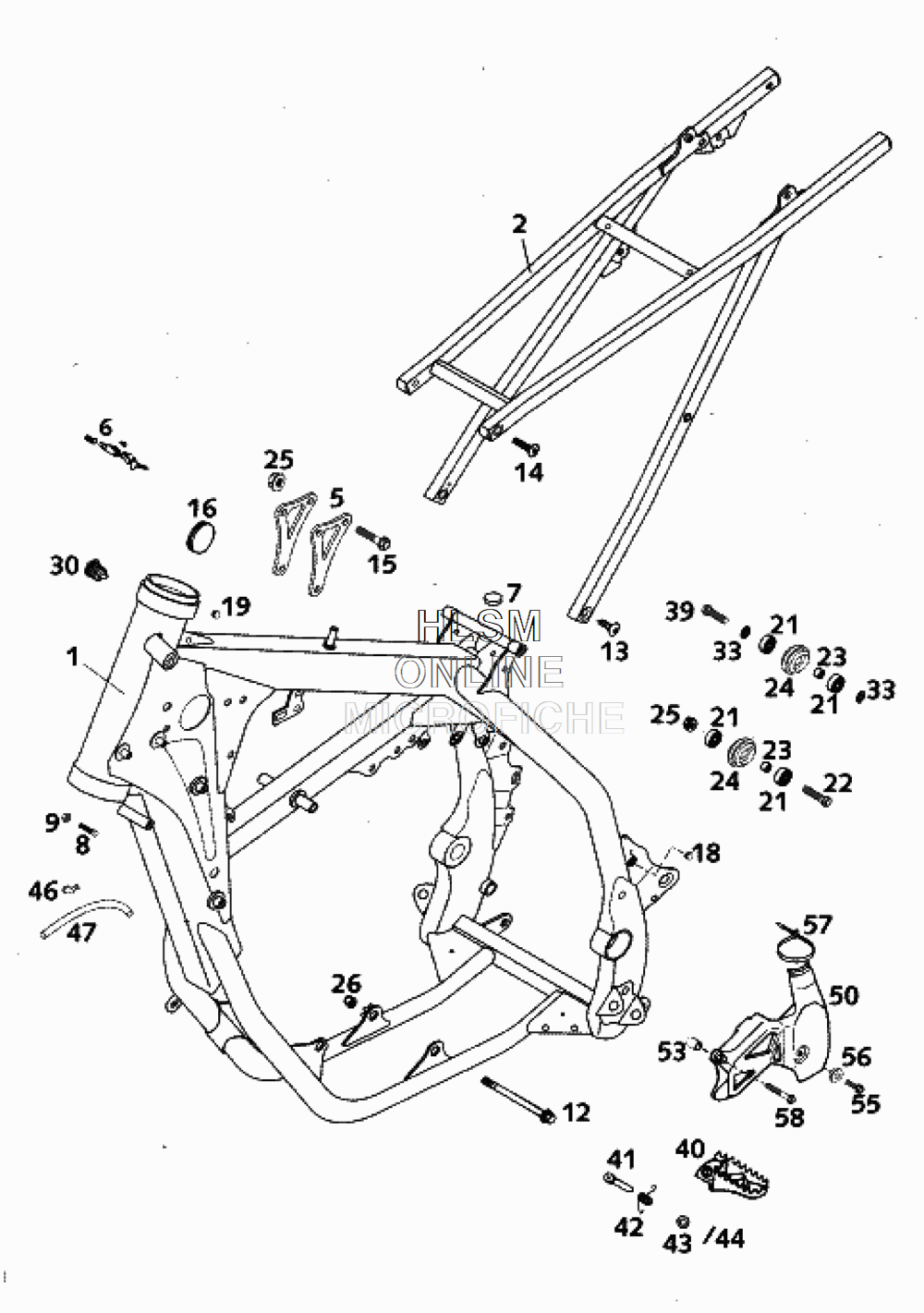

FRAMESUBFRAME для Ktm 125 SX - 2001 года выпуска

  • №
    Артикул
    Название
  • 2
    50303001200 FRAME WITHOUT LOCK BODY. SILVER
    FRAME WITHOUT LOCK BODY. SILVER
  • 1
    50303001300 FRAME WITH LOCK BODY, SILVER
    FRAME WITH LOCK BODY, SILVER
  • 2
    50303002044 SUB FRAME CPL.
    SUB FRAME CPL.
  • 5
    50303013000 REINFORCING BRACKET
    REINFORCING BRACKET
  • 6
    71003007000 STEERING HEAD LOCK CPL.
    STEERING HEAD LOCK CPL.
  • 7
    50307020000 RUBBER BUFFER FOR TANK
    RUBBER BUFFER FOR TANK
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 12
    54603013000 ENGINE BRAC.SCREW M10X105-10.9
    ENGINE BRAC.SCREW M10X105-10.9
  • 13
    54610052000 SPROCKET SCREW- AH M 8X20
    SPROCKET SCREW- AH M 8X20
  • 14
    54510052100 SPROCKET SCREW·AH M8X26 10.9
    SPROCKET SCREW·AH M8X26 10.9
  • 15
    56530079000 SPECIAL SCREW M8X42·10.9
    SPECIAL SCREW M8X42·10.9
  • 16
    54606004000 PLUG 37MM
    PLUG 37MM
  • 18
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 19
    36111021000 PLUG
    PLUG
  • 21
    0625006087 GROOVED BALL BEAR.
    GROOVED BALL BEAR.
  • 22
    0015080353 HH COLLAR SCREW M8X35
    HH COLLAR SCREW M8X35
  • 23
    74003021000 BUSHING 8X12 X 6,5
    BUSHING 8X12 X 6,5
  • 24
    52303053000 CHAIN ROLL D=30MM 125-380 '99
    CHAIN ROLL D=30MM 125-380 '99
  • 25
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 26
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 30
    42007049000 PLASTIC CAP
    PLASTIC CAP
  • 33
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 39
    0015080303 HH COLLAR SCREW M 8X30
    HH COLLAR SCREW M 8X30
  • 40
    59003040150 FOOT PED L/S SX SILVER
    FOOT PED L/S SX SILVER
  • 40
    59003041150 FOOT PED R/S SX SILVER
    FOOT PED R/S SX SILVER
  • 41
    54603044000 BOLT FOR FOOTREST 9,8 X 50
    BOLT FOR FOOTREST 9,8 X 50
  • 42
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 43
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 47
    55007016001 PVC·HOSE 7X10 PER METER
    PVC·HOSE 7X10 PER METER
  • 50
    54607061000 SPROCKET COVER
    SPROCKET COVER
  • 53
    54613038150 BUSHING 6, 5X8X11
    BUSHING 6, 5X8X11
  • 55
    0015060203 HH COLJ.AR SCREW M 6X20 WS
    HH COLJ.AR SCREW M 6X20 WS
  • 56
    50308053000 BUSH FOR SPOILER 6X11X16X7,5
    BUSH FOR SPOILER 6X11X16X7,5
  • 57
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 58
    0015060403 HH·COLLAR SCREW M 6X40
    HH·COLLAR SCREW M 6X40
