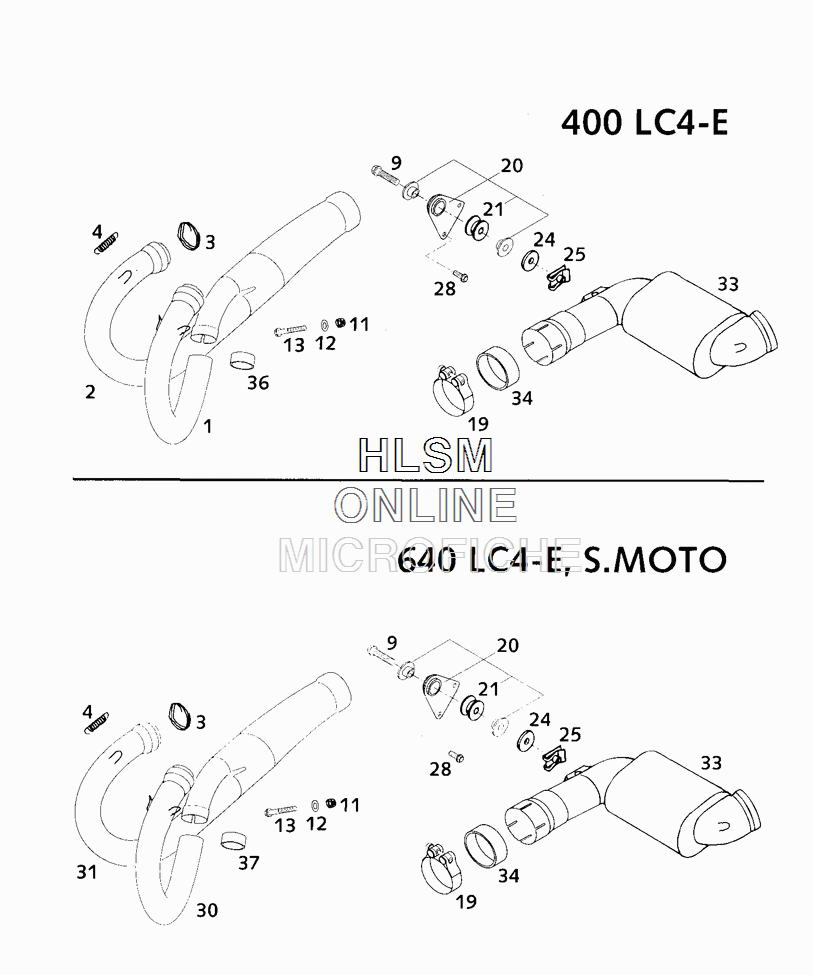

PIPES - PRE SILENCER для Ktm LC4 640 Dual Sport - 2000 года выпуска`
-
№АртикулНазвание
-
358305053001 CERAMIC LINE 1 METERCERAMIC LINE 1 METER
-
454309036000 RETURN SPRING L=38 MMRETURN SPRING L=38 MM
-
90015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
1151010086000 SELF LOCKING NUT M 6 COPPERSELF LOCKING NUT M 6 COPPER
-
120125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
130015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
1958705058000 PRE SILENCER CLAMP D=53MMPRE SILENCER CLAMP D=53MM
-
205830506504490 BRACKET-PRE-SIL.CPL SILVERBRACKET-PRE-SIL.CPL SILVER
-
2154305068100 DAMPING COMPONENT SILICON GREYDAMPING COMPONENT SILICON GREY
-
2451005067000 INSOLATE WASHER 8,5X28X3INSOLATE WASHER 8,5X28X3
-
2554603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
280015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3058405007200 EXHAUST PIPE L/S "KTM584"EXHAUST PIPE L/S "KTM584"
-
3158405008200 EXHAUST PIPE R/S "KTM584"EXHAUST PIPE R/S "KTM584"
-
3358405050300 PRESILENCER "KTM V2"PRESILENCER "KTM V2"
-
3458405005001 GRAPHIT RING 45X50X25GRAPHIT RING 45X50X25
-
3657705005000 GRAPHIT RING 28X32X20GRAPHIT RING 28X32X20
-
3758405005000 GRAPHIT RING 32X37X20GRAPHIT RING 32X37X20
