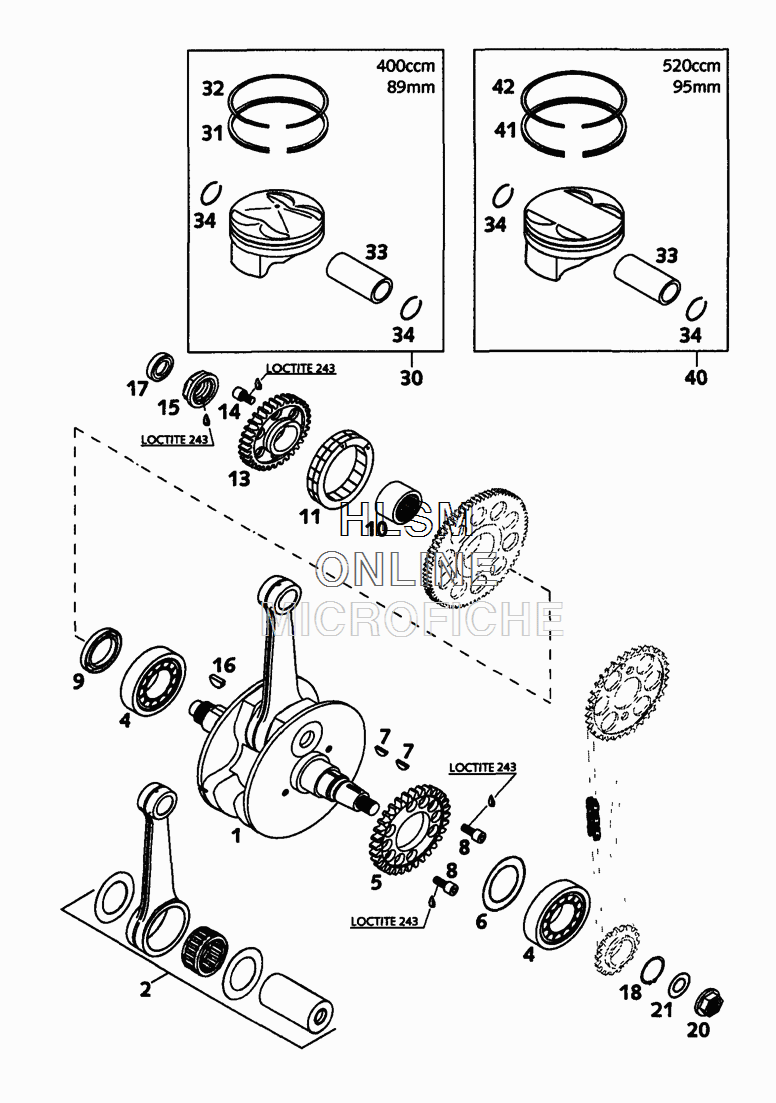

CRANKSHAFT W/ PISTON для Ktm 520 EXC Racing - 2000 года выпуска`
-
№АртикулНазвание
-
159030018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
159030018100 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
259030015044 CON.ROD REP SETCON.ROD REP SET
-
450330082000 CYL.ROLLER BEAR.NJ206 ET2XCS45CYL.ROLLER BEAR.NJ206 ET2XCS45
-
559030055000 DRIVE GEAR 32-T F.BALANC.SHAFTDRIVE GEAR 32-T F.BALANC.SHAFT
-
656030081000 THRUST WASHER 30X42X0,1THRUST WASHER 30X42X0,1
-
656030081100 THRUST WASHER 30X42X0,15THRUST WASHER 30X42X0,15
-
656030081200 THRUST WASHER 30X42X0,3THRUST WASHER 30X42X0,3
-
70888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
80984060162 AH SCREW DIN7984-M 6X16AH SCREW DIN7984-M 6X16
-
90760304771 SHAFT SEAL RING 30X47X7 VITONSHAFT SEAL RING 30X47X7 VITON
-
100618301617 NEEDLE BEARING HK 3016 BNEEDLE BEARING HK 3016 B
-
1158440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
1359032000033 PRIMARY GEAR 33-TPRIMARY GEAR 33-T
-
140912060126 AH SCREW M6X12 10,9AH SCREW M6X12 10,9
-
1559030029000 HH NUT M20X1,5 WS=27 (RIGHT)HH NUT M20X1,5 WS=27 (RIGHT)
-
1559030029100 HH NUR M20X1,5 WS=27 (LEFT)HH NUR M20X1,5 WS=27 (LEFT)
-
166946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
170760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
180471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
-
2049030021000 COLLAR NUT M12X1 (RIGHT)COLLAR NUT M12X1 (RIGHT)
-
210137120000 SPRING WASHER DIN0137-812SPRING WASHER DIN0137-812
-
3059530007000I PISTON 189MM CPL. CASTPISTON 189MM CPL. CAST
-
3059530007000II PISTON 1189MM CPL. FORGED 2000PISTON 1189MM CPL. FORGED 2000
-
3159530031000 OIL SCRAPER RING 89/81,5X3OIL SCRAPER RING 89/81,5X3
-
3257530032000 RECTANGULAR RING 89MMRECTANGULAR RING 89MM
-
3359030033000 PISTON PIN BOLT 20X15,8/12X50PISTON PIN BOLT 20X15,8/12X50
-
3459030074000 CIRCLIP C20X1,5CIRCLIP C20X1,5
-
4059030007000I PISTON 195MM CPL. FORGEDPISTON 195MM CPL. FORGED
-
4059030007000II PISTON 1195MM CPL.FORGEDPISTON 1195MM CPL.FORGED
-
4158030631000 OIL SCRAPER RING 95MMOIL SCRAPER RING 95MM
-
4259030032000 RECTANGULAR RING 95/87,2X1,25RECTANGULAR RING 95/87,2X1,25
