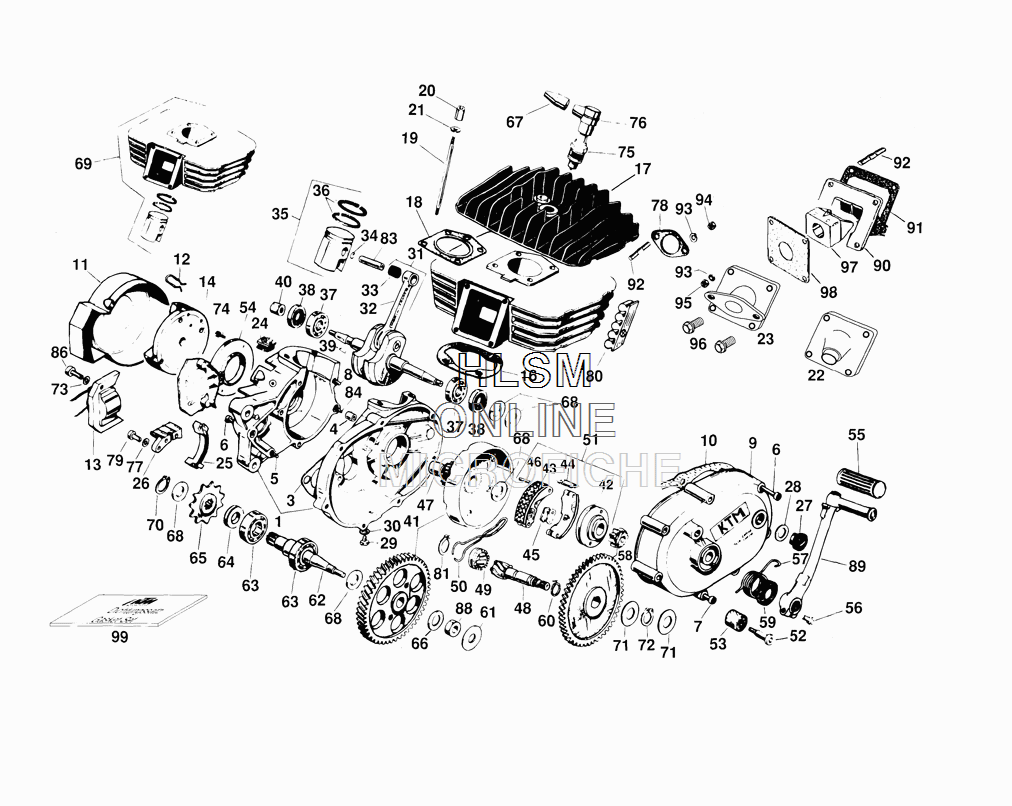

ENGINE (S5-GS) для Ktm 50 Sr Adventure - 2000 года выпуска`
-
№АртикулНазвание
-
145030000044 ENGINE CASE CPL.ENGINE CASE CPL.
-
345030039000 ENGINE CASE GASKETENGINE CASE GASKET
-
445030023000 DOWEL PIN 14X10X8DOWEL PIN 14X10X8
-
50912060404 AH SCREW DIN0912-M 6X40AH SCREW DIN0912-M 6X40
-
60912060453 AH SCREW DIN0912-M 6X45AH SCREW DIN0912-M 6X45
-
70912060503 AH SCREW DIN0912-M 6X50AH SCREW DIN0912-M 6X50
-
80912060553 AH SCREW DIN0912-M 6X55AH SCREW DIN0912-M 6X55
-
945030001000 CLUTCH COVERCLUTCH COVER
-
1045030025000 GASKET CLUTCH COVERGASKET CLUTCH COVER
-
1145030002000 IGNITION COVERIGNITION COVER
-
1245030092000 RETAINING SPRINGRETAINING SPRING
-
1345039006000 IGNITION COIL CPL.IGNITION COIL CPL.
-
1445039005000 FLYWHEELFLYWHEEL
-
1645030035800 CYL. BASE GASKETCYL. BASE GASKET
-
1745030006500 CYLINDER HEADCYLINDER HEAD
-
1836330036000 CYL. HEAD GASKETCYL. HEAD GASKET
-
1936330042000 STUD BOLT M6X112-25/15STUD BOLT M6X112-25/15
-
2045030079000 HH-NUT M6 36MM HIGH WS=12HH-NUT M6 36MM HIGH WS=12
-
210125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2345030050900 INTAKE FLANGE VM20INTAKE FLANGE VM20
-
2445030091000 RUBBER GASKETRUBBER GASKET
-
2545030095000 RUBBER FOR FLYWHEELRUBBER FOR FLYWHEEL
-
2645030047000 SECURING GUIDESECURING GUIDE
-
2715130020000 OIL LEVEL CONTR. PLUG PVC M14OIL LEVEL CONTR. PLUG PVC M14
-
2815130021000 SEAL RING 14,2X20X1SEAL RING 14,2X20X1
-
290933080103 HH SCREW DIN0933-M 8X10HH SCREW DIN0933-M 8X10
-
3045038017000 SEAL RING 8X14X1 AISEAL RING 8X14X1 AI
-
3145030018500 CRANKSHAFT STROKE 41,7MMCRANKSHAFT STROKE 41,7MM
-
3245030015500 CON. ROD REPAIR S5GCON. ROD REPAIR S5G
-
3345030034000 NEEDLE CAGE 12X15X15NEEDLE CAGE 12X15X15
-
3445030074000 CIRCLIPCIRCLIP
-
3545030007800/A PISTON CPL. "A" D=39MMPISTON CPL. "A" D=39MM
-
3545030007800/B PISTON CPL. "B" D=39MMPISTON CPL. "B" D=39MM
-
3545030007800/C PISTON CPL. "C" D=39MMPISTON CPL. "C" D=39MM
-
3545030007800/D PISTON CPL. "D" D=39MMPISTON CPL. "D" D=39MM
-
3645030030800 PISTON RINGS CPL.PISTON RINGS CPL.
-
370625062031 BALL BEARING 6203 TN9.C3BALL BEARING 6203 TN9.C3
-
3815130086000 RADIAL SEAL RING 17X35X8RADIAL SEAL RING 17X35X8
-
390888025030 WOODRUFF KEY DIN6888-2,5X3WOODRUFF KEY DIN6888-2,5X3
-
4016030028000 HH-NUT M8X14, WS=15HH-NUT M8X14, WS=15
-
4145032001500 CLUTCH HUB 52-Z W.PRIM.15-ZCLUTCH HUB 52-Z W.PRIM.15-Z
-
4245032002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
4316032011000 CLUTCH BLOCKCLUTCH BLOCK
-
4445032005500 CLUTCH SPRING REINFORCED (GREEN)CLUTCH SPRING REINFORCED (GREEN)
-
4545032008000 JOINT FOR BLOCKSJOINT FOR BLOCKS
-
4645032045000 ROLLER 3X13,8ROLLER 3X13,8
-
4716032095000 BUSHING 15X18X18BUSHING 15X18X18
-
4845033050000 STARTING SHAFTSTARTING SHAFT
-
4945033052000 KICKST RATCHETKICKST RATCHET
-
5045033056000 SPRINGSPRING
-
5145032002544 CLUTCH HUB CPL. REINFORCEDCLUTCH HUB CPL. REINFORCED
-
5216233039000 STOP SCREW M8STOP SCREW M8
-
5316233040000 RUBBER 10X26X18RUBBER 10X26X18
-
5445039003000 GROUND PLATE IGNITION COILGROUND PLATE IGNITION COIL
-
5545033076000 KICKSTARTER RUBBERKICKSTARTER RUBBER
-
560933070253 HH SCREW DIN0933-M 7X25HH SCREW DIN0933-M 7X25
-
5745033054000 KICKSTARTER SPRINGKICKSTARTER SPRING
-
5845033051000 KICKSTARTER SPROCKETSKICKSTARTER SPROCKETS
-
5945033077000 PLASTIC CAP KICKSTARTERPLASTIC CAP KICKSTARTER
-
600770012020 O-RING 16X1,75O-RING 16X1,75
-
6145033078000 WASHER 8,4X25X0,4WASHER 8,4X25X0,4
-
6245033002000 COUNTER SHAFTCOUNTER SHAFT
-
630625062027 BALL BEARING 6202 2RS1 C3BALL BEARING 6202 2RS1 C3
-
6415133028000 RADIAL SEAL RING 15X24X5RADIAL SEAL RING 15X24X5
-
6545033029800 SPROCKET 10-TSPROCKET 10-T
-
6615133031000 WASHER 12,2X20X1,8WASHER 12,2X20X1,8
-
6745039008000 RUBBER CAPRUBBER CAP
-
6845033022000 WASHER 15X22X0,4WASHER 15X22X0,4
-
6945030009800 CYLINDER + PISTONCYLINDER + PISTON
-
7036333096000 CIRCLIP 14X1,2CIRCLIP 14X1,2
-
7145033023000 WASHER 16X25X0,5WASHER 16X25X0,5
-
720471160150 CIRCLIP DIN0471-16X1CIRCLIP DIN0471-16X1
-
730125050003 WASHER DIN0125-A 5,0WASHER DIN0125-A 5,0
-
7445030090000 SCREW M4X10SCREW M4X10
-
7545039093004 SPARK PLUG BOSCH W 4 ACSPARK PLUG BOSCH W 4 AC
-
7645039090000 SPARK PLUG CONNECTORSPARK PLUG CONNECTOR
-
770797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
7845030046800 EXHAUST GASKETEXHAUST GASKET
-
790912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
8036330056000 ANTI VIBRATION RUBBERANTI VIBRATION RUBBER
-
8145033024000 CIRCLIP 17,5X1,2CIRCLIP 17,5X1,2
-
8315130033000 PISTON PIN 8X12X31,4PISTON PIN 8X12X31,4
-
840912060603 AH SCREW DIN0921-M 6X60AH SCREW DIN0921-M 6X60
-
860912050203 AH SCREW DIN0912-M 5X20AH SCREW DIN0912-M 5X20
-
8815133032000 HH-NUT M12X1,25 6MM HIGHHH-NUT M12X1,25 6MM HIGH
-
8945033070000 STARTING LEVERSTARTING LEVER
-
9045030051800 REED VALVE HOUSING S5-GSREED VALVE HOUSING S5-GS
-
9145030057800 GASKET MEMBRAN HOUSINGGASKET MEMBRAN HOUSING
-
9216030057000 STUD BOLTM6X33-11/16STUD BOLTM6X33-11/16
-
930127060003 SPRING RING DIN0127-B 6SPRING RING DIN0127-B 6
-
9451010086000 SELF LOCKING NUT M 6 COPPERSELF LOCKING NUT M 6 COPPER
-
950934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
960015080163 HH COLLAR SCREW M 8X16 WS=10HH COLLAR SCREW M 8X16 WS=10
-
9745030054100 REED VALVE ELEMENT D=18,5MMREED VALVE ELEMENT D=18,5MM
-
9845030049900 INTAKE FLANGE GASKET D=22,5MMINTAKE FLANGE GASKET D=22,5MM
-
9945030099800 GASKET SET GASKETSGASKET SET GASKETS
-
9945030099100 GASKET SET SEAL RINGSGASKET SET SEAL RINGS
