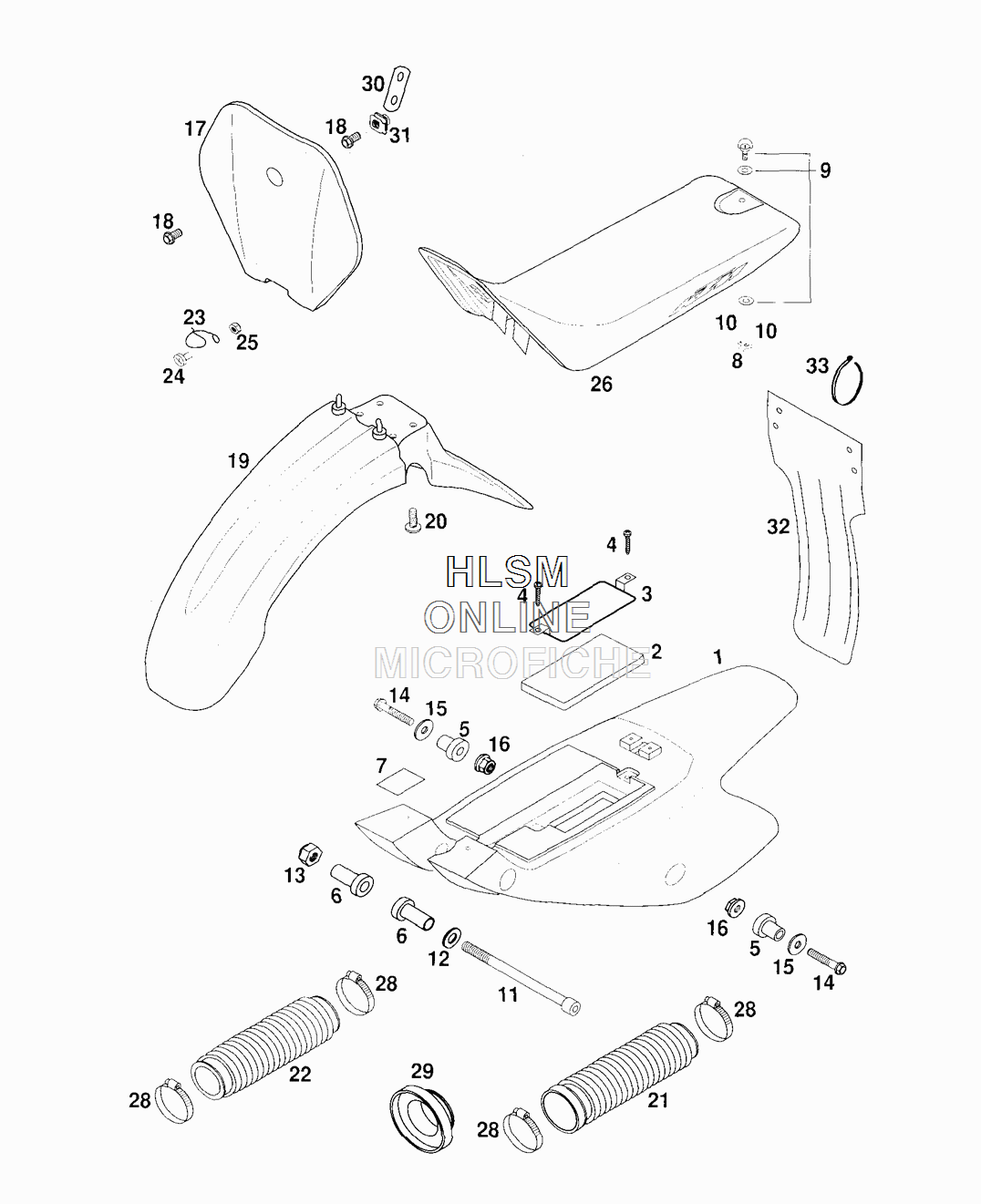

SEAT - FENDER - MASK для Ktm 50 Mini Adventure - 2000 года выпуска`
-
№АртикулНазвание
-
14500801310004 FENDER/FRAME END REARFENDER/FRAME END REAR
-
245006015000 AIRFILTER 120X58X15 MMAIRFILTER 120X58X15 MM
-
345006016000 FILTER FRAMEFILTER FRAME
-
40016050153 SPECIAL SCREW Z 5X15SPECIAL SCREW Z 5X15
-
545007013050 COLLAR BUSH L=21 MMCOLLAR BUSH L=21 MM
-
645007013051 COLLAR BUSH L=38,5 MMCOLLAR BUSH L=38,5 MM
-
754601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
845007040050 THRUST BEARING QUICK RELEASETHRUST BEARING QUICK RELEASE
-
945007040051 QUICK RELEASE CPL.QUICK RELEASE CPL.
-
100981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
110912081203 AH SCREW DIN0912-M 8X120AH SCREW DIN0912-M 8X120
-
120125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
130934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
140015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
150021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1656509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
174500800700004 NUMBER PLATENUMBER PLATE
-
180015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
194500801000004 FENDER FRONTFENDER FRONT
-
200014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
2145006026000 AIRFILT.BOOT-DELL ORTO 40/35MMAIRFILT.BOOT-DELL ORTO 40/35MM
-
2245006026100 AIRFILTER BOOT-MIKUNI 32/35 MMAIRFILTER BOOT-MIKUNI 32/35 MM
-
2358011008000 GUIDE FOR BRAKE HOSEGUIDE FOR BRAKE HOSE
-
240985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
250985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2645007040200 SEAT BLACKSEAT BLACK
-
2854305058000 HOSE CLAMP 30-45 SGTHOSE CLAMP 30-45 SGT
-
2845007027000 HOSE CLAMP 32-50MM W=5MMHOSE CLAMP 32-50MM W=5MM
-
2810001120000 CLAMP 25-40 SGT 4CLAMP 25-40 SGT 4
-
2949106826000 REDUCTION RING PVC 59/40 MMREDUCTION RING PVC 59/40 MM
-
3045008007050 BRACKETBRACKET
-
3150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3245006010000 SPLASH PROTECTORSPLASH PROTECTOR
-
3344011076305 CABLE TIE 290MMCABLE TIE 290MM
