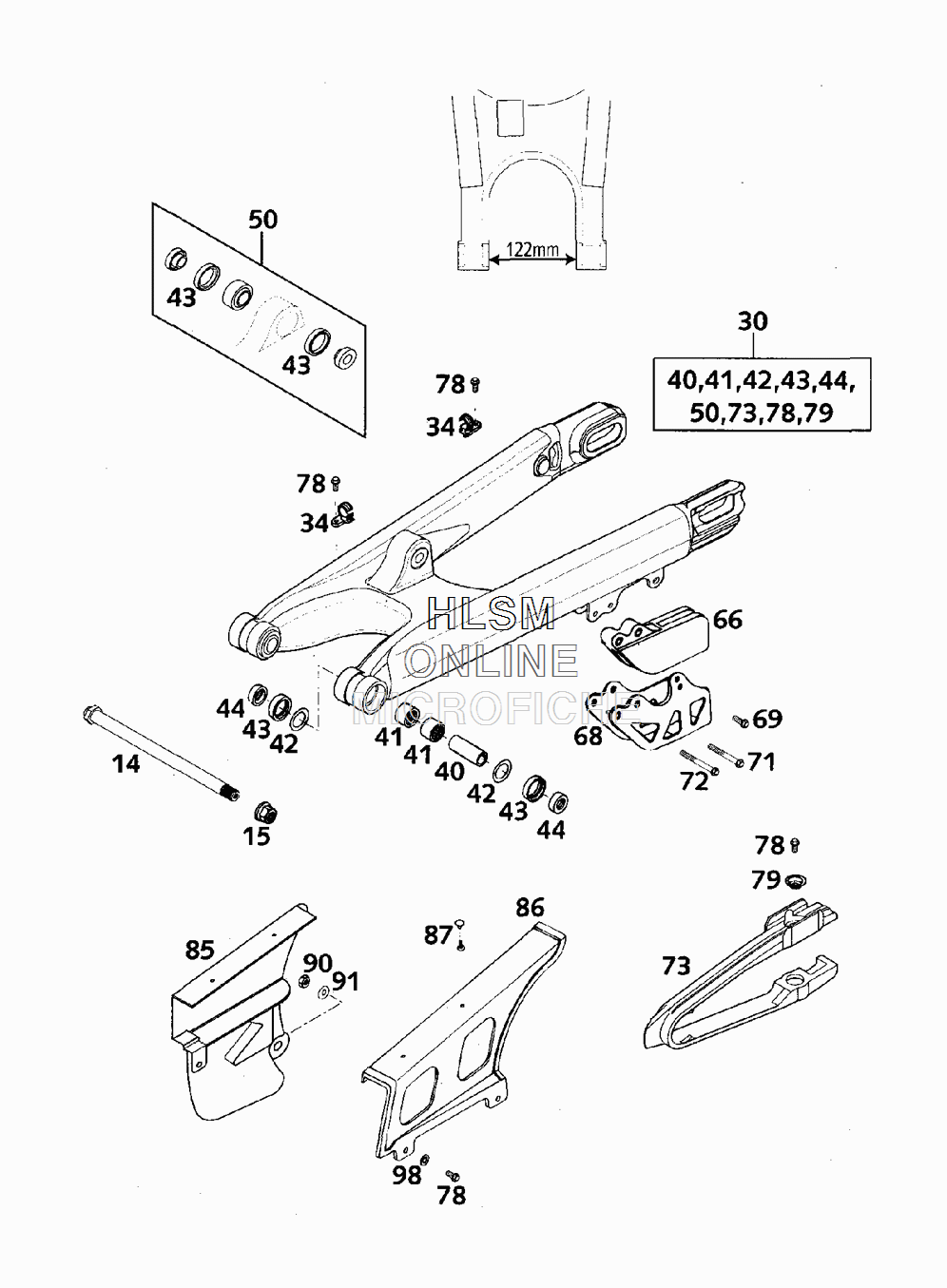

SWINGARM W/ CHAIN GUARD для Ktm 400 EXC Racing - 2000 года выпуска`
-
№АртикулНазвание
-
1450303014000 SWINGARM BOLT 14X252 WS=22SWINGARM BOLT 14X252 WS=22
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
3059004030144 SWINGARM CPL. PDS RACINGSWINGARM CPL. PDS RACING
-
3454611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
4050203081700 BEARING SLEEVE 15X20X38,7BEARING SLEEVE 15X20X38,7
-
4150203097000 NEEDLE BUSH HK 2012NEEDLE BUSH HK 2012
-
4259004033000 STOP DISK 22,2X31,7X0,8STOP DISK 22,2X31,7X0,8
-
430760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
4454603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
5050304090044 HEIM JOINT BUSHES PDSHEIM JOINT BUSHES PDS
-
6654607066100 CHAIN GUIDE REARCHAIN GUIDE REAR
-
6854607070100 RETAINING PLATERETAINING PLATE
-
690015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
710015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
720015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
7350304066000 CHAIN GUARDCHAIN GUARD
-
780009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
7972210079000 BUCKETBUCKET
-
8550304060100 CHAIN GUARD SMALLCHAIN GUARD SMALL
-
8720012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
900985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
910021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
980021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
