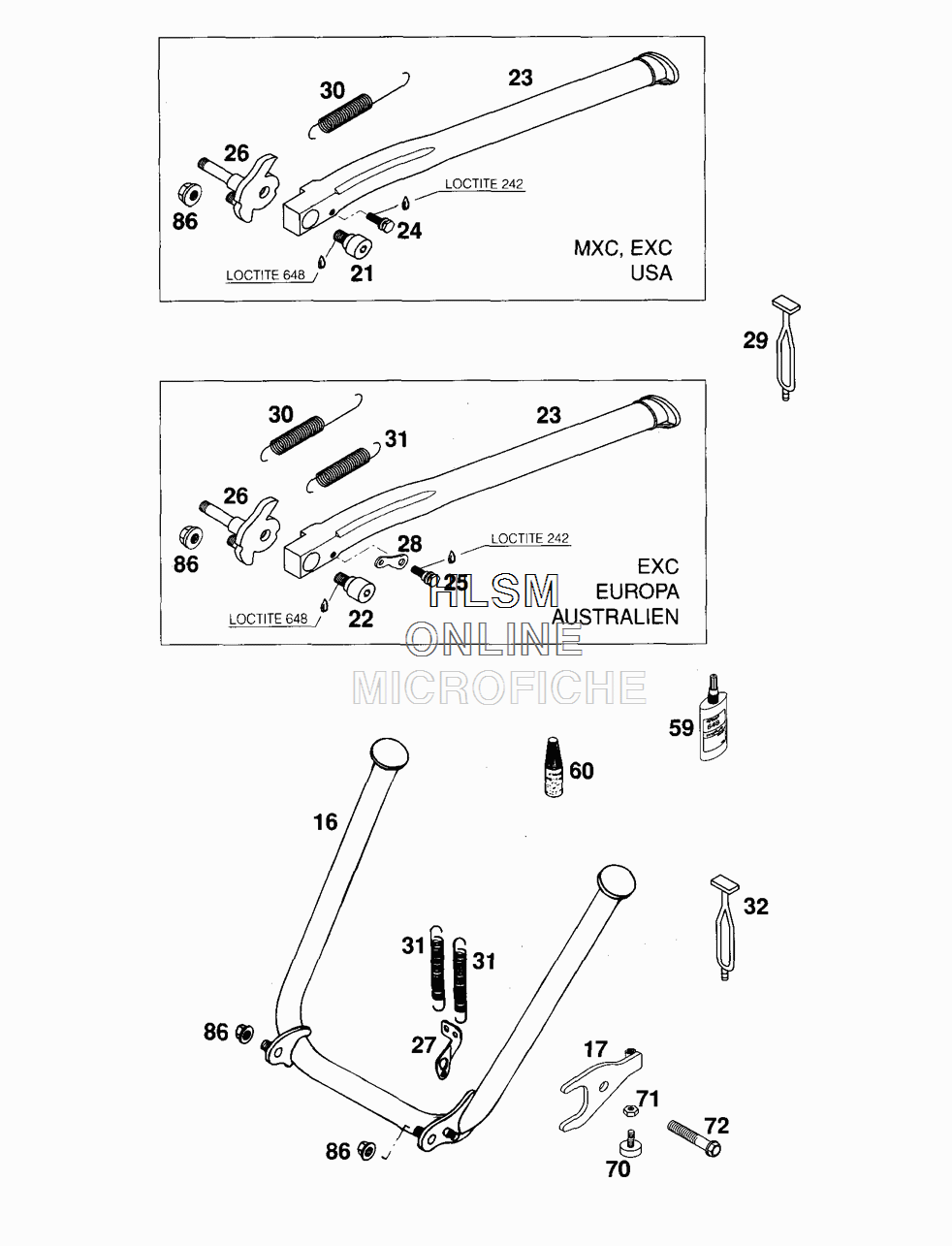

SIDE AND CENTER STAND для Ktm 300 MXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 16
    50303016000 CENTERSTAND L=438MM 2STROKE
    CENTERSTAND L=438MM 2STROKE
  • 17
    50303017000 BRACKET FOR CENTER STAND
    BRACKET FOR CENTER STAND
  • 23
    50303023000 SIDE STAND L=377MM
    SIDE STAND L=377MM
  • 26
    50303026000 SIDE ST.BRACKET CPL.
    SIDE ST.BRACKET CPL.
  • 27
    54603027000 SPRING HANGER
    SPRING HANGER
  • 29
    50303025000 RUBBER FOR SIDE STAND
    RUBBER FOR SIDE STAND
  • 31
    10003021000 STAND SPRING SHORT
    STAND SPRING SHORT
  • 32
    50303018000 RUBBER FOR CENTER STAND
    RUBBER FOR CENTER STAND
  • 59
    58429059000 LOC FILE 648 20ML (GREEN)
    LOC FILE 648 20ML (GREEN)
  • 60
    6899785 LOCTITE 242 6CCM (BLUE)
    LOCTITE 242 6CCM (BLUE)
  • 70
    58303070000 STOP RUBBER MS
    STOP RUBBER MS
  • 71
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 72
    0015080403 HH COLLAR SCREW M 8X40 WS=10
    HH COLLAR SCREW M 8X40 WS=10
  • 86
    54310086000 SELF LOCKING NUT M8
    SELF LOCKING NUT M8
