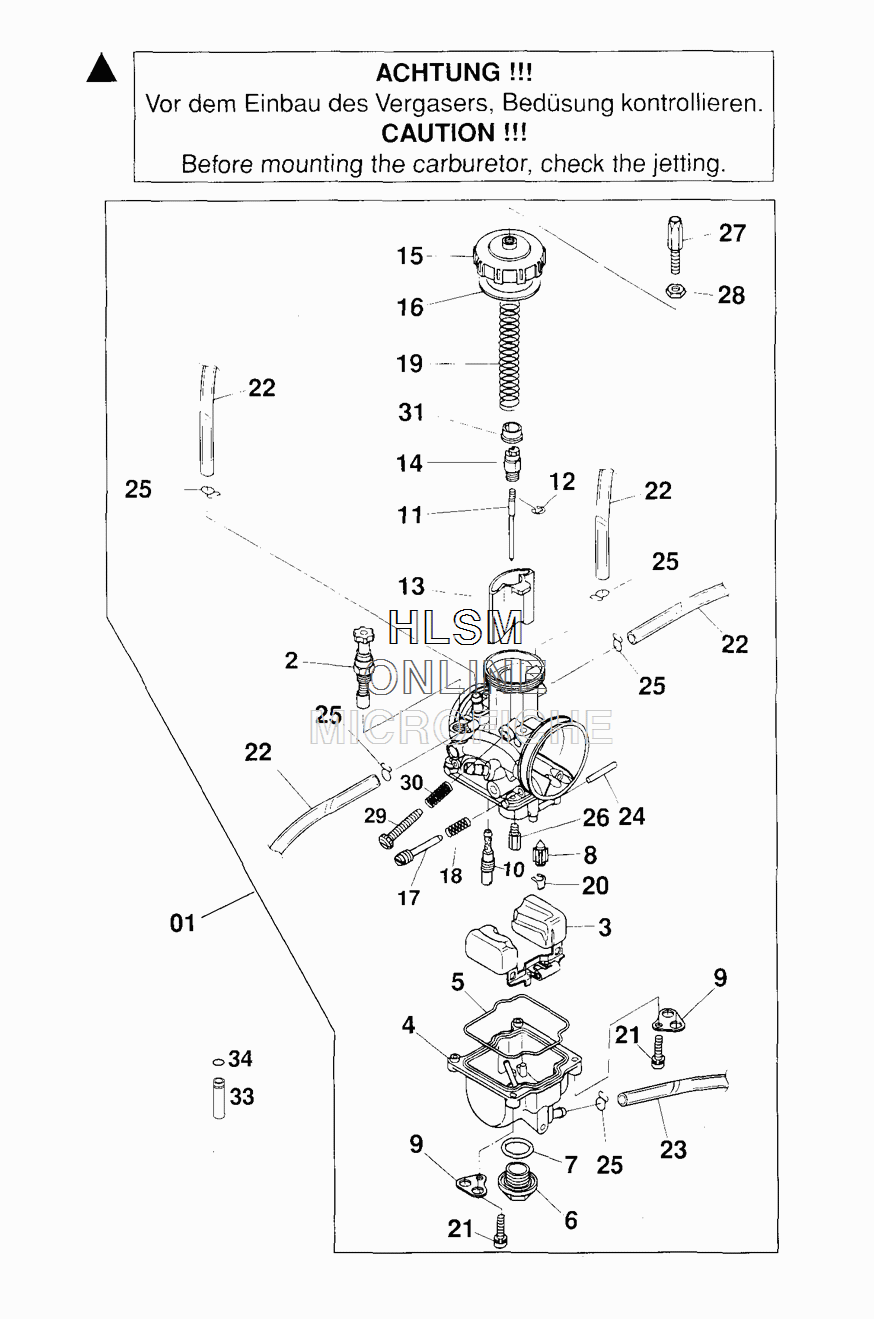

CARBURETOR (PWK 38 AG) для Ktm 250 MXC - 2000 года выпуска
-
№АртикулНазвание
-
0150331001344 CARBURETOR (KEIHIN PWK 38 AG)CARBURETOR (KEIHIN PWK 38 AG)
-
254631245000 STARTER PISTON CPL.STARTER PISTON CPL.
-
354631209000 FLOAT R-39FLOAT R-39
-
454631211000 FLOAT CHAMBERFLOAT CHAMBER
-
554531610000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
654531699000 PLUG M18X1 KEIHINPLUG M18X1 KEIHIN
-
70770180230 O-RING 18,00X2,30 NBR 70O-RING 18,00X2,30 NBR 70
-
854631220000 FLOAT NEEDLEFLOAT NEEDLE
-
954531612100 RETAINING PLATE FOR BLEEDERRETAINING PLATE FOR BLEEDER
-
1054531607035 IDLE JET 35 KEIHINIDLE JET 35 KEIHIN
-
1054531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
1054531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
1054531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
1054531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
1054531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
1054531607050 IDLE JET 50 KEIHINIDLE JET 50 KEIHIN
-
1054531607052 IDLE JET 52 KEIHINIDLE JET 52 KEIHIN
-
1054531607055 IDLE JET 55 KEIHINIDLE JET 55 KEIHIN
-
1054531607058 IDLE JET 58 KEIHINIDLE JET 58 KEIHIN
-
1054531607060 IDLE JET 60 KEIHINIDLE JET 60 KEIHIN
-
1054531607062 IDLE JET 62 KEIHINIDLE JET 62 KEIHIN
-
1054531607065 IDLE JET 65 KEIHINIDLE JET 65 KEIHIN
-
1054531607070 IDLE JET 70 KEIHINIDLE JET 70 KEIHIN
-
1054531607075 IDLE JET 75 KEIHINIDLE JET 75 KEIHIN
-
1054531607080 IDLE JET 80 KEIHINIDLE JET 80 KEIHIN
-
1154531636004 JET NEEDLE NOZ D KEIHINJET NEEDLE NOZ D KEIHIN
-
1154531636005 JET NEEDLE NOZ E KEIHINJET NEEDLE NOZ E KEIHIN
-
1154531636006 JET NEEDLE NOZ F KEIHINJET NEEDLE NOZ F KEIHIN
-
1154531636007 JET NEEDLE NOZ G KEIHINJET NEEDLE NOZ G KEIHIN
-
1154531636008 JET NEEDLE NOZ H KEIHINJET NEEDLE NOZ H KEIHIN
-
1154531636009 JET NEEDLE NOZ I KEIHINJET NEEDLE NOZ I KEIHIN
-
1154531634175 JET NEEDLE R 1475 J KEIHINJET NEEDLE R 1475 J KEIHIN
-
1254531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
1354631235006 THROTTLE VALVE 6 KEIHINTHROTTLE VALVE 6 KEIHIN
-
1454631232000 NIPPLENIPPLE
-
1554631227000 CARBURETOR COVERCARBURETOR COVER
-
1654531628000 RUBBER SEAL RING 40X46X1RUBBER SEAL RING 40X46X1
-
1754531617000 ADJUSTMENT SCREWADJUSTMENT SCREW
-
1854531615000 SPRING FOR ADJUSTMENT SCREWSPRING FOR ADJUSTMENT SCREW
-
1954631230000 SLIDING SPRINGSLIDING SPRING
-
2054531621000 CLAMPCLAMP
-
210016040163 HH COLLAR SCREW M4X16 WS=6HH COLLAR SCREW M4X16 WS=6
-
2231007007101 BREATHER HOSE 4 X 6 MMBREATHER HOSE 4 X 6 MM
-
2352031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
2454531608000 STUD 2,5X25STUD 2,5X25
-
2554531696000 CLAMP 6 MMCLAMP 6 MM
-
2654531623150 MAIN JET 150 KEIHINMAIN JET 150 KEIHIN
-
2654531623158 MAIN JET 158 KEIHINMAIN JET 158 KEIHIN
-
2654531623160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
2654531623165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
2654531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2654531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2654531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2654531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2654531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2654531623182 MAIN JET 182 KEIHINMAIN JET 182 KEIHIN
-
2654531623185 MAIN JET 185 KEIHINMAIN JET 185 KEIHIN
-
2654531623188 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2654531623190 MAIN JET 190 KEIHINMAIN JET 190 KEIHIN
-
2654531623192 MAIN JET 192 KEIHINMAIN JET 192 KEIHIN
-
2654531623195 MAIN JET 195 KEIHINMAIN JET 195 KEIHIN
-
2754531625000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
2852031126000 HEXAGON NUT M6X0,75 DIN0439HEXAGON NUT M6X0,75 DIN0439
-
2954631219100 ADJUSTMENT SCREW M5ADJUSTMENT SCREW M5
-
3054631118000 SPRINGSPRING
-
3154631231000 SPRING CAPSPRING CAP
-
3350331029034 SLIDE STOP L=34MMSLIDE STOP L=34MM
-
340770060018 O-RING 6,00X1,78O-RING 6,00X1,78
