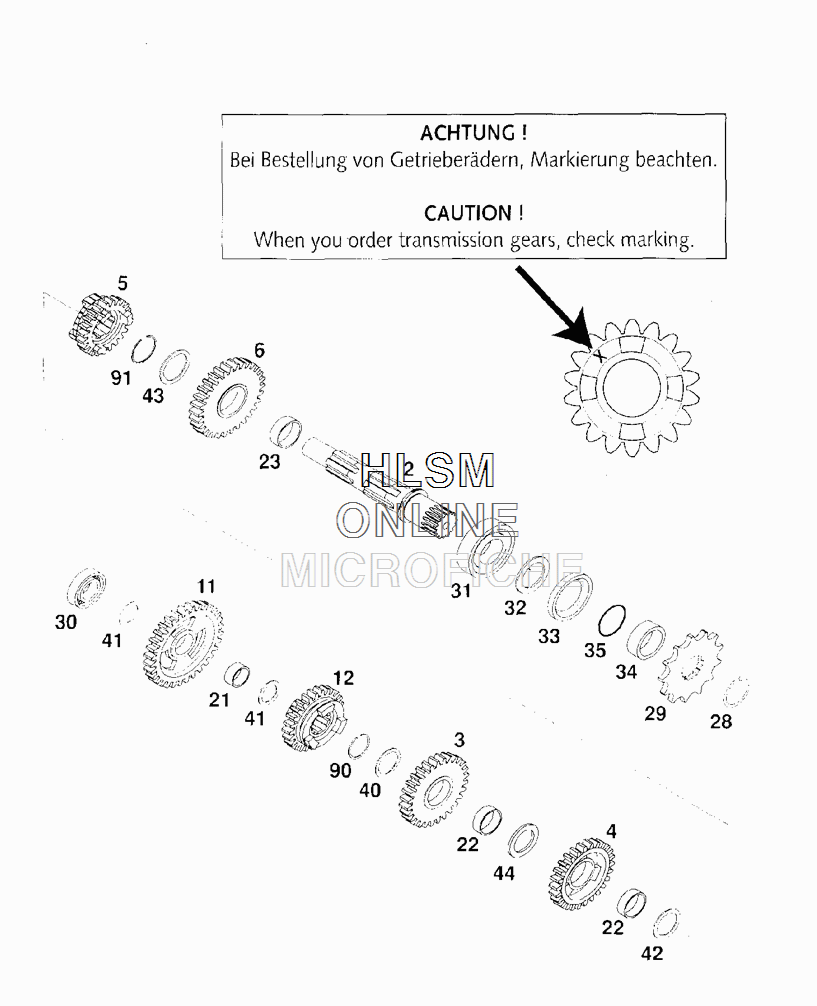

TRANSMISSION - COUNTER SHAFT для Ktm 125 EXC - 2000 года выпуска
-
№АртикулНазвание
-
250333002000 COUNTER SHAFTCOUNTER SHAFT
-
350333003000 IDLE G.3RD G.28, T "3528"IDLE G.3RD G.28, T "3528"
-
450333004000 IDLE G.4TH G.26, T "4526"IDLE G.4TH G.26, T "4526"
-
550333005000 SLIDING G.6TH G.24, T "6S24"SLIDING G.6TH G.24, T "6S24"
-
550333005100 SLIDING G.6TH G.20, T "6G20"SLIDING G.6TH G.20, T "6G20"
-
550333005200 SLIDING G.6TH G.23, T "6523"SLIDING G.6TH G.23, T "6523"
-
550333005300 SLIDING G.6TH G.20, T "6E20"SLIDING G.6TH G.20, T "6E20"
-
650333006000 IDLER G. 2ND G. 30, T "2530"IDLER G. 2ND G. 30, T "2530"
-
650333006100 IDLER G. 2ND G. 31, T "2G31"IDLER G. 2ND G. 31, T "2G31"
-
1150333011000 IDLER G. 1ST G. 32, "T1532"IDLER G. 1ST G. 32, "T1532"
-
1150333011300 IDLER G. 1ST G. 33, "T1G33"IDLER G. 1ST G. 33, "T1G33"
-
1250333012000 SLIDING G.5TH G.25, "T5525"SLIDING G.5TH G.25, "T5525"
-
1252333012000 SLIDING G.5TH G.19, "T5G19"SLIDING G.5TH G.19, "T5G19"
-
2150333021000 IDLER GEAR BUSHING 17X20X9, 7 BIDLER GEAR BUSHING 17X20X9, 7 B
-
2250333022000 IDLER GEAR BUSHING 22X25X8, 1 CIDLER GEAR BUSHING 22X25X8, 1 C
-
2350333023000 IDLER GEAR BUSHING 25X28X9, 7 DIDLER GEAR BUSHING 25X28X9, 7 D
-
2852033096000 LOCK RING DIN0471, 25X1, 64SDLOCK RING DIN0471, 25X1, 64SD
-
2950033029013 SPROCKET 13, TSPROCKET 13, T
-
2950033029014 SPROCKET 14, TSPROCKET 14, T
-
2950033029015 SPROCKET 15, TSPROCKET 15, T
-
300625060031 BALL BEARING 6003 TNH C3BALL BEARING 6003 TNH C3
-
310625062058 BALL BEARING 6205 TN9.C3BALL BEARING 6205 TN9.C3
-
3256033020000 STOP RINGSTOP RING
-
330760324565 SHAFT SEAL RING 32X45X6, 5 BTSLSHAFT SEAL RING 32X45X6, 5 BTSL
-
3454633014100 SPACER BUSHING 12 MMSPACER BUSHING 12 MM
-
350770020220 O-RING 25, 12X1, 78 NBR70O-RING 25, 12X1, 78 NBR70
-
4050333040000 STOP DISC 22, 2X27, 8X1 ASTOP DISC 22, 2X27, 8X1 A
-
4150333041000 STOP DISC 17, 2X26X1 BSTOP DISC 17, 2X26X1 B
-
4250333042000 STOP DISK 22, 2X28X1 CSTOP DISK 22, 2X28X1 C
-
4350333043000 STOP DISC 25, 2X32X1STOP DISC 25, 2X32X1
-
4450333044000 STOP DISC 22, 2X30X2, 5STOP DISC 22, 2X30X2, 5
-
9050133090000 LOCK RING 22X1, 2LOCK RING 22X1, 2
-
9152033090100 LOCK RING 25X1, 2LOCK RING 25X1, 2
