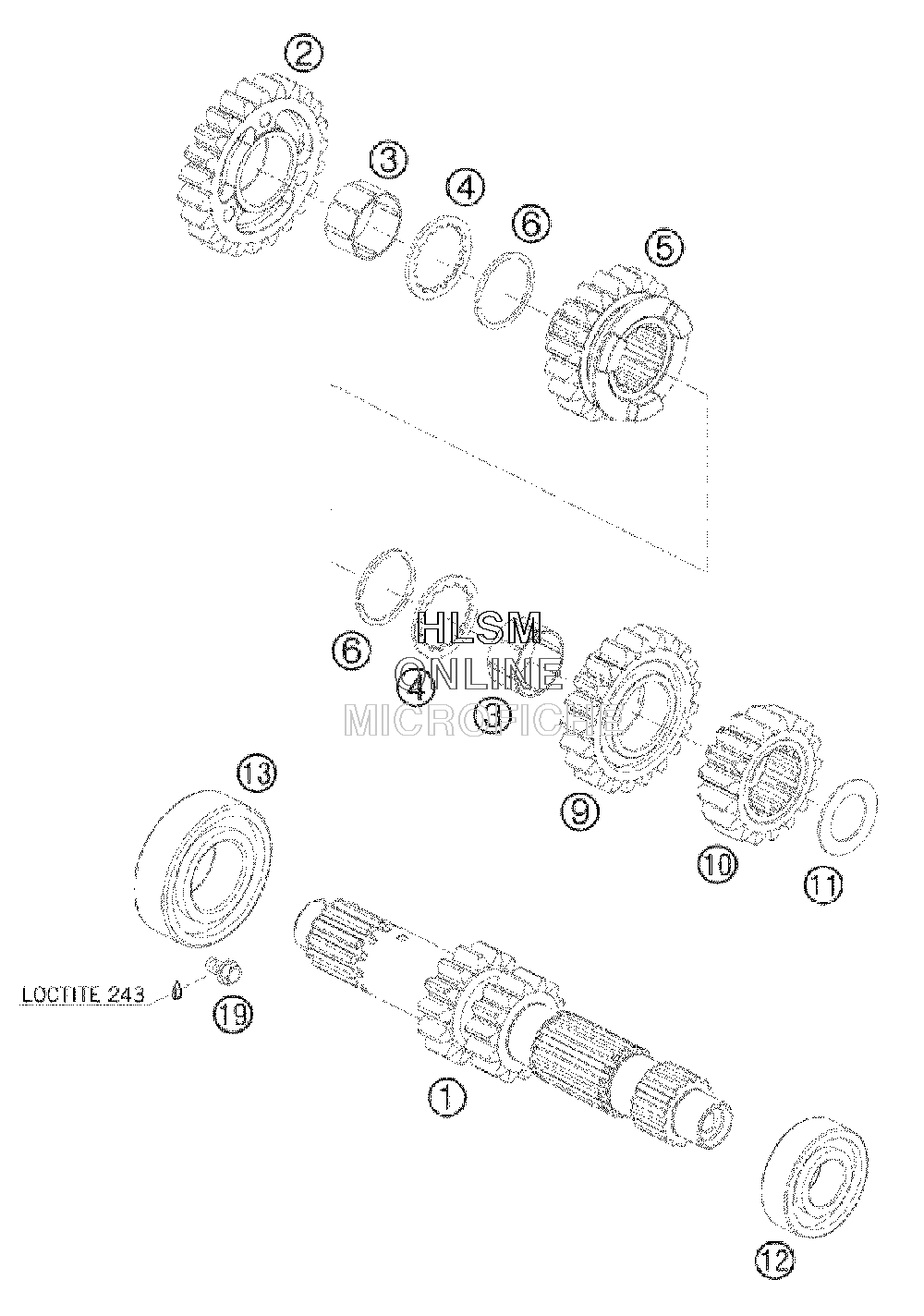

TRANSMISSION - MAIN SHAFT для Ktm 450 XC - 2009 года выпуска`
-
№АртикулНазвание
-
183033001100 MAIN SHAFT 14TMAIN SHAFT 14T
-
283033005000 IDLER GEAR 5.G 23TIDLER GEAR 5.G 23T
-
383033043000 NEEDLE BEAR. 21X25X13 SLOTTEDNEEDLE BEAR. 21X25X13 SLOTTED
-
483033023000 STOP DISK 22,6X30X1,5 15TSTOP DISK 22,6X30X1,5 15T
-
583033003000 SLIDING GEAR 3. G. 19TSLIDING GEAR 3. G. 19T
-
60417025000 CIRCLIP SW25CIRCLIP SW25
-
983033004000 IDLER GEAR 4.G 21TIDLER GEAR 4.G 21T
-
1083033002000 SOLID GEAR 2.G 17TSOLID GEAR 2.G 17T
-
1183033024000 STOP DISK 17,2X27,7,X1STOP DISK 17,2X27,7,X1
-
120625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
130625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
190025060086 HH COLLAR SCREW M6X8HH COLLAR SCREW M6X8
