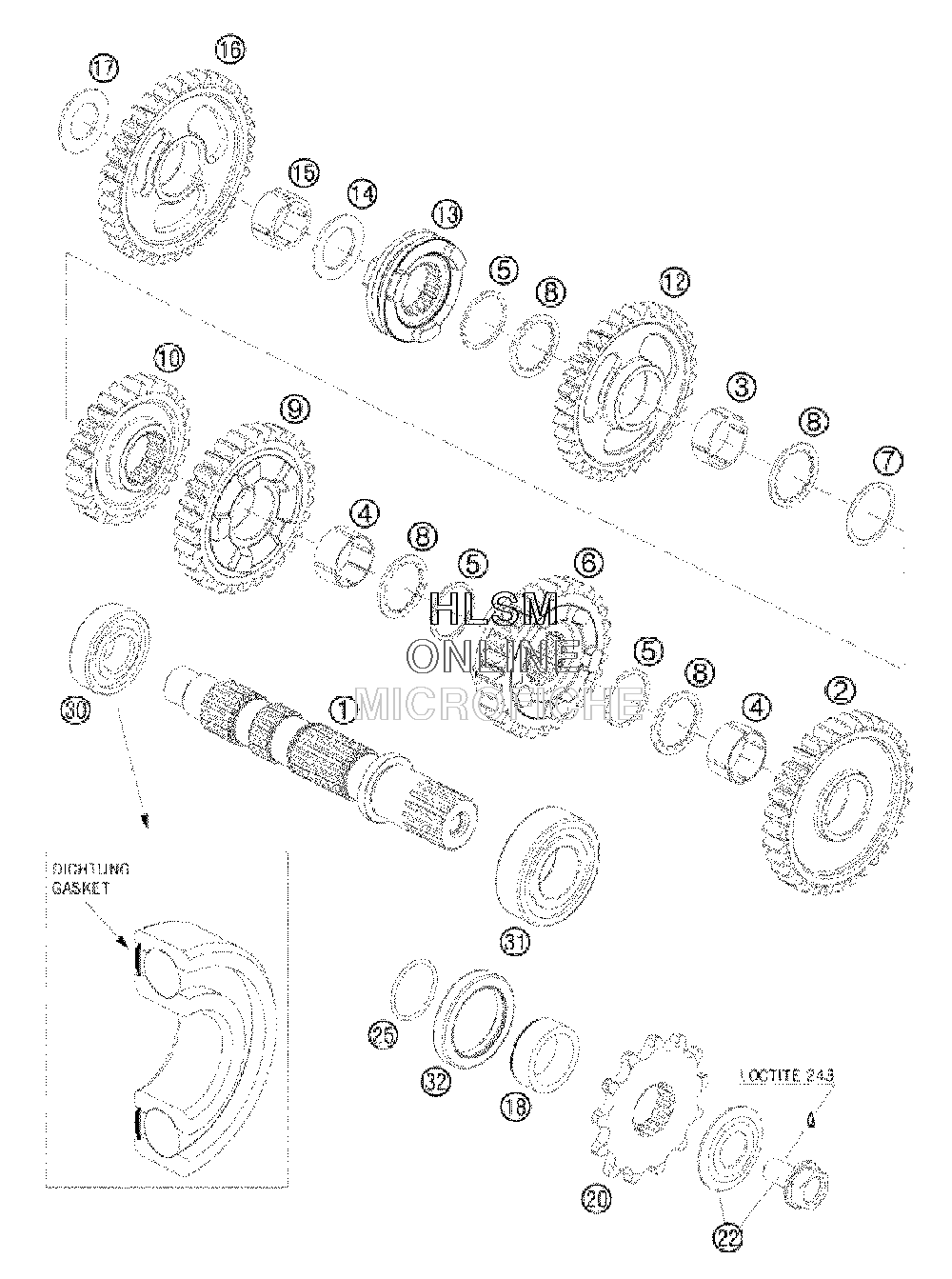

TRANSMISSION - COUNTERSHAFT для Ktm 450 XC - 2009 года выпуска`

№

Артикул

Название
1

83133010000 COUNTERSHAFT

COUNTERSHAFT

33 530 ₽
2

83033012000 IDLER GEAR 2.G. 33T

IDLER GEAR 2.G. 33T

16 500 ₽
3

83033042000 NEEDLE BEAR. 22X26X10 SLOTTED

NEEDLE BEAR. 22X26X10 SLOTTED

1 380 ₽
4

83033041000 NEEDLE BEAR. 22X26X13 SLOTTED

NEEDLE BEAR. 22X26X13 SLOTTED

1 460 ₽
5

0417025000 CIRCLIP SW25

CIRCLIP SW25

790 ₽
6

83033014000 SLIDING GEAR 4. G. 28T

SLIDING GEAR 4. G. 28T

14 750 ₽
7

83033032000 DISTANCE DISK 25X30X0,2

DISTANCE DISK 25X30X0,2

530 ₽
7

83033033000 DISTANCE DISK 25X30X0,3

DISTANCE DISK 25X30X0,3

590 ₽
8

83033022000 STOP DISK 22,6X30X1,5 18T

STOP DISK 22,6X30X1,5 18T

700 ₽
9

83033013000 IDLER GEAR 3.G. 30T

IDLER GEAR 3.G. 30T

14 780 ₽
10

83033015100 SOLID GEAR 5.G. 26T

SOLID GEAR 5.G. 26T

15 600 ₽
12

83033018100 IDLER GEAR REVERSE-GEAR

IDLER GEAR REVERSE-GEAR

16 040 ₽
13

83033017000 SLIDING SLEEVE REVERSE-GEAR

SLIDING SLEEVE REVERSE-GEAR

13 060 ₽
14

83033025000 STOP DISK 20,2X31,X1,5

STOP DISK 20,2X31,X1,5

920 ₽
15

83033044000 NEEDLE BEAR. 22X26X12

NEEDLE BEAR. 22X26X12

2 200 ₽
16

83033011000 IDLER GEAR 1.G. 35T

IDLER GEAR 1.G. 35T

17 760 ₽
17

49032012000 STOP DISK 17,2X30X1,5

STOP DISK 17,2X30X1,5

970 ₽
18

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
20

50033029013 SPROCKET 13-T

SPROCKET 13-T

8 110 ₽
20

50033029014 SPROCKET 14-T

SPROCKET 14-T

8 110 ₽
20

50033029015 SPROCKET 15-T

SPROCKET 15-T

7 100 ₽
22

59033034044 SCREW+SPRING WASHER

SCREW+SPRING WASHER

2 050 ₽
25

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
30

0625062036 BALL BEARING 6203 RSH C3

BALL BEARING 6203 RSH C3

4 350 ₽
31

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
32

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
