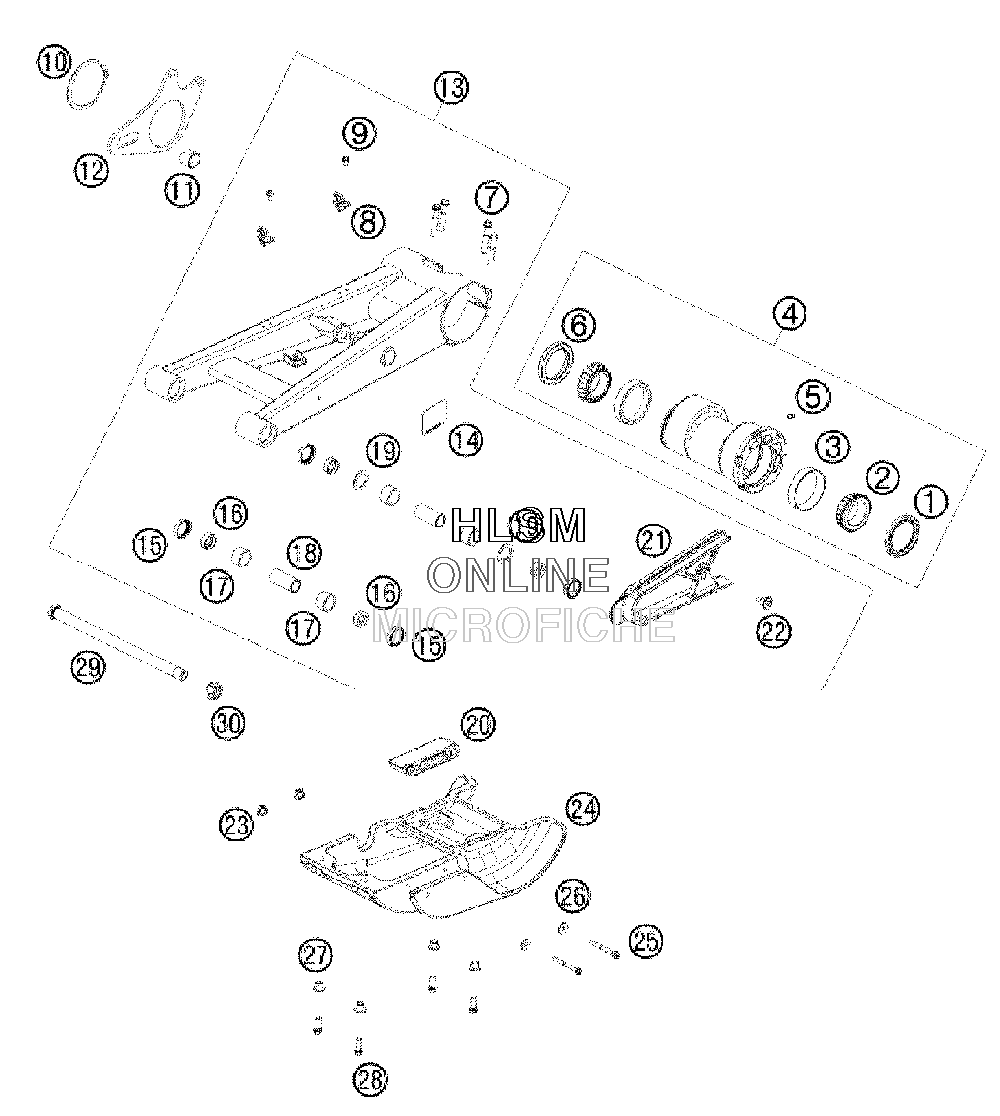

SUSPENSION - SWING ARM для Ktm 450 XC - 2009 года выпуска`
-
№АртикулНазвание
-
183010040053 SHAFT SEAL RING 2''X2,75''X0,25''SHAFT SEAL RING 2''X2,75''X0,25''
-
283010040051 INNER RING 32008INNER RING 32008
-
383010040050 OUTER RING 32008OUTER RING 32008
-
483010040033 REAR WHEEL EXCENTRIC CPL.REAR WHEEL EXCENTRIC CPL.
-
572003035000 GREASE FITTING M6 STRAIGHTGREASE FITTING M6 STRAIGHT
-
683010040052 SHAFT SEAL RING 2''X2,75''X0,313SHAFT SEAL RING 2''X2,75''X0,313
-
70025080456 HH COLLAR SCREW M8X45HH COLLAR SCREW M8X45
-
85461107610030 RET. CLAMP F. BRAKE HOSE BLACKRET. CLAMP F. BRAKE HOSE BLACK
-
90009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
100471780250 CIRCLIP DIN 471 78X2,5CIRCLIP DIN 471 78X2,5
-
1183013052000 BRAKE THRUST BEARINGBRAKE THRUST BEARING
-
1283013046100 BRAKE CALIPER SUPPORT PLATEBRAKE CALIPER SUPPORT PLATE
-
1383004030044 SWING ARM CPL.SWING ARM CPL.
-
1483004030090 STICKER FOR CHAIN TENSIONSTICKER FOR CHAIN TENSION
-
150760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1654804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
1758033097000 NEEDLE BEARING HK 2216NEEDLE BEARING HK 2216
-
1854804032000 BUSHING SLEEVE F. SWING ARMBUSHING SLEEVE F. SWING ARM
-
1954603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
2083004070000 CHAIN GUIDECHAIN GUIDE
-
2183004066000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
2260035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
2383004046060 DRIVE-IN NUT FOR GUARDDRIVE-IN NUT FOR GUARD
-
2483004046000 ASM-GUARDASM-GUARD
-
250025060556 HH COLLAR SCREW M6X55HH COLLAR SCREW M6X55
-
260021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2783004046050 BUSHING F. SWINGPROTECTIONBUSHING F. SWINGPROTECTION
-
280025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
2983004037000 SWING ARM BOLTSWING ARM BOLT
-
3054804038000 SELF LOCK.NUT M16X1,5 WS=19SELF LOCK.NUT M16X1,5 WS=19
