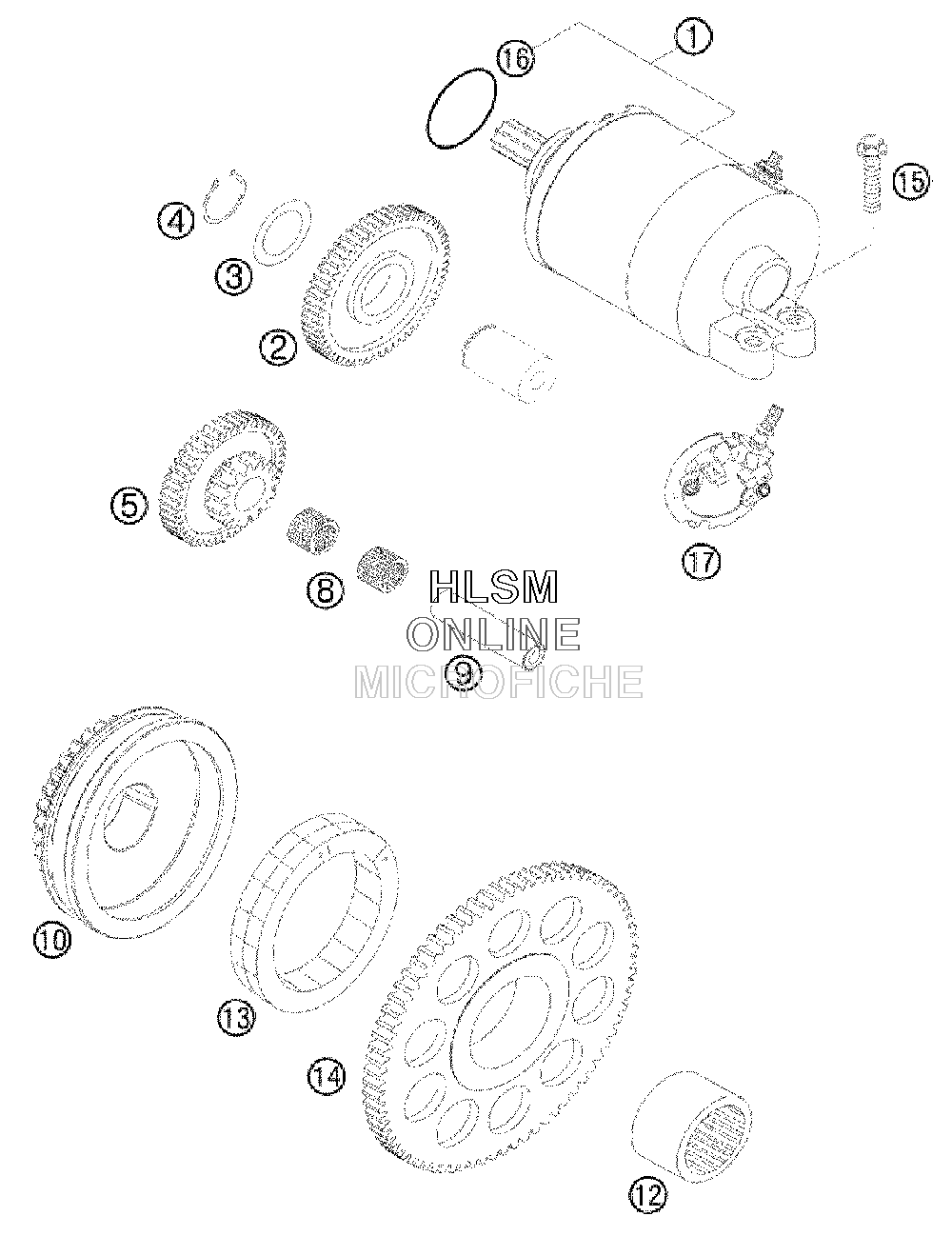

ELECTRIC STARTER для Ktm 450 XC - 2009 года выпуска`
-
№АртикулНазвание
-
159040001000 E-STARTER ENGINE KPL. 0,45 KWE-STARTER ENGINE KPL. 0,45 KW
-
259040022258 GEAR WHEELGEAR WHEEL
-
354633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
40471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
559040016000 TORQUE LIMITERTORQUE LIMITER
-
80405101310 NEEDLE BEARING K 10X13X10NEEDLE BEARING K 10X13X10
-
959040029000 BEARING BOLTBEARING BOLT
-
1083032022031 PRIMARY GEAR 31T CPL.PRIMARY GEAR 31T CPL.
-
120618301617 NEEDLE BEARING HK 3016 BNEEDLE BEARING HK 3016 B
-
1358440026000 FREE-WHEEL FWD 332008 BLSFREE-WHEEL FWD 332008 BLS
-
1459040020175 FREEWHEEL GEARFREEWHEEL GEAR
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
1778040002000 BRUSH HOLDER F. STARTERBRUSH HOLDER F. STARTER
