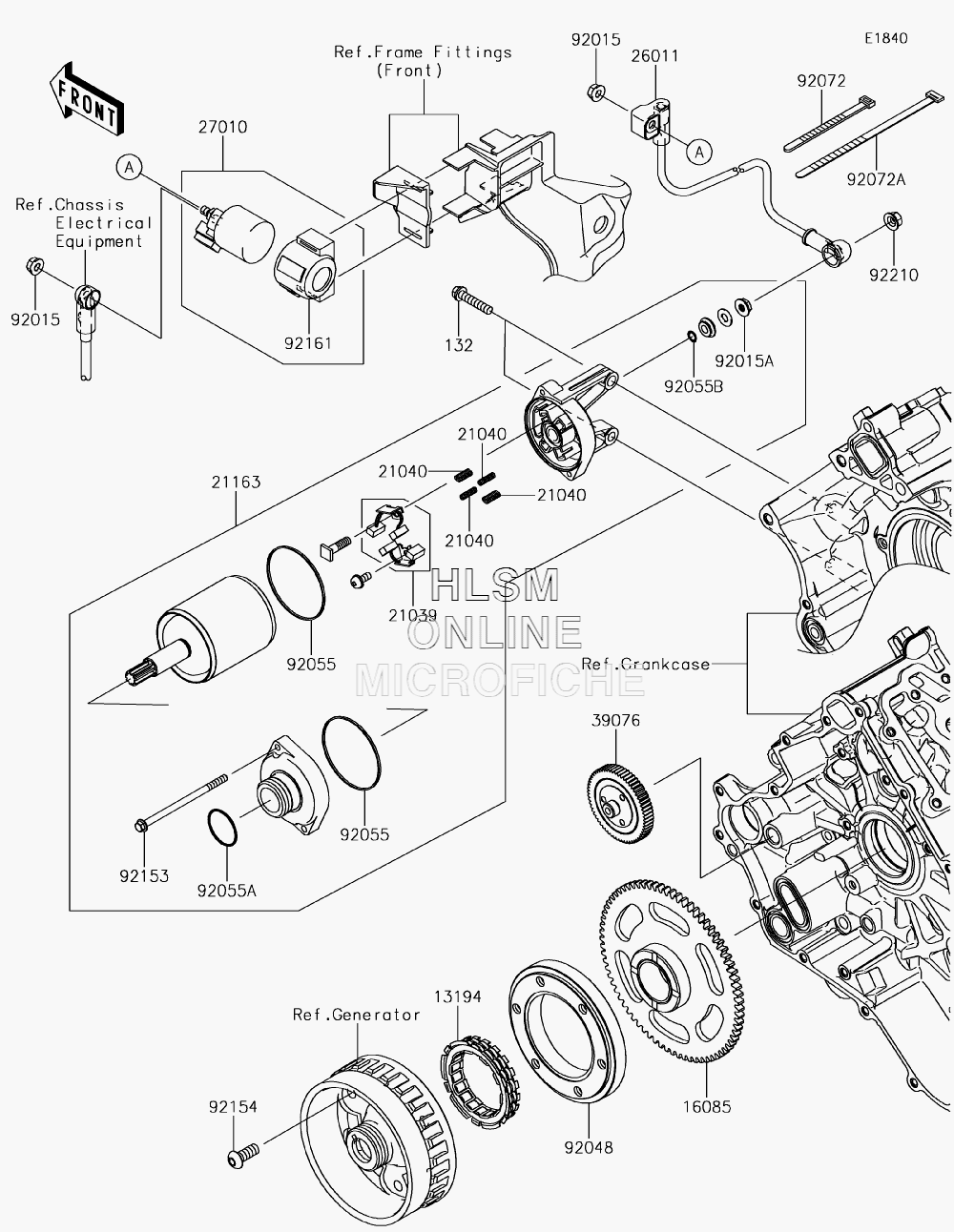

STARTER MOTOR для Kawasaki TERYX4 LE (KRT800GKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1319413194-1094 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
1608516085-0591 GEAR, STARTERGEAR, STARTER
-
2103921039-0004 BRUSH, CARBONBRUSH, CARBON
-
2104021040-0003 SPRING-BRUSHSPRING-BRUSH
-
2116321163-0037 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-0901 WIRE-LEADWIRE-LEAD
-
2701027010-0766 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-0555 LIMITER, STARTERLIMITER, STARTER
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9204892048-0553 RACE, ONEWAY CLUTCHRACE, ONEWAY CLUTCH
-
9205592055-0136 RING-ORING-O
-
92055A92055-1276 RING-ORING-O
-
92055B92055-1370 RING-O, 4.5X2.0RING-O, 4.5X2.0
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-056 BAND, L=186BAND, L=186
-
9215392153-1850 BOLTBOLT
-
9215492154-0421 BOLT, TORX, 8X20BOLT, TORX, 8X20
-
9216192161-1722 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
9221092210-0188 NUT, 6MMNUT, 6MM
