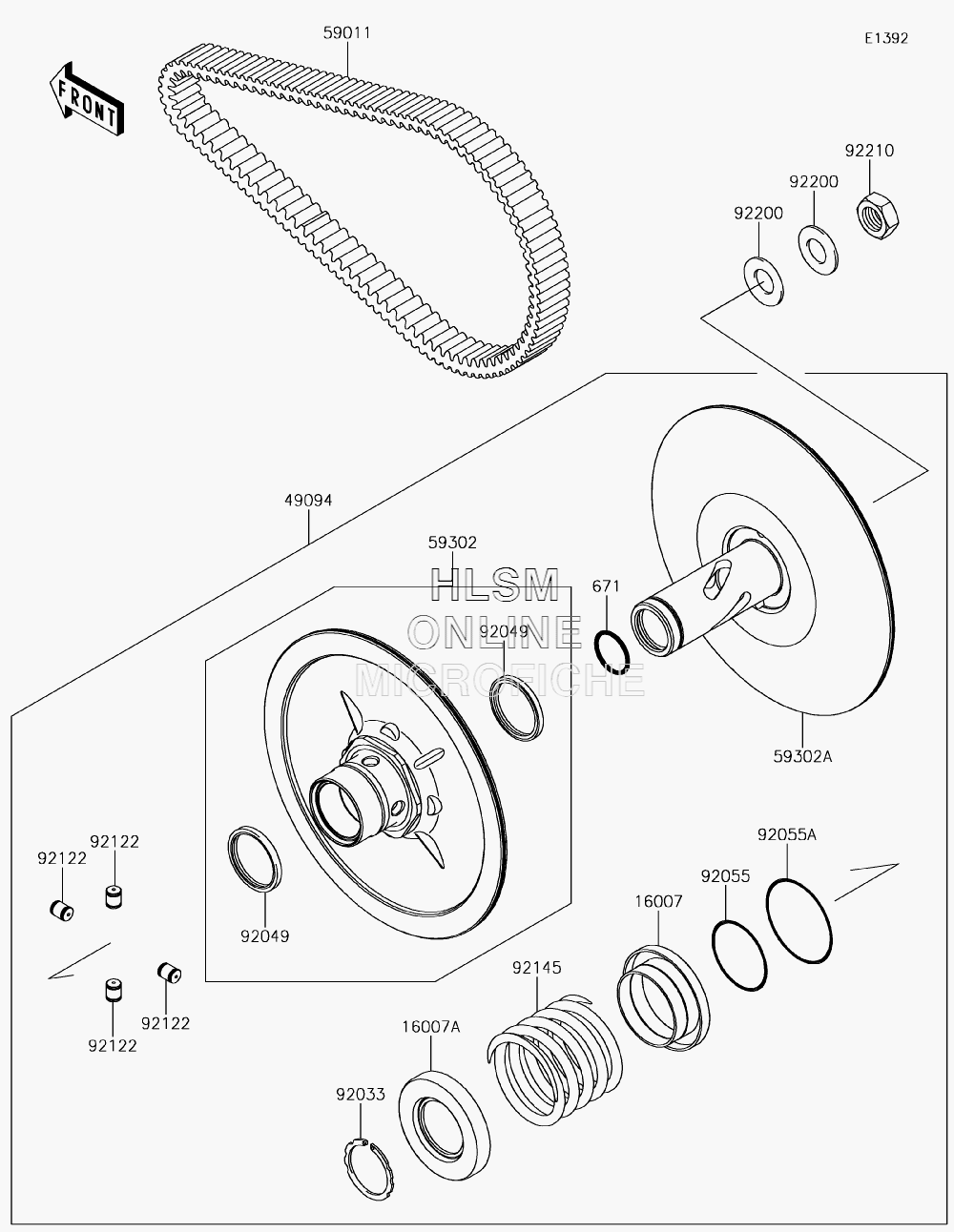

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki TERYX4 CAMO (KRT800HKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1600716007-0049 SEAT-SPRING, MOVABLESEAT-SPRING, MOVABLE
-
16007A16007-0050 SEAT-SPRING, FIXEDSEAT-SPRING, FIXED
-
4909449094-0093 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0043 BELT, CVTBELT, CVT
-
5930259302-0089 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302A59302-0090 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
671671D2530 O RINGO RING
-
9203392033-1317 RING-SNAPRING-SNAP
-
9204992049-1528 SEAL-OILSEAL-OIL
-
9205592055-0752 RING-O, 46.4X3.1RING-O, 46.4X3.1
-
92055A92055-0753 RING-O, 59.5X2.4RING-O, 59.5X2.4
-
9212292122-0043 ROLLERROLLER
-
9214592145-0959 SPRINGSPRING
-
9220092200-1505 WASHERWASHER
-
9221092210-0821 NUT, 18MMNUT, 18MM
