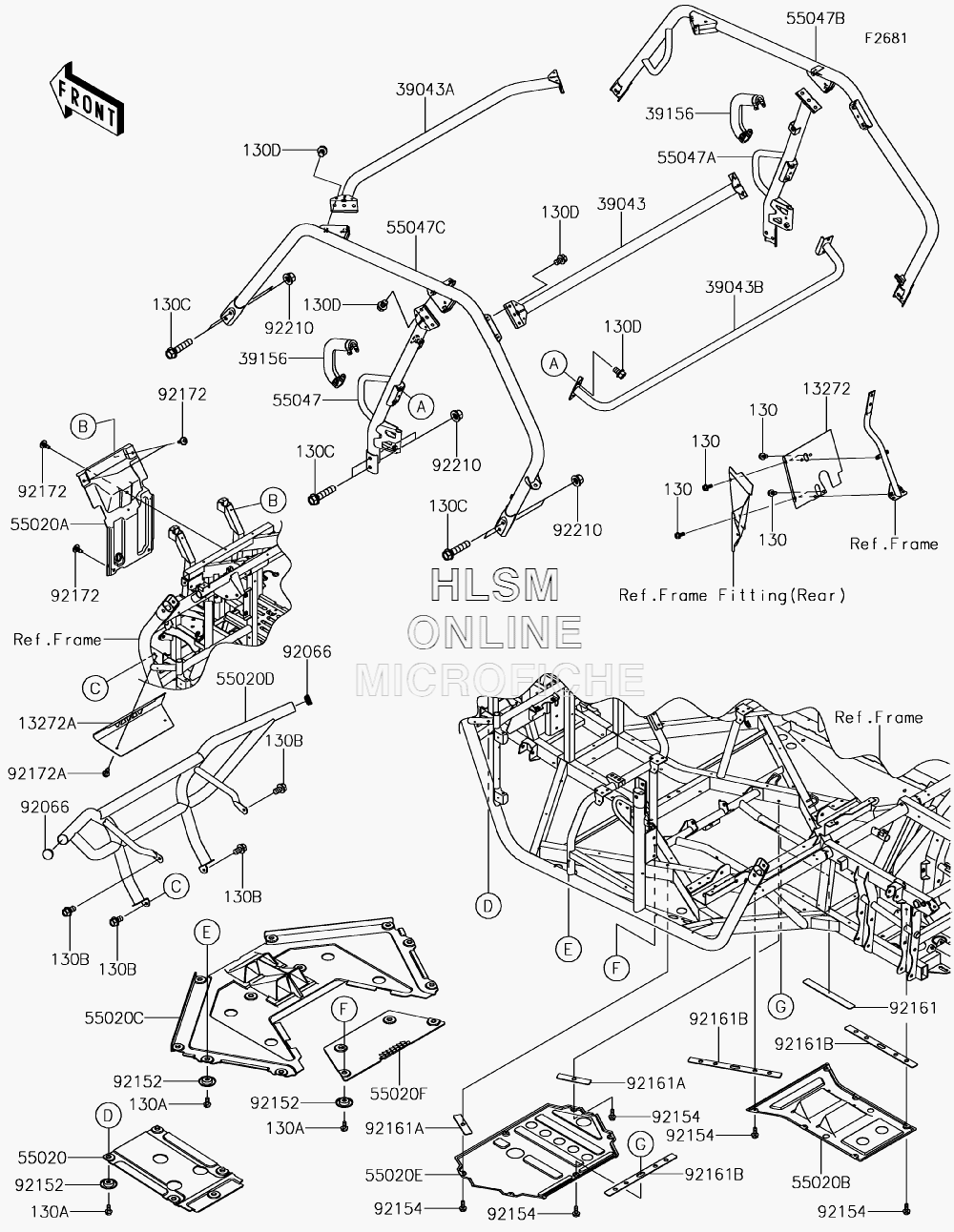

GUARD(S) / CAB FRAME для Kawasaki TERYX LE (KRF800GKF) - 2019 года выпуска`
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130BA1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130C130BB1255 BOLT-FLANGED, 12X55BOLT-FLANGED, 12X55
-
130D130CB1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
1327213272-2064 PLATEPLATE
-
13272A13272-2232-388 PLATE, FRONT, (T.BLACK)PLATE, FRONT, (T.BLACK)
-
3904339043-0009-388 CROSSMEMBER-COMP, UPPER, REAR, (T.BLACK)CROSSMEMBER-COMP, UPPER, REAR, (T.BLACK)
-
39043A39043-0010-388 CROSSMEMBER-COMP, UPPER, FRONT, (T.BLACK)CROSSMEMBER-COMP, UPPER, FRONT, (T.BLACK)
-
39043B39043-0015-388 CROSSMEMBER-COMP, (T.BLACK)CROSSMEMBER-COMP, (T.BLACK)
-
3915639156-0939 PAD, SHOULDERPAD, SHOULDER
-
5502055020-0723 GUARD, SKID, FRONTGUARD, SKID, FRONT
-
55020A55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020B55020-0812 GUARD, SKID, REARGUARD, SKID, REAR
-
55020C55020-0890 GUARD, SKID, FRONT MIDDLEGUARD, SKID, FRONT MIDDLE
-
55020D55020-1859-388 GUARD, FRONT, (T.BLACK)GUARD, FRONT, (T.BLACK)
-
55020E55020-1884 GUARD, SKID, CENTERGUARD, SKID, CENTER
-
55020F55020-1951 GUARDGUARD
-
5504755047-0359-388 BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK)BAR-COMP, B-PILLAR, LEFT HAND, (T.BLACK)
-
55047A55047-0360-388 BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK)BAR-COMP, B-PILLAR, RIGHT HAND, (T.BLACK)
-
55047B55047-0372-388 BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK)BAR-COMP, A-PILLAR, RIGHT HAND, (T.BLACK)
-
55047C55047-0373-388 BAR-COMP, A/C-PILLAR, LEFT HAND, (T.BLACK)BAR-COMP, A/C-PILLAR, LEFT HAND, (T.BLACK)
-
9206692066-0830 PLUG, 42MMPLUG, 42MM
-
9215292152-0784 COLLARCOLLAR
-
9215492154-0887 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216192161-1597 DAMPER, 32X270X3DAMPER, 32X270X3
-
92161A92161-1598 DAMPER, 32X140X3DAMPER, 32X140X3
-
92161B92161-1599 DAMPER, 32X390X3DAMPER, 32X390X3
-
9217292172-0826 SCREW, 6X16SCREW, 6X16
-
92172A92172-0869 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9221092210-0603 NUT, 12MMNUT, 12MM
