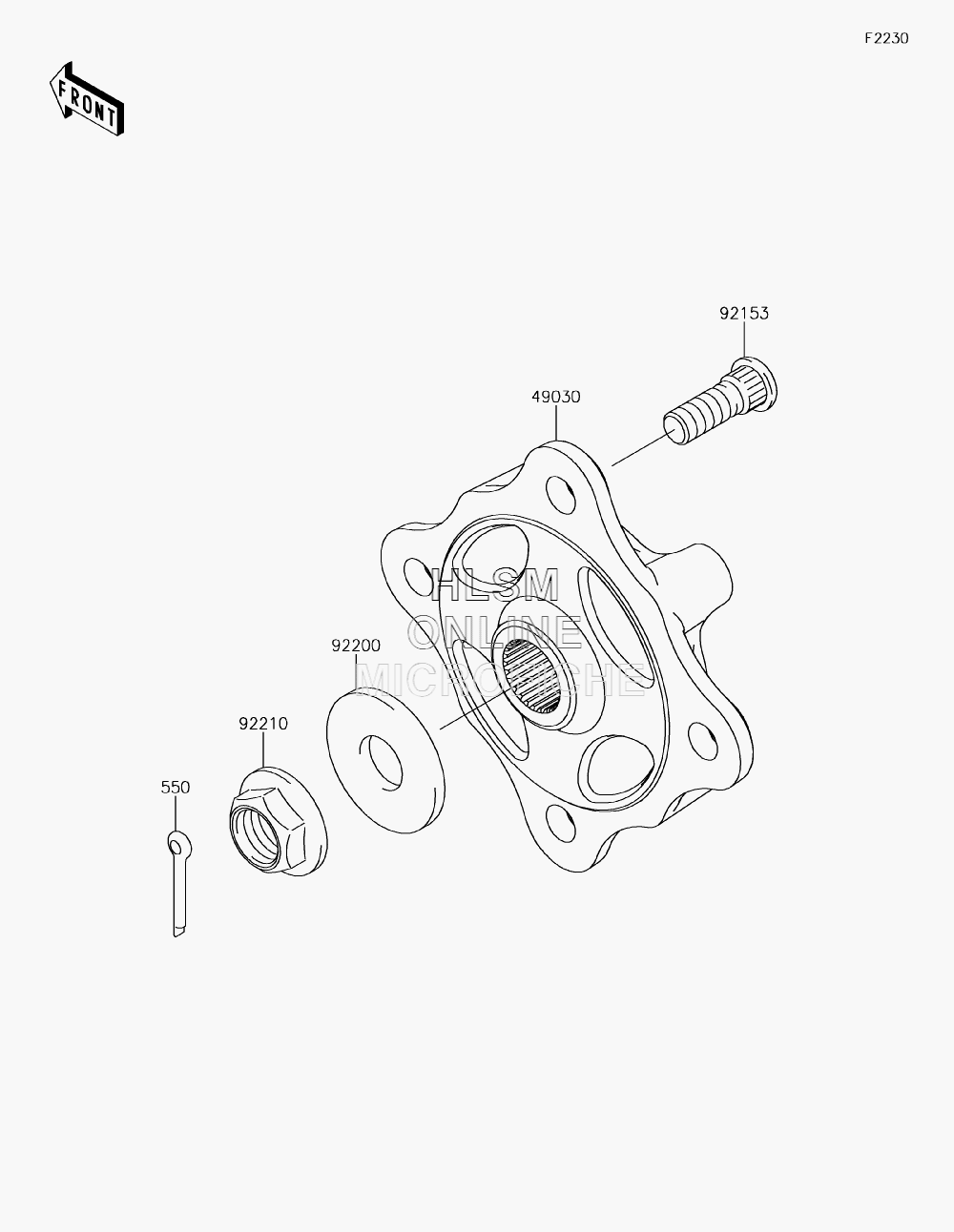

BRAKE - FRONT W/ HUB для Kawasaki TERYX LE (KRF800GKF) - 2019 года выпуска`
-
№АртикулНазвание
-
4903049030-0560 HUB, FRONTHUB, FRONT
-
550550AA4030 PIN-COTTER, 4.0X30PIN-COTTER, 4.0X30
-
9215392153-1915 BOLT, 12MMBOLT, 12MM
-
9220092200-1739 WASHER, 20.3X52.0X4.5WASHER, 20.3X52.0X4.5
-
9221092210-2093 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
