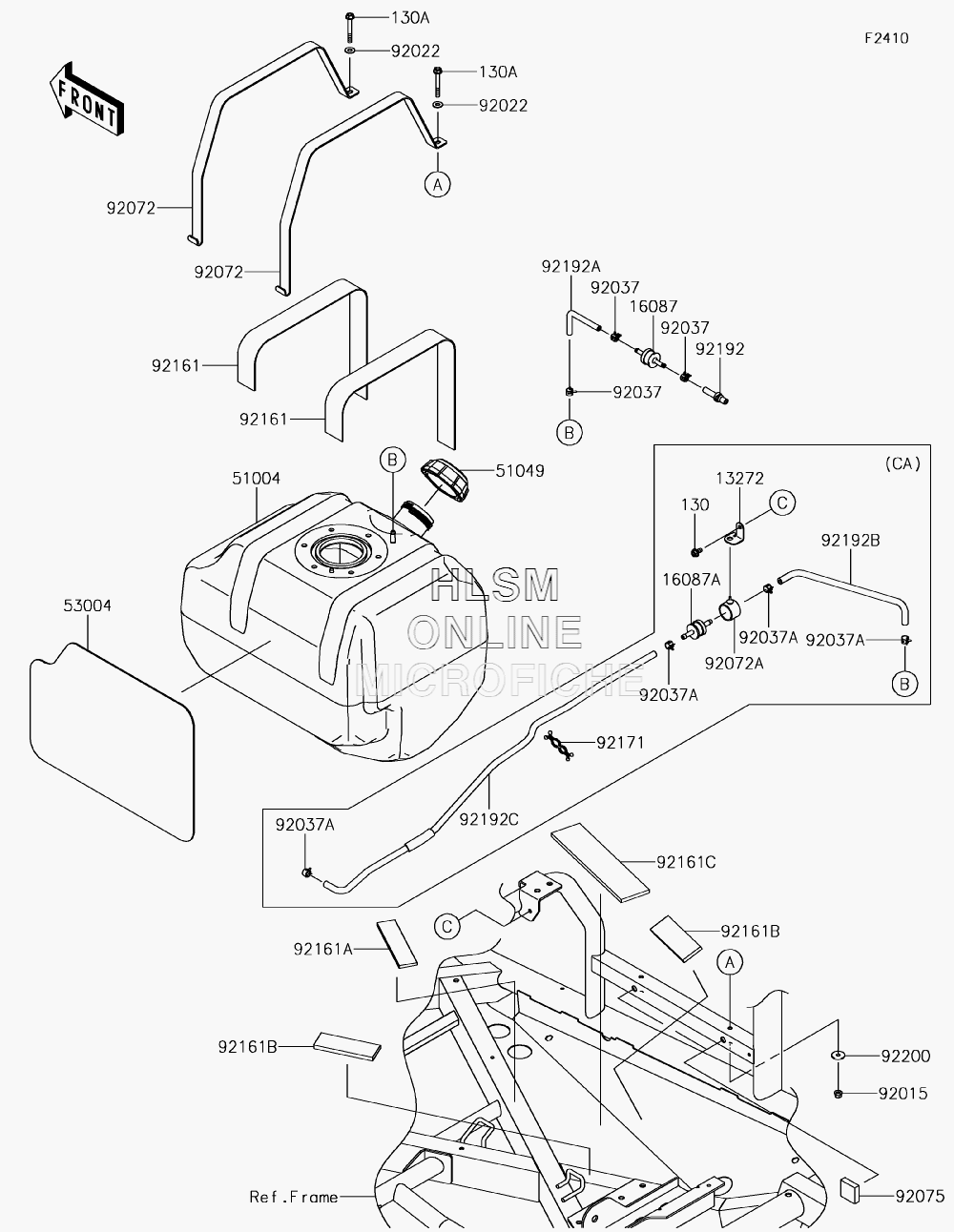

FUEL TANK для Kawasaki TERYX CAMO (KRF800HKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0612 BOLT-FLANGED, 6X12 (CALIF. ONLY)
    BOLT-FLANGED, 6X12 (CALIF. ONLY)
  • 130A
    130BA0650 BOLT-FLANGED, 6X50
    BOLT-FLANGED, 6X50
  • 13272
    13272-2276 PLATE (CALIF. ONLY)
    PLATE (CALIF. ONLY)
  • 16087
    16087-0008 VALVE-CHECK (EXCEPT CALIF.)
    VALVE-CHECK (EXCEPT CALIF.)
  • 16087A
    16087-0009 VALVE-CHECK (CALIF. ONLY)
    VALVE-CHECK (CALIF. ONLY)
  • 51004
    51004-0002 TANK-FUEL
    TANK-FUEL
  • 51049
    51049-0718 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 53004
    53004-0554 MAT
    MAT
  • 92015
    92015-1339 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1344 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92037
    92037-1461 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037A
    92037-2113 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92072
    92072-0704 BAND, FUEL TANK
    BAND, FUEL TANK
  • 92072A
    92072-1438 BAND (CALIF. ONLY)
    BAND (CALIF. ONLY)
  • 92075
    92075-1882 DAMPER
    DAMPER
  • 92161
    92161-0794 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161A
    92161-0936 DAMPER, 31.1X130X5
    DAMPER, 31.1X130X5
  • 92161B
    92161-0948 DAMPER, 38X105X7
    DAMPER, 38X105X7
  • 92161C
    92161-1811 DAMPER, 55X225X6.35
    DAMPER, 55X225X6.35
  • 92171
    92171-0476 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92192
    92192-0068 TUBE, FRAME PIPE-CHECK VALVE (EXCEPT CALIF.)
    TUBE, FRAME PIPE-CHECK VALVE (EXCEPT CALIF.)
  • 92192A
    92192-0949 TUBE, VENT (EXCEPT CALIF.)
    TUBE, VENT (EXCEPT CALIF.)
  • 92192B
    92192-1735 TUBE, 5X10.4X40/240 (CALIF. ONLY)
    TUBE, 5X10.4X40/240 (CALIF. ONLY)
  • 92192C
    92192-1736 TUBE, 5X10.4X40/900 (CALIF. ONLY)
    TUBE, 5X10.4X40/900 (CALIF. ONLY)
  • 92200
    92200-1087 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
