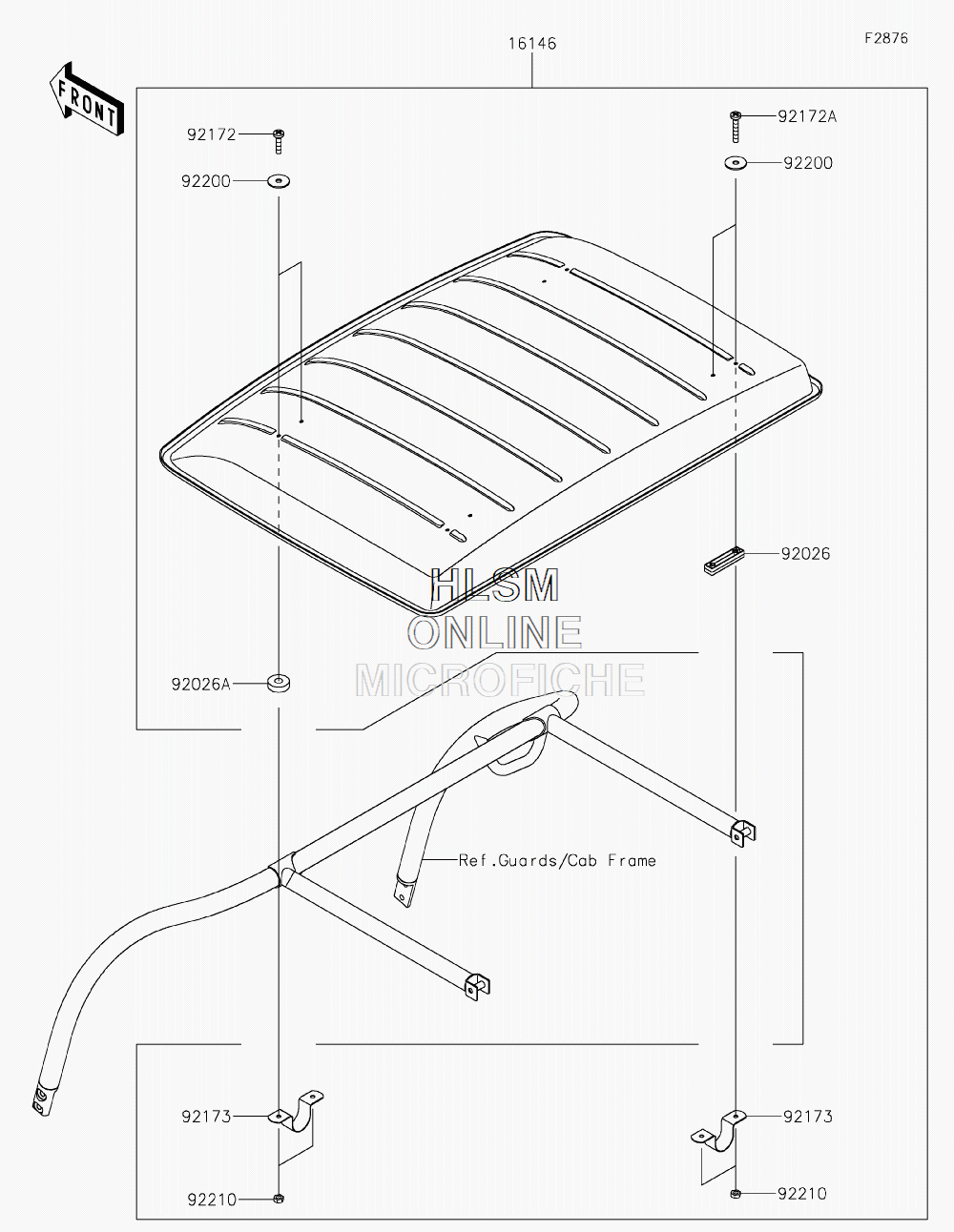

SUN TOP для Kawasaki MULE SX 4X4 XC LE FI (KAF400TKS) - 2019 года выпуска`
-
№АртикулНазвание
-
1614616146-0742 COVER-ASSY, SUN TOPCOVER-ASSY, SUN TOP
-
9202692026-0763 SPACER, BLOCKSPACER, BLOCK
-
92026A92026-0764 SPACER, 9.5X25.4X7.5SPACER, 9.5X25.4X7.5
-
9217292172-0873 SCREW, 6X25.4SCREW, 6X25.4
-
92172A92172-0874 SCREW, 6X35.1SCREW, 6X35.1
-
9217392173-1200 CLAMPCLAMP
-
9220092200-0912 WASHER, 7.1X25.4X1.6WASHER, 7.1X25.4X1.6
-
9221092210-0886 NUT, 6MMNUT, 6MM
