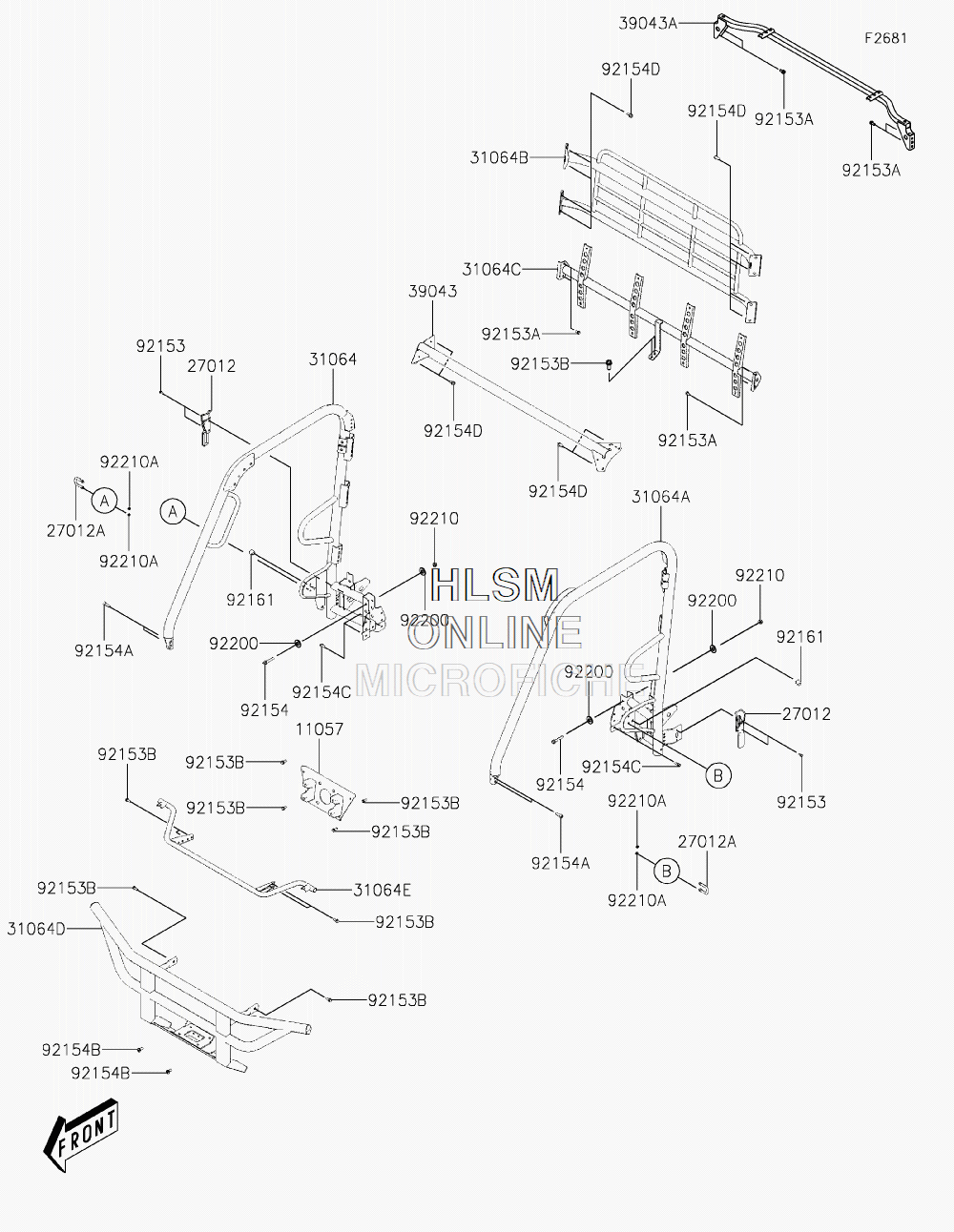

GUARD(S) / CAB FRAME для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-Y015 BRACKET, STABILIZER
    BRACKET, STABILIZER
  • 27012
    27012-Y005 HOOK, SIDE
    HOOK, SIDE
  • 27012A
    27012-Y006 HOOK, DOOR
    HOOK, DOOR
  • 31064
    31064-Y013 PIPE-COMP, ROOF, RIGHT HAND
    PIPE-COMP, ROOF, RIGHT HAND
  • 31064A
    31064-Y014 PIPE-COMP, ROOF, LEFT HAND
    PIPE-COMP, ROOF, LEFT HAND
  • 31064B
    31064-Y015 PIPE-COMP, REAR, UPPER
    PIPE-COMP, REAR, UPPER
  • 31064C
    31064-Y016 PIPE-COMP, REAR, LOWER
    PIPE-COMP, REAR, LOWER
  • 31064D
    31064-Y017 PIPE-COMP, FRONT BUMPER
    PIPE-COMP, FRONT BUMPER
  • 31064E
    31064-Y018 PIPE-COMP, FRONT COVER
    PIPE-COMP, FRONT COVER
  • 39043
    39043-Y002 CROSSMEMBER-COMP, ROOF
    CROSSMEMBER-COMP, ROOF
  • 39043A
    39043-Y003 CROSSMEMBER-COMP, ROOF, REAR
    CROSSMEMBER-COMP, ROOF, REAR
  • 92153
    92153-Y025 BOLT, FLANGE, 6X16
    BOLT, FLANGE, 6X16
  • 92153A
    92153-Y032 BOLT, FLANGE, 8X16
    BOLT, FLANGE, 8X16
  • 92153B
    92153-Y033 BOLT, FLANGE, 8X20
    BOLT, FLANGE, 8X20
  • 92154
    92154-Y091 BOLT, FLANGE, 10X60
    BOLT, FLANGE, 10X60
  • 92154A
    92154-Y098 BOLT, SOCKET, 10X28
    BOLT, SOCKET, 10X28
  • 92154B
    92154-Y178 BOLT, 10X23
    BOLT, 10X23
  • 92154C
    92154-Y195 BOLT, FLANGE, 8X25
    BOLT, FLANGE, 8X25
  • 92154D
    92154-Y197 BOLT, FLANGE, 10X200
    BOLT, FLANGE, 10X200
  • 92161
    92161-Y050 DAMPER, ROPS
    DAMPER, ROPS
  • 92200
    92200-Y020 WASHER, 10MM
    WASHER, 10MM
  • 92210
    92210-Y009 NUT, 10MM
    NUT, 10MM
  • 92210A
    92210-Y087 NUT, 6MM
    NUT, 6MM
