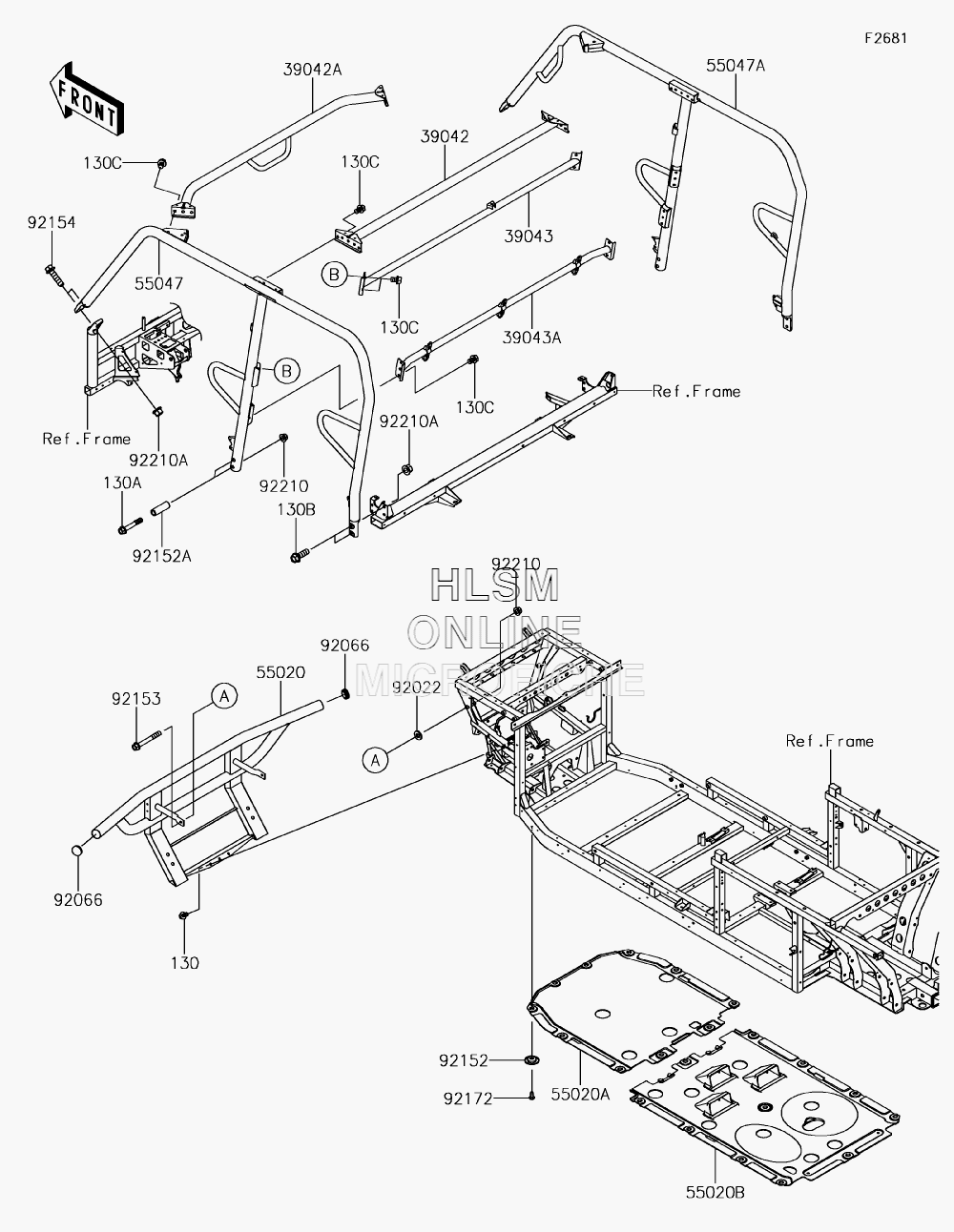

GUARD(S) / CAB FRAME для Kawasaki MULE PRO-FXT EPS CAMO (KAF820DKF) - 2019 года выпуска`
-
№АртикулНазвание
-
130130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130BA1060 BOLT-FLANGED, 10X60BOLT-FLANGED, 10X60
-
130B130BA1235 BOLT-FLANGED, 12X35BOLT-FLANGED, 12X35
-
130C130CA1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
3904239042-0015-388 CROSSMEMBER, REAR, (T.BLACK)CROSSMEMBER, REAR, (T.BLACK)
-
39042A39042-0016-388 CROSSMEMBER, FRONT, (T.BLACK)CROSSMEMBER, FRONT, (T.BLACK)
-
3904339043-0016-388 CROSSMEMBER-COMP, B-P., UPPER, (BLACK)CROSSMEMBER-COMP, B-P., UPPER, (BLACK)
-
39043A39043-0017-388 CROSSMEMBER-COMP, B-P., LOWER, (BLACK)CROSSMEMBER-COMP, B-P., LOWER, (BLACK)
-
5502055020-0933-388 GUARD, FRONT PIPE, (T.BLACK)GUARD, FRONT PIPE, (T.BLACK)
-
55020A55020-0934 GUARD, SKID PLATEGUARD, SKID PLATE
-
55020B55020-0935 GUARD, SKID PLATEGUARD, SKID PLATE
-
5504755047-0361-388 BAR-COMP, LEFT HAND, (T.BLACK)BAR-COMP, LEFT HAND, (T.BLACK)
-
55047A55047-0362-388 BAR-COMP, RIGHT HAND, (T.BLACK)BAR-COMP, RIGHT HAND, (T.BLACK)
-
9202292022-1365 WASHER, 10X22X3WASHER, 10X22X3
-
9206692066-0769 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
92152A92152-1800 COLLAR, 10.5X16X47COLLAR, 10.5X16X47
-
9215392153-1384 BOLT, FLANGED, 10X75BOLT, FLANGED, 10X75
-
9215492154-1420 BOLT, FLANGED, 12X45BOLT, FLANGED, 12X45
-
9217292172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0603 NUT, 12MMNUT, 12MM
