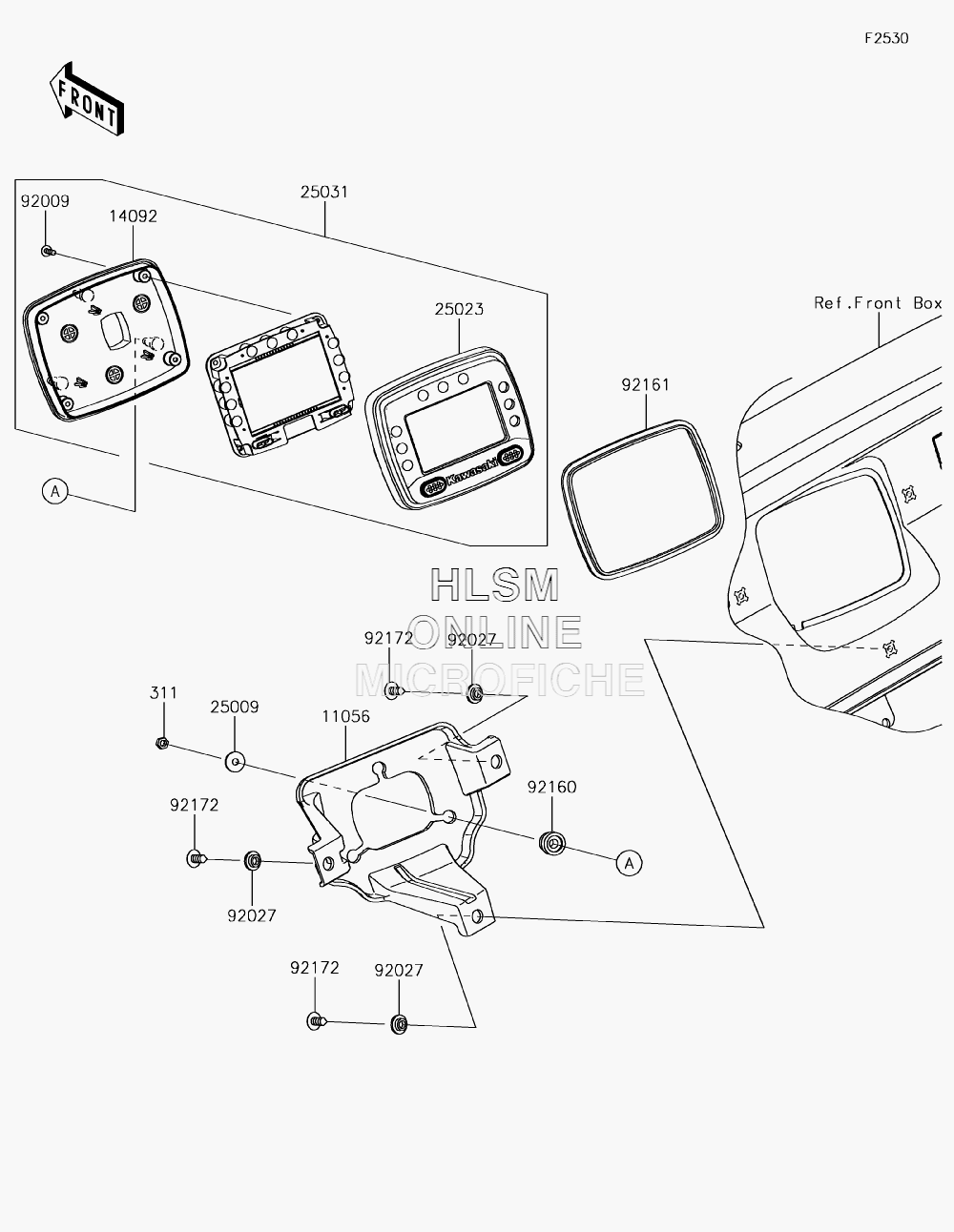

METER(S) для Kawasaki MULE PRO-FX (KAF820EKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1105611056-2956 BRACKET, METERBRACKET, METER
-
1409214092-0834 COVER, METER, LOWERCOVER, METER, LOWER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2502325023-0075 COVER-METER CASE, UPPERCOVER-METER CASE, UPPER
-
2503125031-0700 METER-ASSY, LCDMETER-ASSY, LCD
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
9200992009-1255 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
9202792027-1168 COLLAR, L=4.6COLLAR, L=4.6
-
9216092160-1460 DAMPERDAMPER
-
9216192161-0906 DAMPER, METERDAMPER, METER
-
9217292172-0284 SCREW, 6X16SCREW, 6X16
