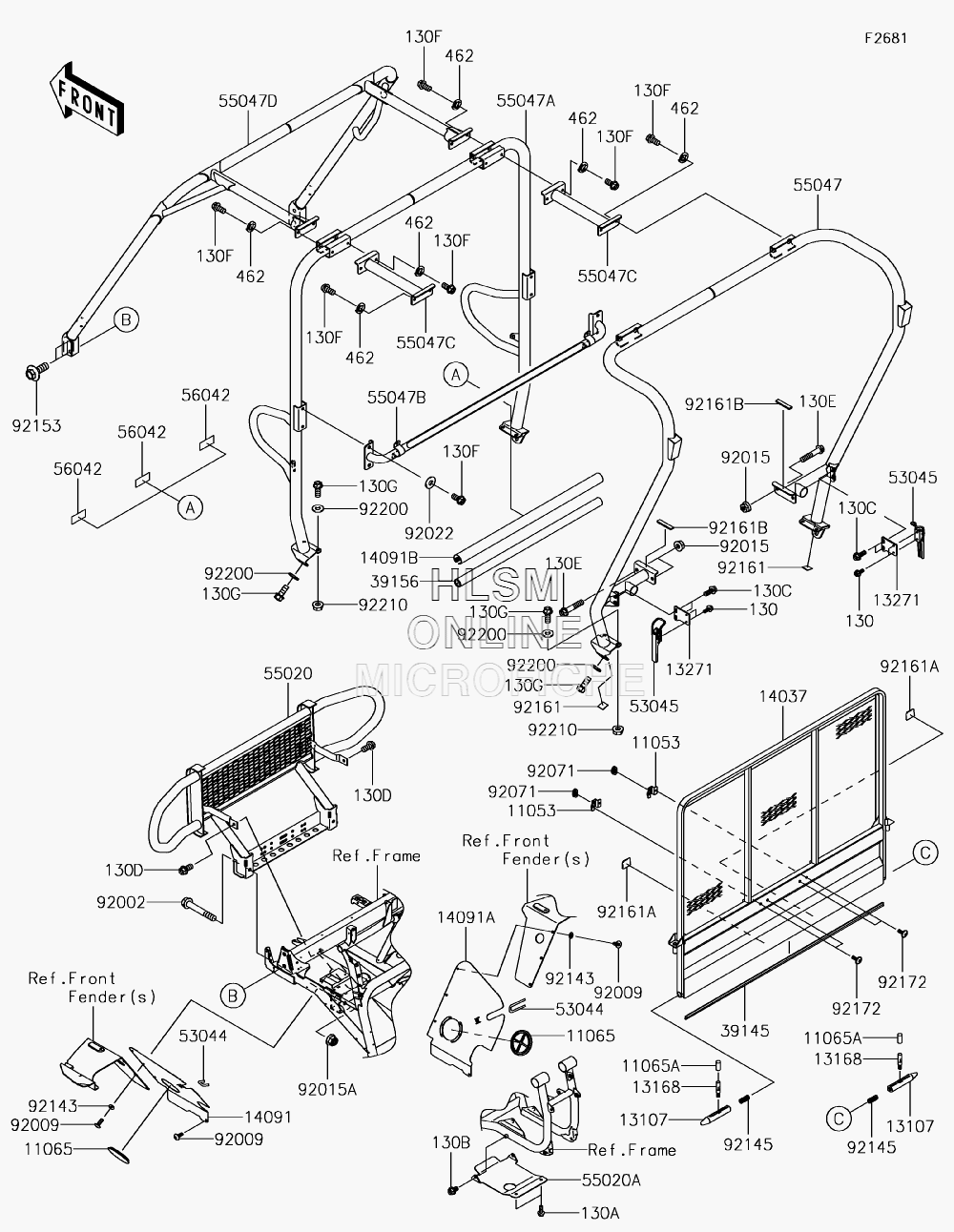

GUARD(S) / CAB FRAME для Kawasaki MULE 4000 TRANS (KAF620WKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1105311053-7528 BRACKET, SCREENBRACKET, SCREEN
-
1106511065-1053-6Z CAP, (F.BLACK)CAP, (F.BLACK)
-
11065A11065-7503 CAPCAP
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130C130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130D130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130E130BA1050 BOLT-FLANGED, 10X50BOLT-FLANGED, 10X50
-
130F130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130G130BB1025 BOLT-FLANGED, 10X25BOLT-FLANGED, 10X25
-
1310713107-7501 SHAFTSHAFT
-
1316813168-7506 LEVERLEVER
-
1327113271-7540 PLATE, HOOKPLATE, HOOK
-
1403714037-7501-388 SCREEN, REAR CAB, (T.BLACK)SCREEN, REAR CAB, (T.BLACK)
-
1409114091-1758 COVER, FRONT, LEFT HANDCOVER, FRONT, LEFT HAND
-
14091A14091-1759 COVER, FRONT, RIGHT HANDCOVER, FRONT, RIGHT HAND
-
14091B14091-7559 COVERCOVER
-
3914539145-7502 TRIM-SEAL, L=1157TRIM-SEAL, L=1157
-
3915639156-7506 PADPAD
-
462462DB1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
5304453044-1137 TRIMTRIM
-
5304553045-7501 HOOK-ASSYHOOK-ASSY
-
5502055020-0876 GUARD, FRONTGUARD, FRONT
-
55020A55020-7506 GUARD, GEAR CASEGUARD, GEAR CASE
-
5504755047-0020-388 BAR-COMP, REAR, (T.BLACK)BAR-COMP, REAR, (T.BLACK)
-
55047A55047-0353-388 BAR-COMP, CENTER, (T.BLACK)BAR-COMP, CENTER, (T.BLACK)
-
55047B55047-7503-388 BAR-COMP, FRONT SEAT, (T.BLACK)BAR-COMP, FRONT SEAT, (T.BLACK)
-
55047C55047-7504-388 BAR-COMP, TOP, (T.BLACK)BAR-COMP, TOP, (T.BLACK)
-
55047D55047-7510-388 BAR-COMP, FRONT, (T.BLACK)BAR-COMP, FRONT, (T.BLACK)
-
5604256042-7502 ADHESIVEADHESIVE
-
9200292002-1661 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202292022-1396 WASHER, 10.5X26X2.3, (BLACK)WASHER, 10.5X26X2.3, (BLACK)
-
9207192071-7505 GROMMETGROMMET
-
9214392143-1087 COLLARCOLLAR
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216192161-0020 DAMPERDAMPER
-
92161A92161-0061 DAMPERDAMPER
-
92161B92161-7514 DAMPERDAMPER
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
-
9220092200-7506 WASHER, 10.2X23X2.5WASHER, 10.2X23X2.5
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
