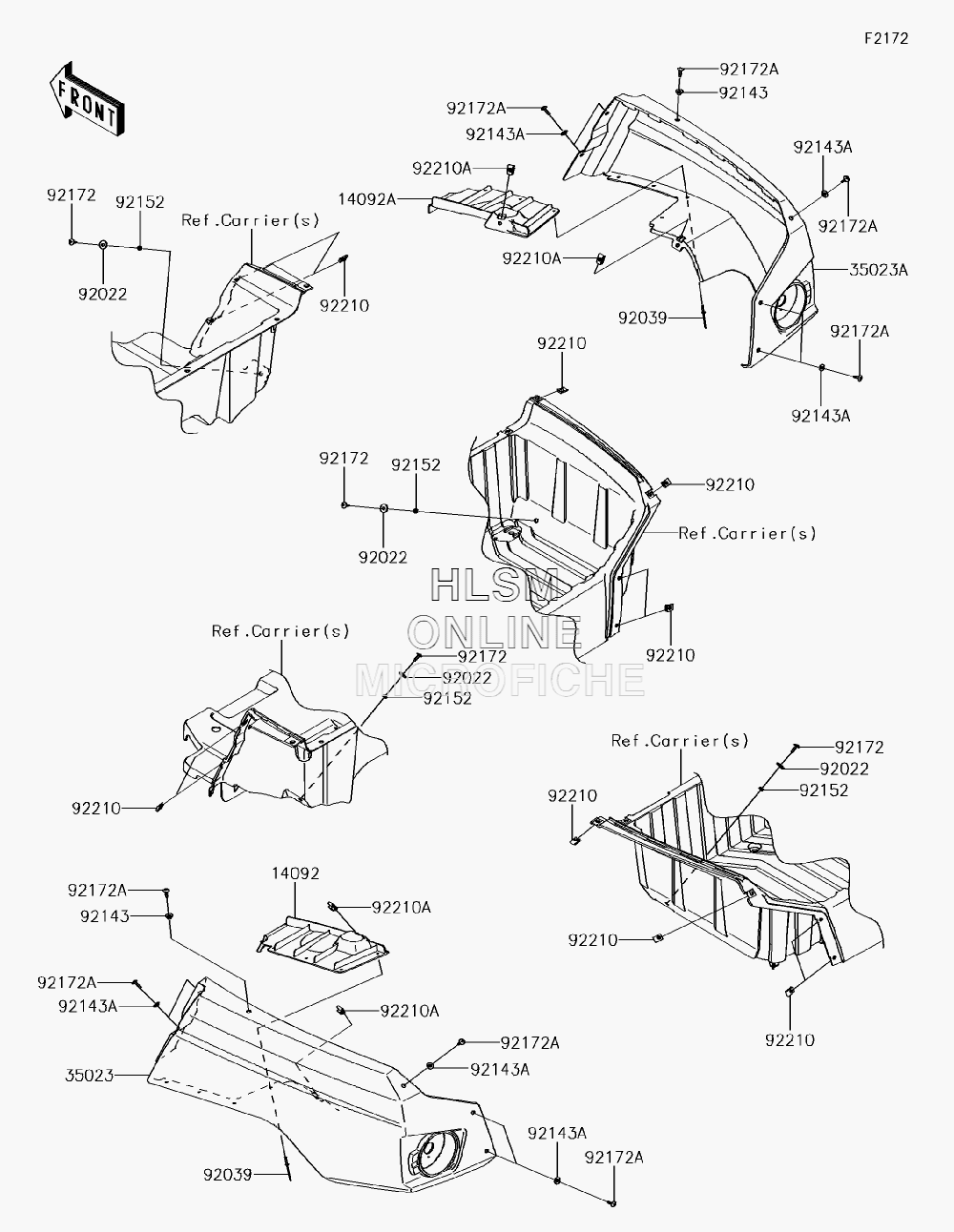

FENDER - REAR для Kawasaki TERYX4 LE CAMO (KRT800GJFA) - 2018 года выпуска
-
№АртикулНазвание
-
1409214092-0863 COVER, INNER, LEFT HANDCOVER, INNER, LEFT HAND
-
14092A14092-0864 COVER, INNER, RIGHT HANDCOVER, INNER, RIGHT HAND
-
3502335023-0307-839 FENDER-REAR, LEFT HAND, (S.BLACK) (FOR ALL COLORS)FENDER-REAR, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
-
35023A35023-0308-839 FENDER-REAR, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)FENDER-REAR, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
-
9202292022-1346 WASHER, 6.5X20X1.6, (BLACK)WASHER, 6.5X20X1.6, (BLACK)
-
9203992039-0769 RIVET, 5X23.3RIVET, 5X23.3
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215292152-1834 COLLAR, 6.3X10X3COLLAR, 6.3X10X3
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
92172A92172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
-
92210A92210-0891 NUT, 6MMNUT, 6MM
