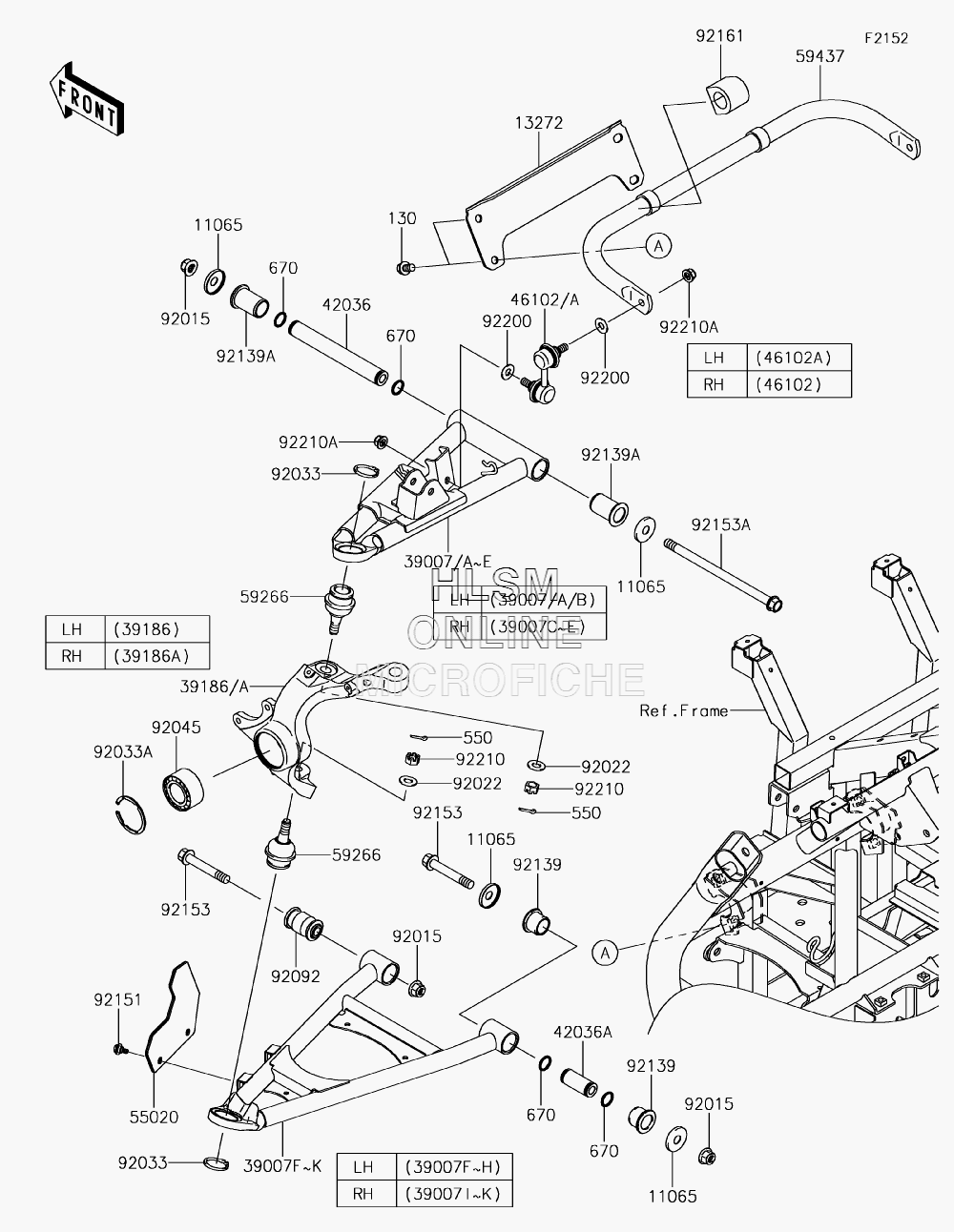

SUSPENSION - FRONT для Kawasaki TERYX4 (KRT800FJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11065
    11065-0253 CAP
    CAP
  • 130
    130CA1016 BOLT-FLANGED, 10X16
    BOLT-FLANGED, 10X16
  • 13272
    13272-1650 PLATE
    PLATE
  • 39007B
    39007-0367-42R ARM-SUSP, FRONT, UPPER, LEFT HAND, (C.B.ORANGE)
    ARM-SUSP, FRONT, UPPER, LEFT HAND, (C.B.ORANGE)
  • 39007E
    39007-0368-42R ARM-SUSP, FRONT, UPPER, RIGHT HAND, (C.B.ORANGE)
    ARM-SUSP, FRONT, UPPER, RIGHT HAND, (C.B.ORANGE)
  • 39007H
    39007-0389-42R ARM-SUSP, FRONT, LOWER, LEFT HAND, (C.B.ORANGE)
    ARM-SUSP, FRONT, LOWER, LEFT HAND, (C.B.ORANGE)
  • 39007K
    39007-0390-42R ARM-SUSP, FRONT, LOWER, RIGHT HAND, (C.B.ORANGE)
    ARM-SUSP, FRONT, LOWER, RIGHT HAND, (C.B.ORANGE)
  • 39186
    39186-0311 KNUCKLE, FRONT, LEFT HAND
    KNUCKLE, FRONT, LEFT HAND
  • 39186A
    39186-0312 KNUCKLE, FRONT, RIGHT HAND
    KNUCKLE, FRONT, RIGHT HAND
  • 42036
    42036-0061 SLEEVE
    SLEEVE
  • 42036A
    42036-0062 SLEEVE
    SLEEVE
  • 46102
    46102-0100 ROD, STABILIZER, RIGHT HAND
    ROD, STABILIZER, RIGHT HAND
  • 46102A
    46102-0101 ROD, STABILIZER, LEFT HAND
    ROD, STABILIZER, LEFT HAND
  • 550
    550AA3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 55020
    55020-0839 GUARD, FRONT ARM
    GUARD, FRONT ARM
  • 59266
    59266-0711 JOINT-BALL
    JOINT-BALL
  • 59437
    59437-0010 STABILIZER, FRONT
    STABILIZER, FRONT
  • 670
    670B2018 O RING, 18MM
    O RING, 18MM
  • 92015
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92022
    92022-1831 WASHER
    WASHER
  • 92033
    92033-1262 RING-SNAP, C-TYPE, 32MM
    RING-SNAP, C-TYPE, 32MM
  • 92033A
    92033-1274 RING-SNAP, 55MM
    RING-SNAP, 55MM
  • 92045
    92045-0800 BEARING-BALL, 30X55X32
    BEARING-BALL, 30X55X32
  • 92092
    92092-0555 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92139
    92139-0231 BUSHING
    BUSHING
  • 92139A
    92139-0806 BUSHING, 22.4X28.2X46
    BUSHING, 22.4X28.2X46
  • 92151
    92151-1703 BOLT, FLANGED, 6X13
    BOLT, FLANGED, 6X13
  • 92153
    92153-1733 BOLT, FLANGED, 12X76.5
    BOLT, FLANGED, 12X76.5
  • 92153A
    92153-1958 BOLT, FLANGED, 12X213
    BOLT, FLANGED, 12X213
  • 92161
    92161-1508 DAMPER
    DAMPER
  • 92200
    92200-2009 WASHER, 10.3X23X1.6
    WASHER, 10.3X23X1.6
  • 92210
    92210-0395 NUT, CASTLE, 12MM
    NUT, CASTLE, 12MM
  • 92210A
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
