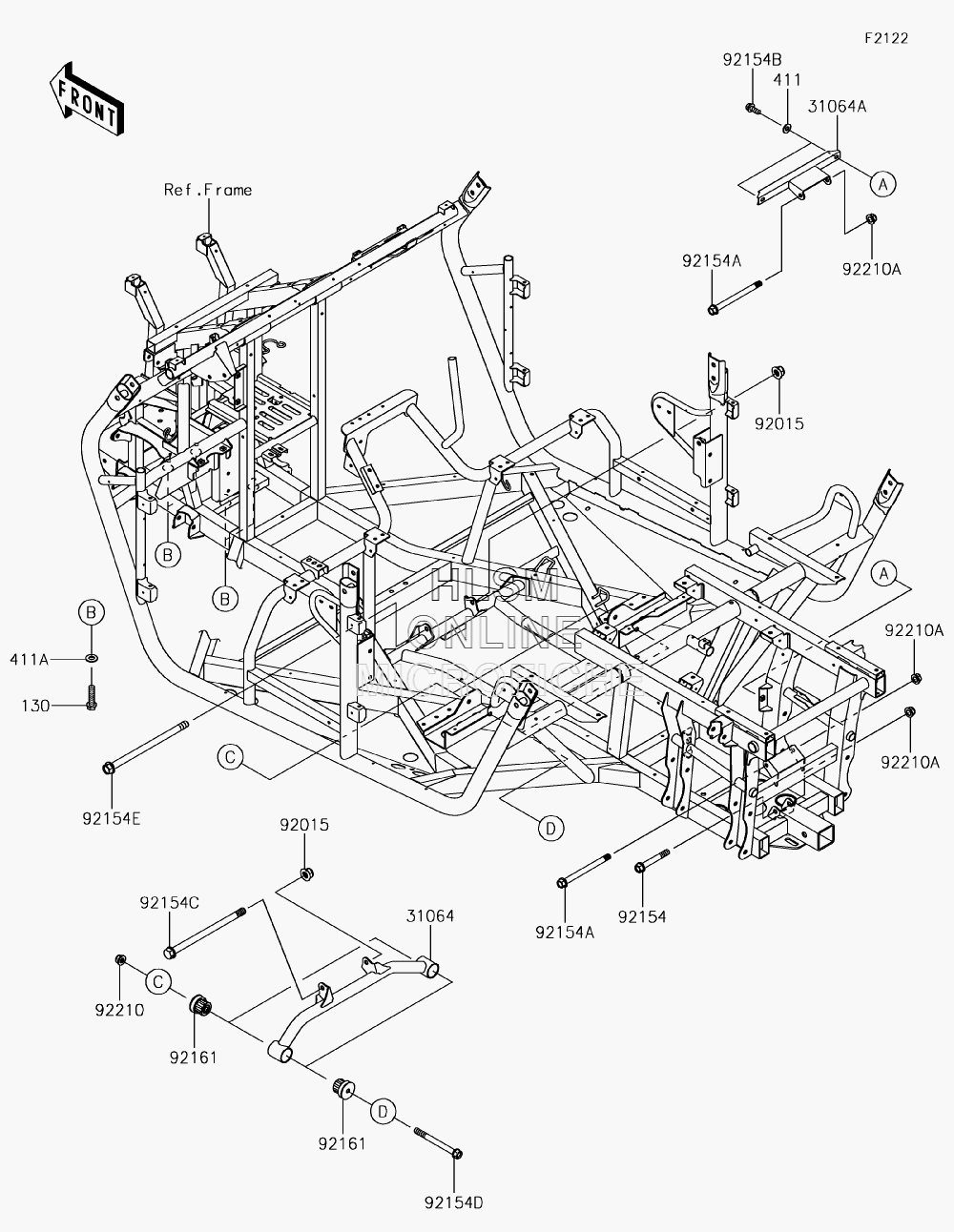

ENGINE MOUNT для Kawasaki TERYX4 CAMO (KRT800HJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA1040 BOLT-FLANGED, 10X40
    BOLT-FLANGED, 10X40
  • 31064
    31064-0621 PIPE-COMP, REAR FRAME
    PIPE-COMP, REAR FRAME
  • 31064A
    31064-0660 PIPE-COMP, REAR GEARCASE MOUNT
    PIPE-COMP, REAR GEARCASE MOUNT
  • 411
    411AA0800 WASHER-PLAIN, 8MM
    WASHER-PLAIN, 8MM
  • 411A
    411AA1000 WASHER-PLAIN, 10MM
    WASHER-PLAIN, 10MM
  • 92015
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92154
    92154-0894 BOLT, FLANGED, 10X70
    BOLT, FLANGED, 10X70
  • 92154A
    92154-0895 BOLT, FLANGED, 10X120
    BOLT, FLANGED, 10X120
  • 92154B
    92154-1130 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92154C
    92154-1131 BOLT, FLANGED, 12X190
    BOLT, FLANGED, 12X190
  • 92154D
    92154-1132 BOLT, FLANGED, 10X105
    BOLT, FLANGED, 10X105
  • 92154E
    92154-1133 BOLT, FLANGED, 12X200
    BOLT, FLANGED, 12X200
  • 92161
    92161-0423 DAMPER
    DAMPER
  • 92210
    92210-0276 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210A
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
