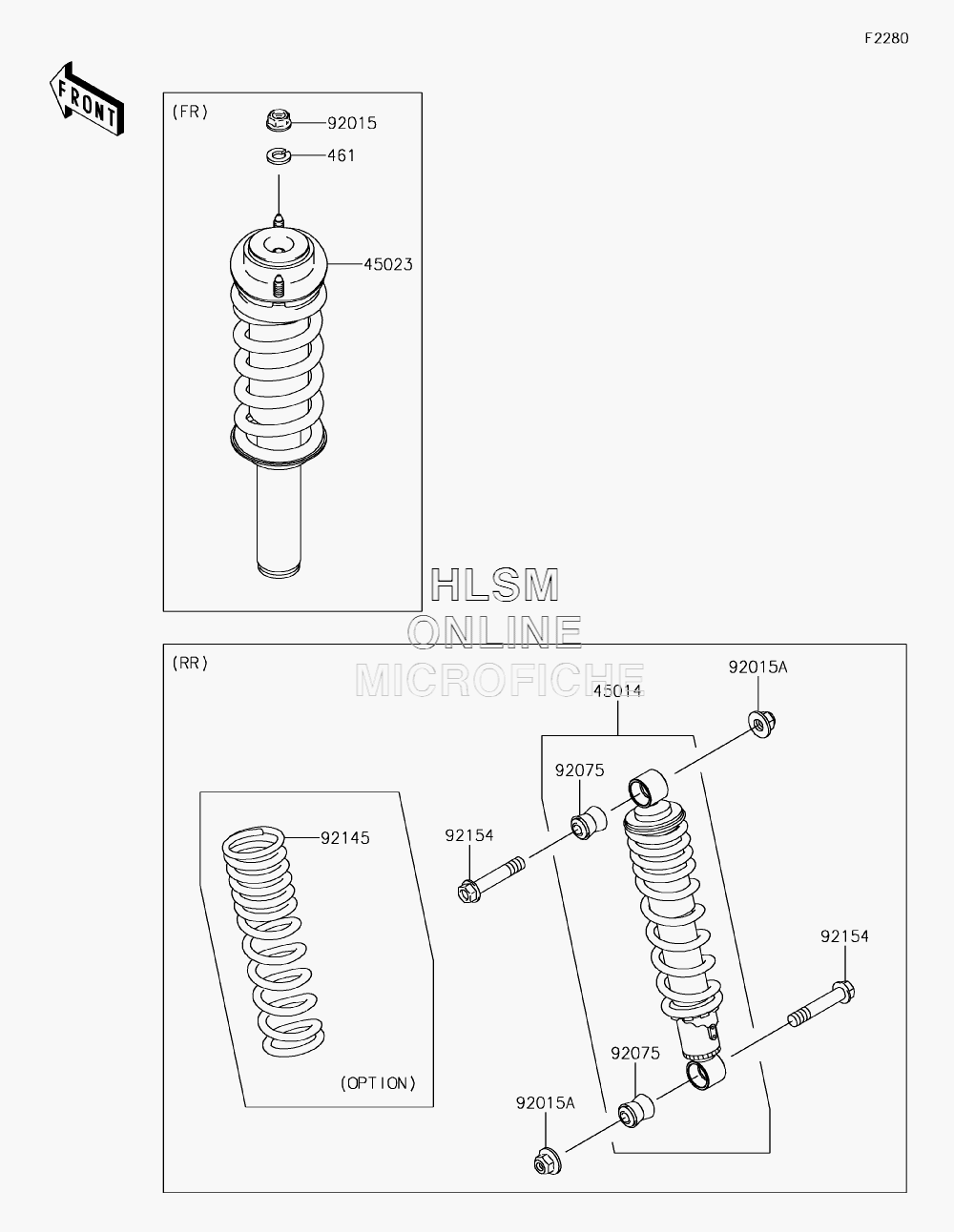

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki MULE SX (KAF400JJF) - 2018 года выпуска
-
№АртикулНазвание
-
4501445014-0544 SHOCKABSORBERSHOCKABSORBER
-
4502345023-0008 STRUTSTRUT
-
461461DA1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9207592075-1784 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
9214592145-0400 SPRING, SHOCK, K=24.5/44.1N/MM (OPTION)SPRING, SHOCK, K=24.5/44.1N/MM (OPTION)
-
9215492154-1949 BOLT, FLANGED, 10X53.5BOLT, FLANGED, 10X53.5
