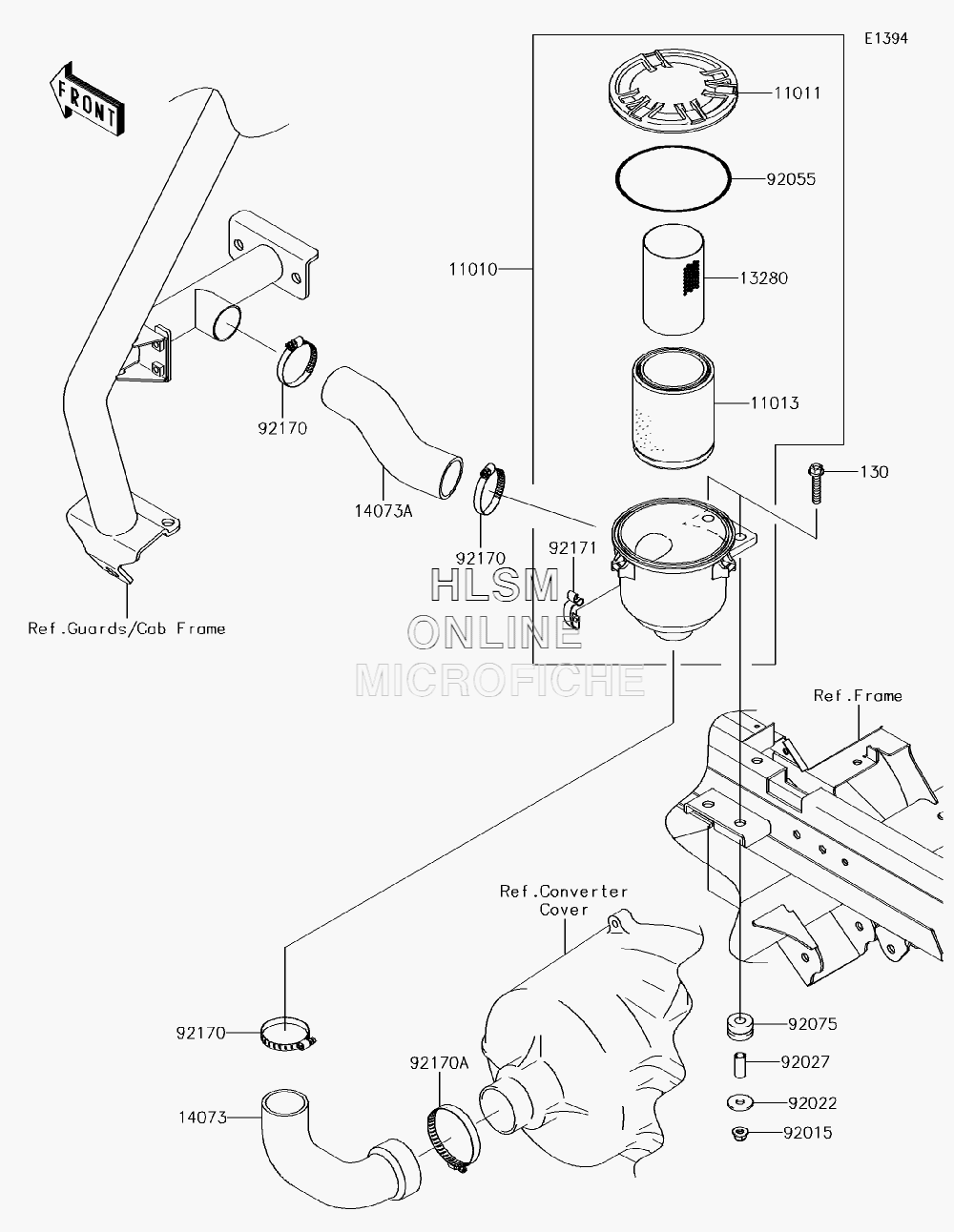

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE 4010 TRANS4X4 CAMO (KAF620SJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1101011010-0172 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0135 CASE-AIR FILTER, CAPCASE-AIR FILTER, CAP
-
1101311013-0037 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
130130BA0840 BOLT-FLANGED, 8X40BOLT-FLANGED, 8X40
-
1328013280-0312 HOLDERHOLDER
-
1407314073-0198 DUCT, AIR FILTER-CVTDUCT, AIR FILTER-CVT
-
14073A14073-0237 DUCT, BAR-AIR FILTERDUCT, BAR-AIR FILTER
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202292022-1632 WASHER, 9X28X2.3WASHER, 9X28X2.3
-
9202792027-4012 COLLARCOLLAR
-
9205592055-0167 RING-O, 122X4RING-O, 122X4
-
9207592075-1736 DAMPERDAMPER
-
9217092170-1674 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
