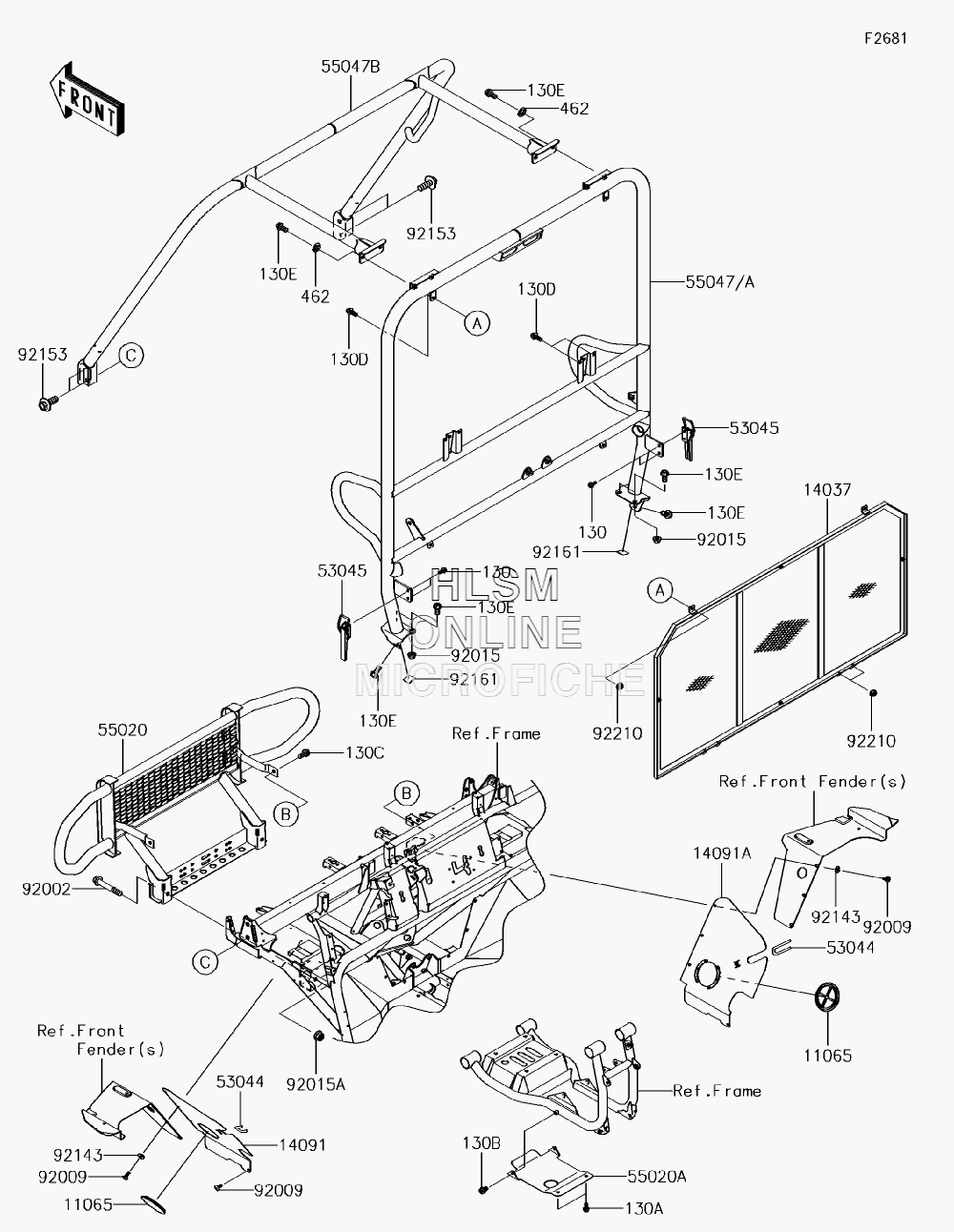

GUARD(S) / CAB FRAME для Kawasaki MULE 4010 4X4 (KAF620MJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1106511065-1053-6Z CAP, (F.BLACK) (FOR ALL COLORS)CAP, (F.BLACK) (FOR ALL COLORS)
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
130C130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130D130BB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130E130BB1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
1403714037-0016-388 SCREEN, REAR GUARD, (T.BLACK) (FOR ALL COLORS)SCREEN, REAR GUARD, (T.BLACK) (FOR ALL COLORS)
-
1409114091-1758 COVER, FRONT, LEFT HANDCOVER, FRONT, LEFT HAND
-
14091A14091-1759 COVER, FRONT, RIGHT HANDCOVER, FRONT, RIGHT HAND
-
462462DB1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
5304453044-1137 TRIMTRIM
-
5304553045-1063 HOOK-ASSYHOOK-ASSY
-
5502055020-0876 GUARD, FRONTGUARD, FRONT
-
55020A55020-7506 GUARD, GEAR CASEGUARD, GEAR CASE
-
55047A55047-0354-388 BAR-COMP, (T.BLACK) (FOR ALL COLORS)BAR-COMP, (T.BLACK) (FOR ALL COLORS)
-
55047B55047-7514-388 BAR-COMP, FRONT, (T.BLACK) (FOR ALL COLORS)BAR-COMP, FRONT, (T.BLACK) (FOR ALL COLORS)
-
9200292002-1661 BOLT, FLANGED, 12X75BOLT, FLANGED, 12X75
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9214392143-1087 COLLARCOLLAR
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216192161-0020 DAMPERDAMPER
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
