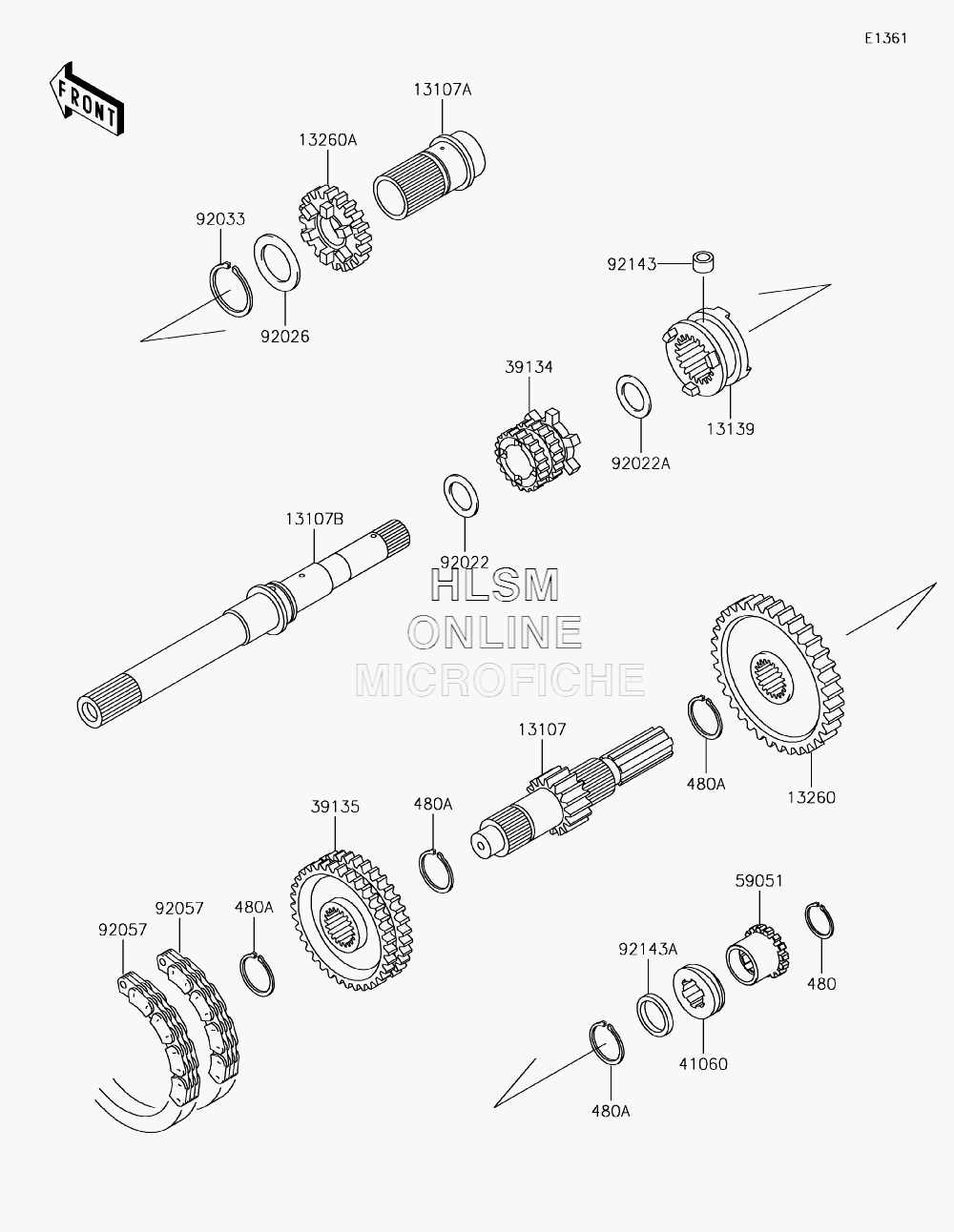

TRANSMISSION для Kawasaki MULE 4000 TRANS (KAF620WJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-0191 SHAFT, COUNTER
    SHAFT, COUNTER
  • 13107A
    13107-1315 SHAFT, INPUT OUTER
    SHAFT, INPUT OUTER
  • 13107B
    13107-1471 SHAFT, INPUT
    SHAFT, INPUT
  • 13139
    13139-1072 SHIFTER, FR/RR
    SHIFTER, FR/RR
  • 13260
    13260-1288 GEAR, OUTPUT REVERSE, 51T
    GEAR, OUTPUT REVERSE, 51T
  • 13260A
    13260-1462 GEAR, INPUT 28T
    GEAR, INPUT 28T
  • 39134
    39134-1055 SPROCKET-DRIVE, 20T
    SPROCKET-DRIVE, 20T
  • 39135
    39135-1055 SPROCKET-DRIVEN, 41T
    SPROCKET-DRIVEN, 41T
  • 41060
    41060-1147 GEAR-METER SCREW
    GEAR-METER SCREW
  • 480
    480J2500 CIRCLIP-TYPE-C, 25MM
    CIRCLIP-TYPE-C, 25MM
  • 480A
    480J3000 CIRCLIP-TYPE-C, 30MM
    CIRCLIP-TYPE-C, 30MM
  • 59051
    59051-0086 GEAR-SPUR, 15T
    GEAR-SPUR, 15T
  • 92022
    92022-1109 WASHER, 25.3X33X1
    WASHER, 25.3X33X1
  • 92022A
    92022-1573 WASHER, 22.3X33X1.0
    WASHER, 22.3X33X1.0
  • 92026
    92026-1375 SPACER, 35.3X44X0.5
    SPACER, 35.3X44X0.5
  • 92033
    92033-1269 RING-SNAP
    RING-SNAP
  • 92057
    92057-1364 CHAIN, REVERSE, 81RIGHT HAND2520, 54L
    CHAIN, REVERSE, 81RIGHT HAND2520, 54L
  • 92143
    92143-1497 COLLAR, 8X14X10.5
    COLLAR, 8X14X10.5
  • 92143A
    92143-1597 COLLAR, 25X32X4.5
    COLLAR, 25X32X4.5
