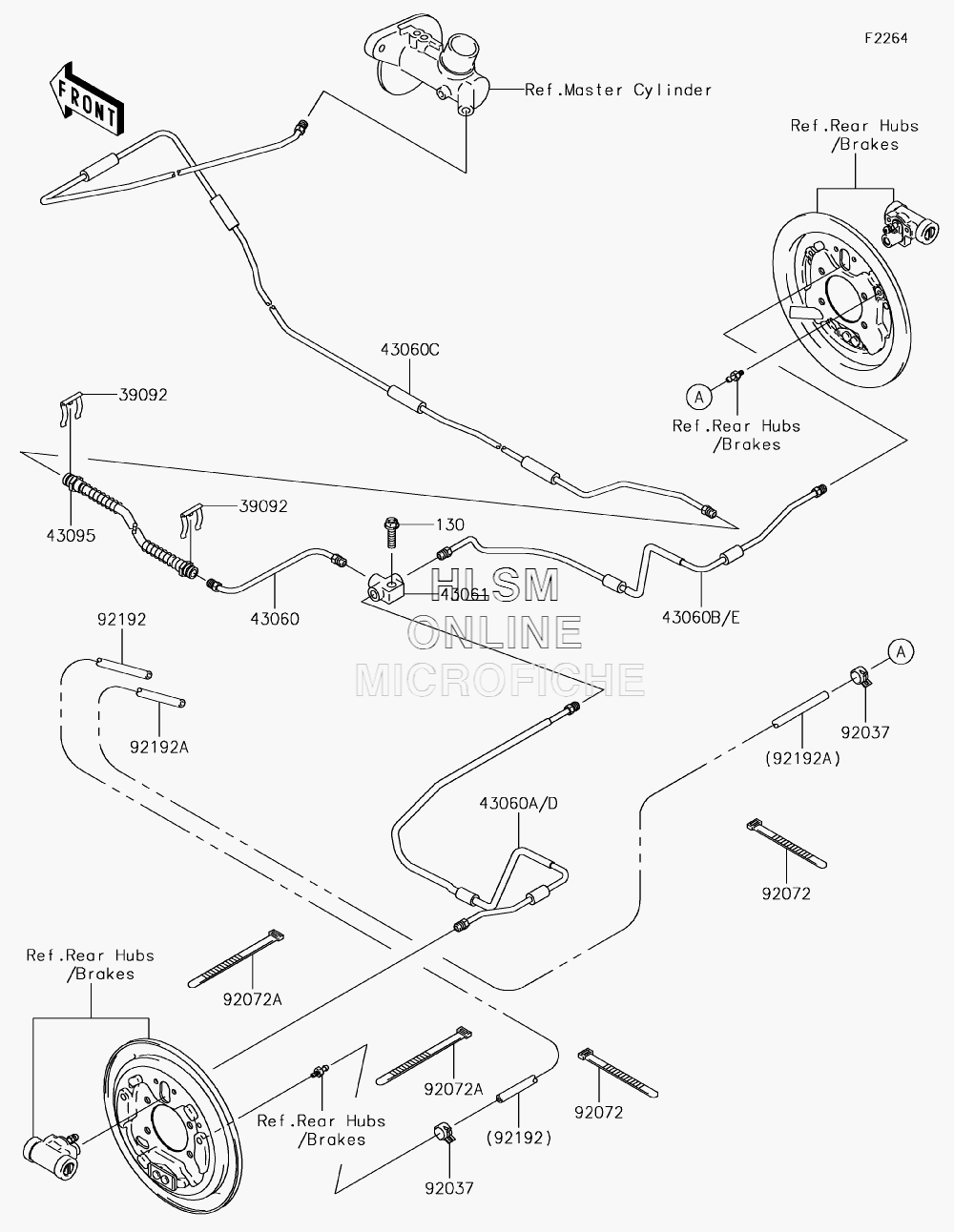

BRAKE PIPING - REAR для Kawasaki MULE SX 4X4 SE (KAF400NHS) - 2017 года выпуска`
-
№АртикулНазвание
-
130130AA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
4306043060-0006 PIPE-BRAKE, REAR, CENTERPIPE-BRAKE, REAR, CENTER
-
43060A43060-0007 PIPE-BRAKE, REAR, LEFT HANDPIPE-BRAKE, REAR, LEFT HAND
-
43060B43060-0008 PIPE-BRAKE, REAR, RIGHT HANDPIPE-BRAKE, REAR, RIGHT HAND
-
43060C43060-0327 PIPE-BRAKE, M/CYLINDERPIPE-BRAKE, M/CYLINDER
-
4306143061-1063 JOINT-BRAKEJOINT-BRAKE
-
4309543095-0488 HOSE-BRAKEHOSE-BRAKE
-
9203792037-1601 CLAMPCLAMP
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
9219292192-0103 TUBE, 4.7X9.5X1320TUBE, 4.7X9.5X1320
-
92192A92192-0176 TUBE, 4.7X9.5X1760TUBE, 4.7X9.5X1760
