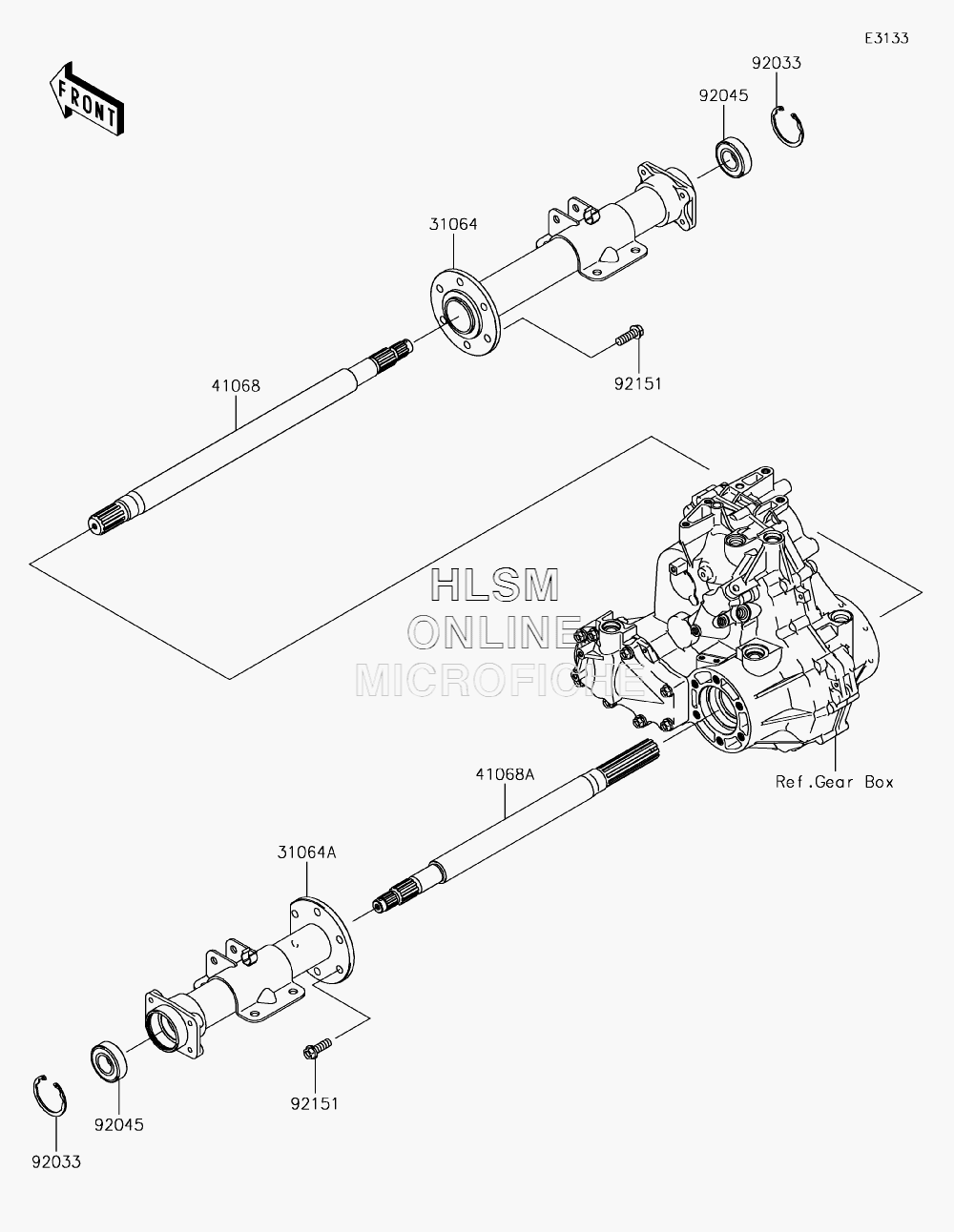

REAR AXLE для Kawasaki MULE SX 4X4 (KAF400HHF) - 2017 года выпуска`
-
№АртикулНазвание
-
3106431064-0645 PIPE-COMP, RIGHT HANDPIPE-COMP, RIGHT HAND
-
31064A31064-0646 PIPE-COMP, LEFT HANDPIPE-COMP, LEFT HAND
-
4106841068-0036 AXLE, RIGHT HANDAXLE, RIGHT HAND
-
41068A41068-0037 AXLE, LEFT HANDAXLE, LEFT HAND
-
9203392033-2149 RING-SNAPRING-SNAP
-
9204592045-0044 BEARING-BALL, 6205A26DDU2BEARING-BALL, 6205A26DDU2
-
9215192151-2142 BOLT, 10X28BOLT, 10X28
