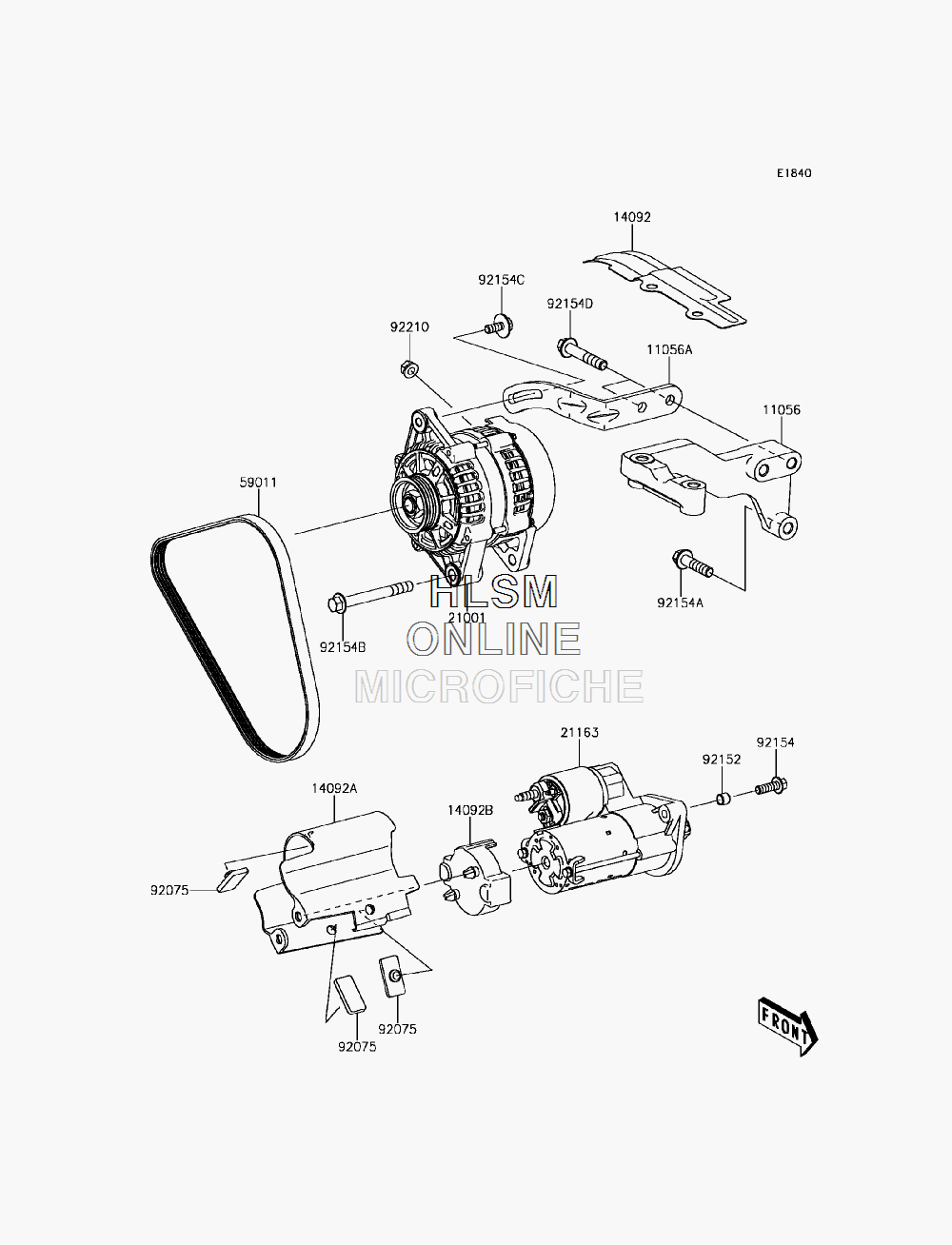

STARTER MOTOR W/ GENERATOR для Kawasaki MULE PRO-FXT (KAF820AHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1105611056-7083 BRACKET,SUSPENSION, REARBRACKET,SUSPENSION, REAR
-
11056A11056-7084 BRACKETBRACKET
-
1409214092-1198 COVER,ALTER BELTCOVER,ALTER BELT
-
14092A14092-1199 COVER,STARTER BODYCOVER,STARTER BODY
-
14092B14092-1200 COVER,STARTER END FACECOVER,STARTER END FACE
-
2100121001-0606 GENERATORGENERATOR
-
2116321163-0751 STARTER-ELECTRICSTARTER-ELECTRIC
-
5901159011-0041 BELTBELT
-
9207592075-1054 DAMPERDAMPER
-
9215292152-1961 COLLARCOLLAR
-
9215492154-1602 BOLT,FLANGED,8X25BOLT,FLANGED,8X25
-
92154A92154-1604 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
92154B92154-1605 BOLT,FLANGED,10X90BOLT,FLANGED,10X90
-
92154C92154-1606 BOLT,8X20BOLT,8X20
-
92154D92154-1607 BOLT,FLANGED,10X55BOLT,FLANGED,10X55
-
9221092210-0960 NUT,6MMNUT,6MM
-
1105611056-7083 BRACKET,SUSPENSION, REARBRACKET,SUSPENSION, REAR
-
11056A11056-7084 BRACKETBRACKET
-
1409214092-1198 COVER,ALTER BELTCOVER,ALTER BELT
-
14092A14092-1199 COVER,STARTER BODYCOVER,STARTER BODY
-
14092B14092-1200 COVER,STARTER END FACECOVER,STARTER END FACE
-
2100121001-0606 GENERATORGENERATOR
-
2116321163-0751 STARTER-ELECTRICSTARTER-ELECTRIC
-
5901159011-0041 BELTBELT
-
9207592075-1054 DAMPERDAMPER
-
9215292152-1961 COLLARCOLLAR
-
9215492154-1602 BOLT,FLANGED,8X25BOLT,FLANGED,8X25
-
92154A92154-1604 BOLT,FLANGED,10X40BOLT,FLANGED,10X40
-
92154B92154-1605 BOLT,FLANGED,10X90BOLT,FLANGED,10X90
-
92154C92154-1606 BOLT,8X20BOLT,8X20
-
92154D92154-1607 BOLT,FLANGED,10X55BOLT,FLANGED,10X55
-
9221092210-0960 NUT,6MMNUT,6MM
