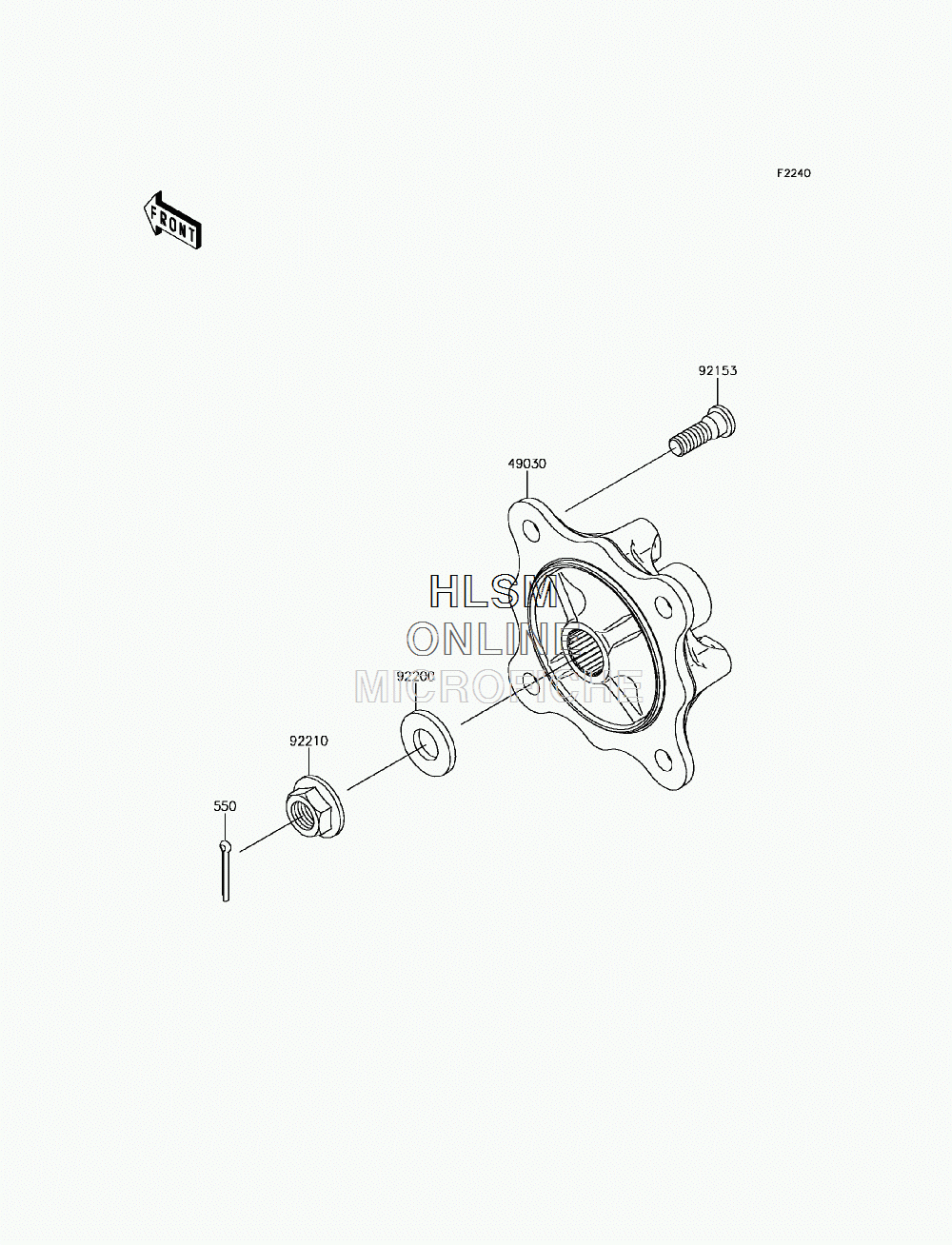

BRAKE - REAR W/ HUBS для Kawasaki MULE PRO-FXT EPS LE (KAF820CHF) - 2017 года выпуска
-
№АртикулНазвание
-
550550AA4030 PIN-COTTER,4.0X30PIN-COTTER,4.0X30
-
4903049030-0049 HUB, REARHUB, REAR
-
9215392153-1915 BOLT,12MMBOLT,12MM
-
9220092200-0921 WASHER,20.3X41X4.5WASHER,20.3X41X4.5
-
9221092210-2093 NUT,FLANGED,20MMNUT,FLANGED,20MM
