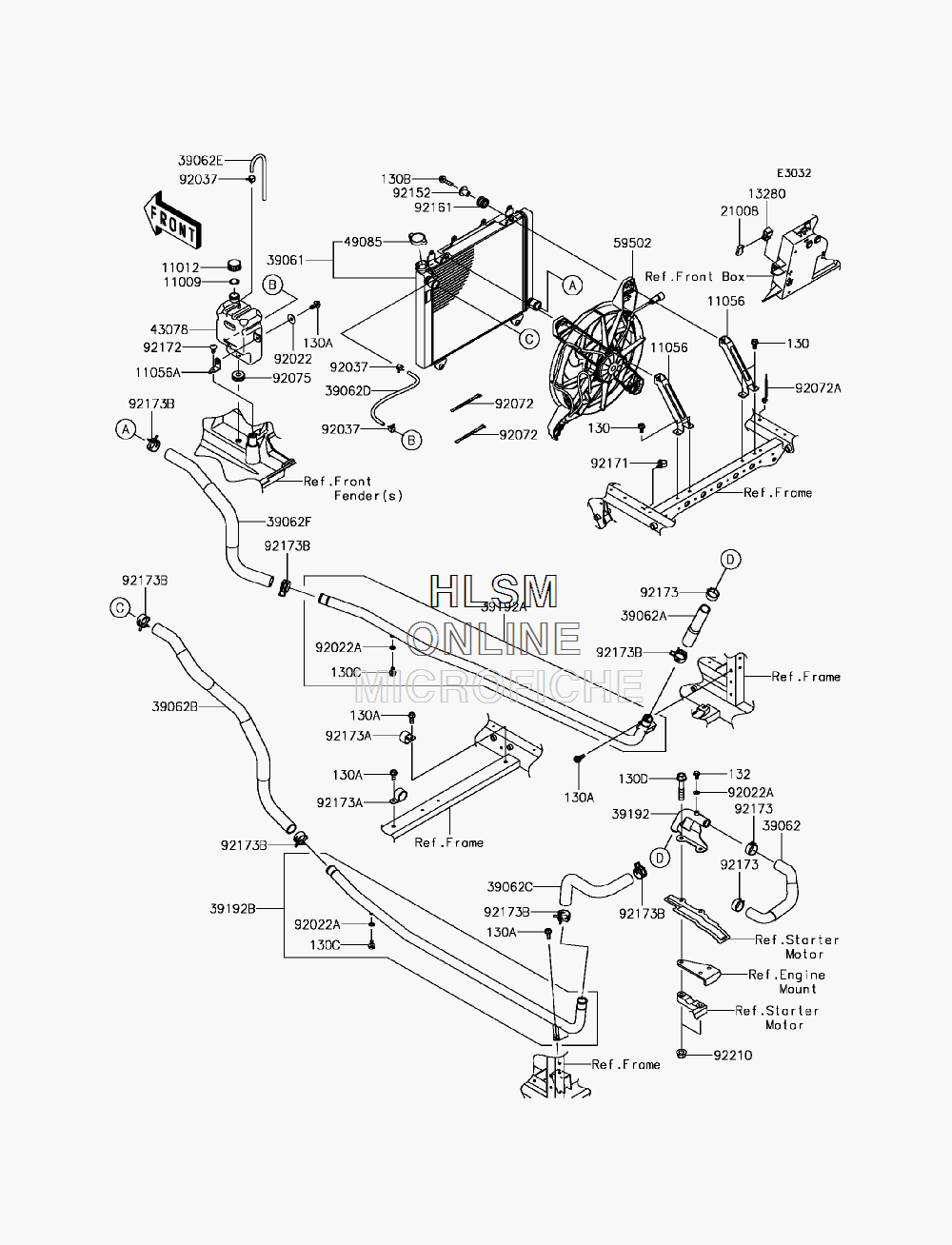

RADIATOR для Kawasaki MULE PRO-FXT EPS (KAF820BHF) - 2017 года выпуска`
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130B130BA0625 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
130C130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130D130CA1050 BOLT-FLANGED,10X50BOLT-FLANGED,10X50
-
132132BA0610 BOLT-FLANGED-SMALL,6X10BOLT-FLANGED-SMALL,6X10
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105611056-2833 BRACKET,RADIATORBRACKET,RADIATOR
-
11056A11056-3856 BRACKET, RESERVOIRBRACKET, RESERVOIR
-
1328013280-0082 HOLDER,BREAKERHOLDER,BREAKER
-
2100821008-0554 BREAKER,RAD. FAN,20ABREAKER,RAD. FAN,20A
-
3906139061-0706 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0647 HOSE-COOLINGHOSE-COOLING
-
39062A39062-0648 HOSE-COOLING,ENGINE INHOSE-COOLING,ENGINE IN
-
39062B39062-0650 HOSE-COOLING,RADIATOR INHOSE-COOLING,RADIATOR IN
-
39062C39062-0651 HOSE-COOLING,ENGINE OUTHOSE-COOLING,ENGINE OUT
-
39062D39062-0657 HOSE-COOLING,RAD.-RESERVOIRHOSE-COOLING,RAD.-RESERVOIR
-
39062E39062-0696 HOSE-COOLING,OVER FLOWHOSE-COOLING,OVER FLOW
-
39062F39062-0697 HOSE-COOLING,RADIATOR OUTHOSE-COOLING,RADIATOR OUT
-
3919239192-0573 PIPE-WATERPIPE-WATER
-
39192A39192-0574 PIPE-WATER, RIGHT HANDPIPE-WATER, RIGHT HAND
-
39192B39192-0575 PIPE-WATER, LEFT HANDPIPE-WATER, LEFT HAND
-
4307843078-0571 RESERVOIRRESERVOIR
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-0609 FAN-ASSYFAN-ASSY
-
9202292022-165 WASHER,PLAIN,6MMWASHER,PLAIN,6MM
-
92022A92022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9203792037-1461 CLAMP,TUBECLAMP,TUBE
-
9207292072-030 BAND,L=123BAND,L=123
-
92072A92072-1414 BANDBAND
-
9207592075-1185 DAMPERDAMPER
-
9215292152-1512 COLLARCOLLAR
-
9216192161-1349 DAMPERDAMPER
-
9217192171-0453 CLAMPCLAMP
-
9217292172-0284 SCREW,6X16SCREW,6X16
-
9217392173-0072 CLAMPCLAMP
-
92173A92173-1204 CLAMPCLAMP
-
92173B92173-1205 CLAMP,28.6MMCLAMP,28.6MM
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
