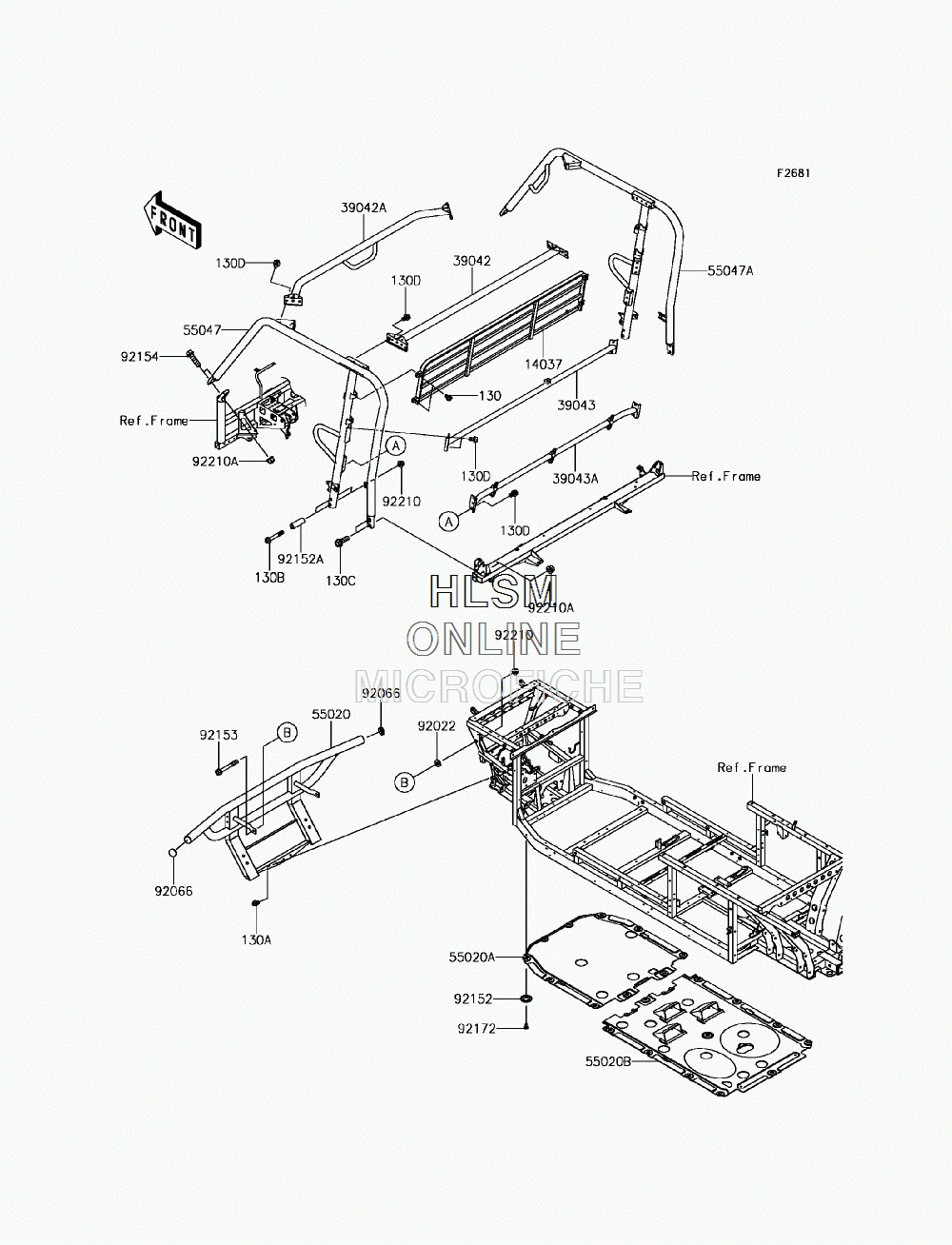

GUARD(S) / CAB FRAME для Kawasaki MULE PRO-FX EPS LE KAF820GHF - 2017 года выпуска`
-
№АртикулНазвание
-
130130BA0812 BOLT-FLANGED,8X12BOLT-FLANGED,8X12
-
130A130BA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
130B130BA1060 BOLT-FLANGED,10X60BOLT-FLANGED,10X60
-
130C130BA1235 BOLT-FLANGED,12X35BOLT-FLANGED,12X35
-
130D130CA1014 BOLT-FLANGED,10X14BOLT-FLANGED,10X14
-
1403714037-0758-388 SCREEN,T.BLACKSCREEN,T.BLACK
-
3904239042-0015-388 CROSSMEMBER, REAR,T.BLACKCROSSMEMBER, REAR,T.BLACK
-
39042A39042-0016-388 CROSSMEMBER, FRONT,T.BLACKCROSSMEMBER, FRONT,T.BLACK
-
3904339043-0016-388 CROSSMEMBER-COMP,B-P.,UPP,BLKCROSSMEMBER-COMP,B-P.,UPP,BLK
-
39043A39043-0017-388 CROSSMEMBER-COMP,B-P.,LWR,BLKCROSSMEMBER-COMP,B-P.,LWR,BLK
-
5502055020-0933-388 GUARD, FRONT PIPE,T.BLACKGUARD, FRONT PIPE,T.BLACK
-
55020A55020-0934 GUARD,SKID PLATEGUARD,SKID PLATE
-
55020B55020-0935 GUARD,SKID PLATEGUARD,SKID PLATE
-
5504755047-0351-388 BAR-COMP,B-PILLAR, LEFT HAND,T.BLACKBAR-COMP,B-PILLAR, LEFT HAND,T.BLACK
-
55047A55047-0352-388 BAR-COMP,B-PILLAR, RIGHT HAND,T.BLACKBAR-COMP,B-PILLAR, RIGHT HAND,T.BLACK
-
9202292022-1365 WASHER,10X22X3WASHER,10X22X3
-
9206692066-0769 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
92152A92152-1800 COLLAR,10.5X16X47COLLAR,10.5X16X47
-
9215392153-1384 BOLT,FLANGED,10X75BOLT,FLANGED,10X75
-
9215492154-1420 BOLT,FLANGED,12X45BOLT,FLANGED,12X45
-
9217292172-0739 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-0603 NUT,12MMNUT,12MM
