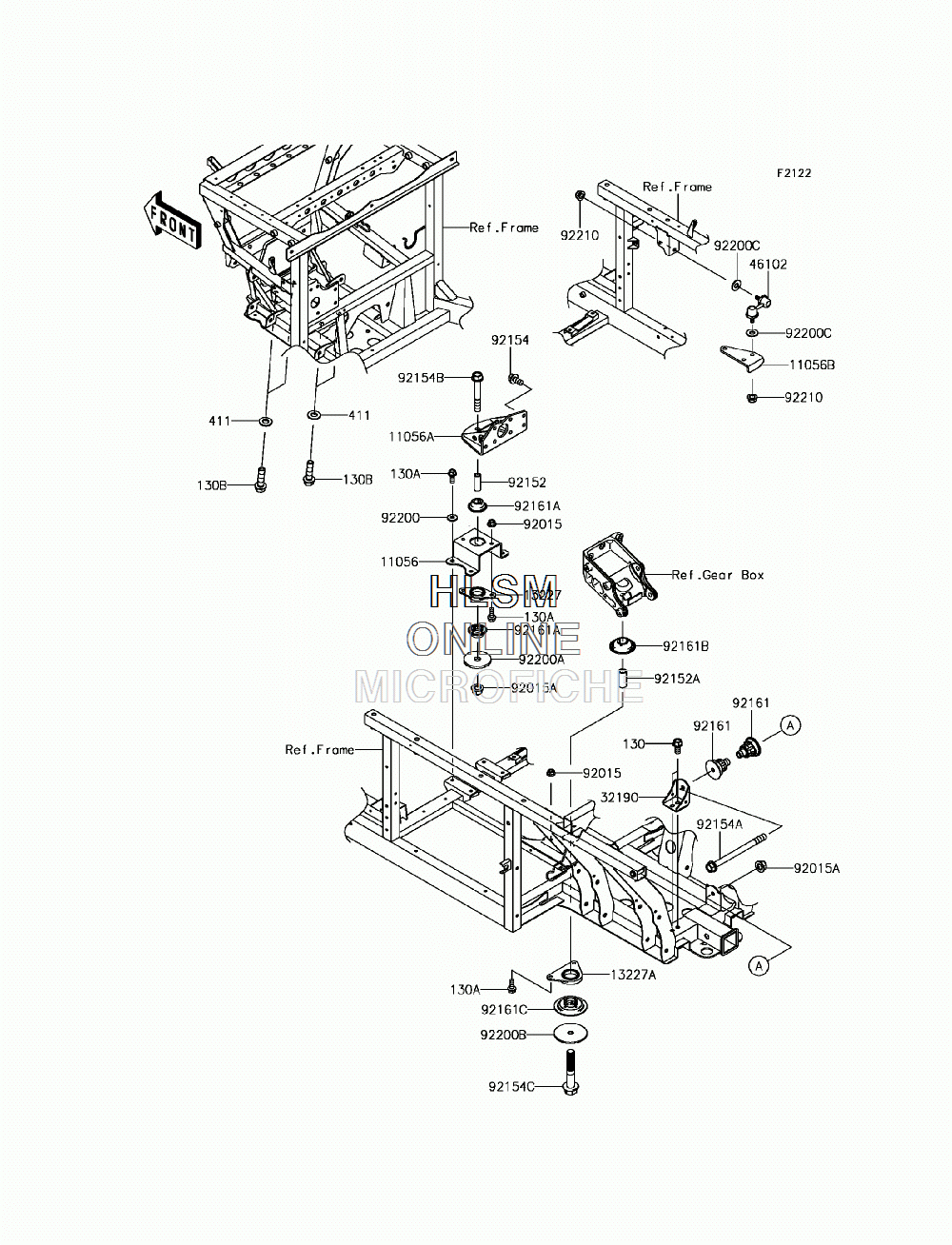

ENGINE MOUNT для Kawasaki MULE PRO-FX EPS CAMO (KAF820HHF) - 2017 года выпуска`
-
№АртикулНазвание
-
130130BA1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
130A130CA0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
130B130CA1245 BOLT-FLANGED,12X45BOLT-FLANGED,12X45
-
411411AA1200 WASHER-PLAIN,12MMWASHER-PLAIN,12MM
-
1105611056-2867 BRACKETBRACKET
-
11056A11056-2868 BRACKETBRACKET
-
11056B11056-2869 BRACKETBRACKET
-
1322713227-0031 HOUSINGHOUSING
-
13227A13227-0032 HOUSINGHOUSING
-
3219032190-0662 BRACKET-ENGINEBRACKET-ENGINE
-
4610246102-0100 ROD,STABILIZER, RIGHT HANDROD,STABILIZER, RIGHT HAND
-
9201592015-1397 NUT,LOCK,FLANGED,8MMNUT,LOCK,FLANGED,8MM
-
92015A92015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9215292152-1802 COLLAR,13X19.1X54COLLAR,13X19.1X54
-
92152A92152-2127 COLLAR,17X23.8X54.5COLLAR,17X23.8X54.5
-
9215492154-1321 BOLT,FLANGED,10X20BOLT,FLANGED,10X20
-
92154A92154-1322 BOLT,FLANGED,12X150BOLT,FLANGED,12X150
-
92154B92154-1419 BOLT,FLANGED,12X80BOLT,FLANGED,12X80
-
92154C92154-1763 BOLT,FLANGED,16X86BOLT,FLANGED,16X86
-
9216192161-1616 DAMPERDAMPER
-
92161A92161-1617 DAMPERDAMPER
-
92161B92161-1618 DAMPERDAMPER
-
92161C92161-1619 DAMPERDAMPER
-
9220092200-0205 WASHER,8.2X20.0X2.5WASHER,8.2X20.0X2.5
-
92200A92200-0913 WASHER,12.5X55X4.76WASHER,12.5X55X4.76
-
92200B92200-1747 WASHER,16.5X100X4.76WASHER,16.5X100X4.76
-
92200C92200-2009 WASHER,10.3X23X1.6WASHER,10.3X23X1.6
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
