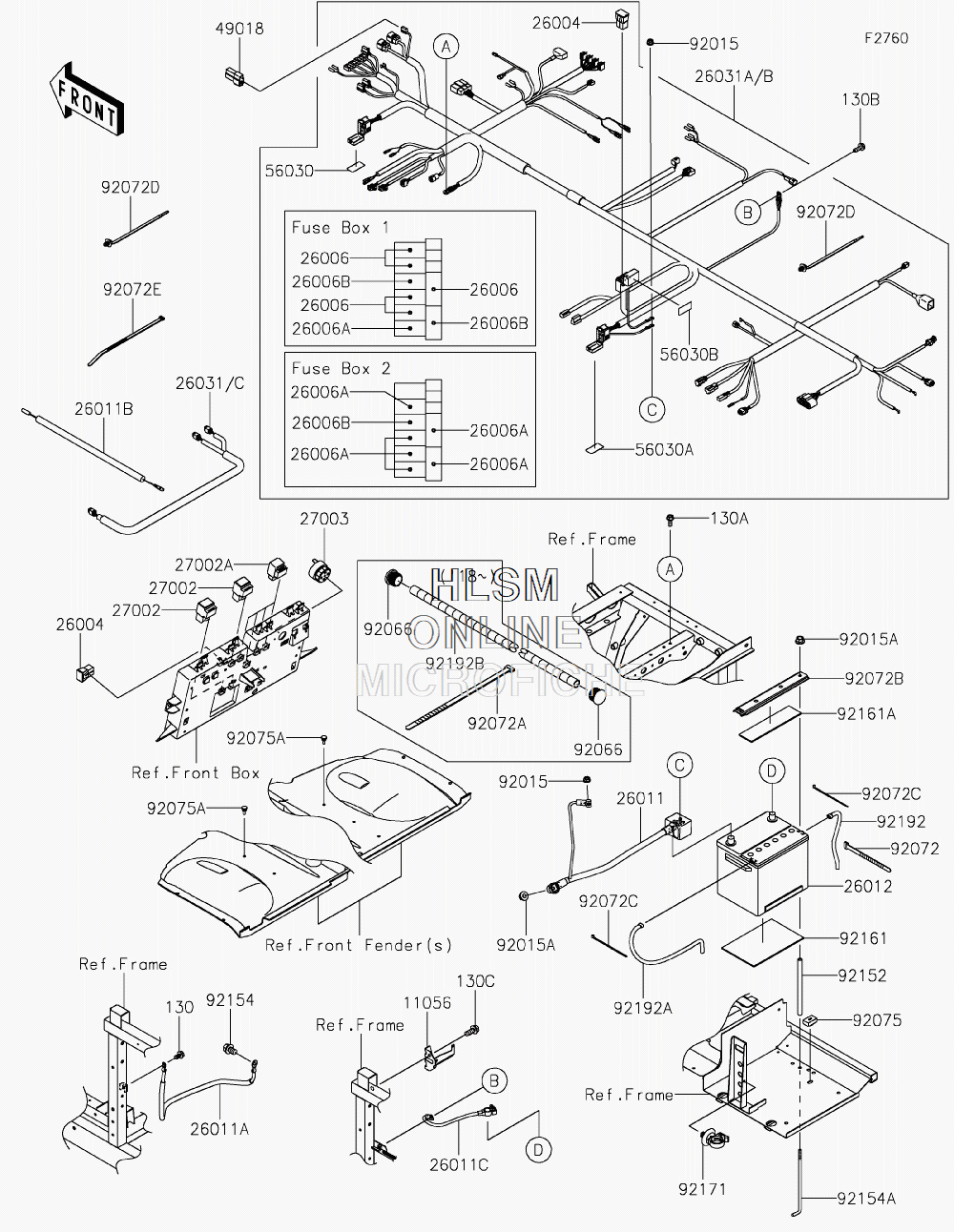

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE PRO-DXT (KAF1000AHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1105611056-7478 BRACKET, FUSEBRACKET, FUSE
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130C130BA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
2600426004-0024 FUSE-ASSY, 60AFUSE-ASSY, 60A
-
2600626006-0009 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
26006A26006-1080 FUSE, MINI BLADE, 30A, (GREEN)FUSE, MINI BLADE, 30A, (GREEN)
-
26006B26006-3704 FUSE, MINI BLADE, 20A, (YELLOW)FUSE, MINI BLADE, 20A, (YELLOW)
-
2601126011-0904 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011A26011-0905 WIRE-LEAD, ENGINE GNDWIRE-LEAD, ENGINE GND
-
26011B26011-0906 WIRE-LEAD, OIL PRESSURE SW.WIRE-LEAD, OIL PRESSURE SW.
-
26011C26011-0912 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-7501 BATTERY, WET, (26R)BATTERY, WET, (26R)
-
2603126031-1647 HARNESS, SUBHARNESS, SUB
-
26031A26031-1883 HARNESS, MAINHARNESS, MAIN
-
2700227002-0012 RELAY-ASSYRELAY-ASSY
-
27002A27002-1062 RELAY-ASSYRELAY-ASSY
-
2700327003-0116 HORN, PARKING BUZZERHORN, PARKING BUZZER
-
4901849018-0006 DIODEDIODE
-
5603056030-0917 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030A56030-0919 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
56030B56030-0920 LABEL, FUSE BOX3LABEL, FUSE BOX3
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9207292072-030 BAND, L=123BAND, L=123
-
92072B92072-0767 BANDBAND
-
92072C92072-0791 BAND, 92X2.4BAND, 92X2.4
-
92072D92072-1414 BAND, OS170-FT7 (BLACK)BAND, OS170-FT7 (BLACK)
-
92072E92072-3509 BAND, L=292.1BAND, L=292.1
-
9207592075-099 DAMPERDAMPER
-
92075A92075-1808 DAMPER, 6X10X15DAMPER, 6X10X15
-
9215292152-1852 COLLAR, 9.4X12.7X190.8COLLAR, 9.4X12.7X190.8
-
9215492154-1383 BOLT, FLANGED, 10X14BOLT, FLANGED, 10X14
-
92154A92154-1650 BOLT, BATTERYBOLT, BATTERY
-
9216192161-0578 DAMPERDAMPER
-
92161A92161-1753 DAMPERDAMPER
-
9217192171-0453 CLAMPCLAMP
-
9219292192-1646 TUBE, BREATHER, 7X10X240TUBE, BREATHER, 7X10X240
-
92192A92192-1694 TUBE, BREATHER, 7X10X450TUBE, BREATHER, 7X10X450
