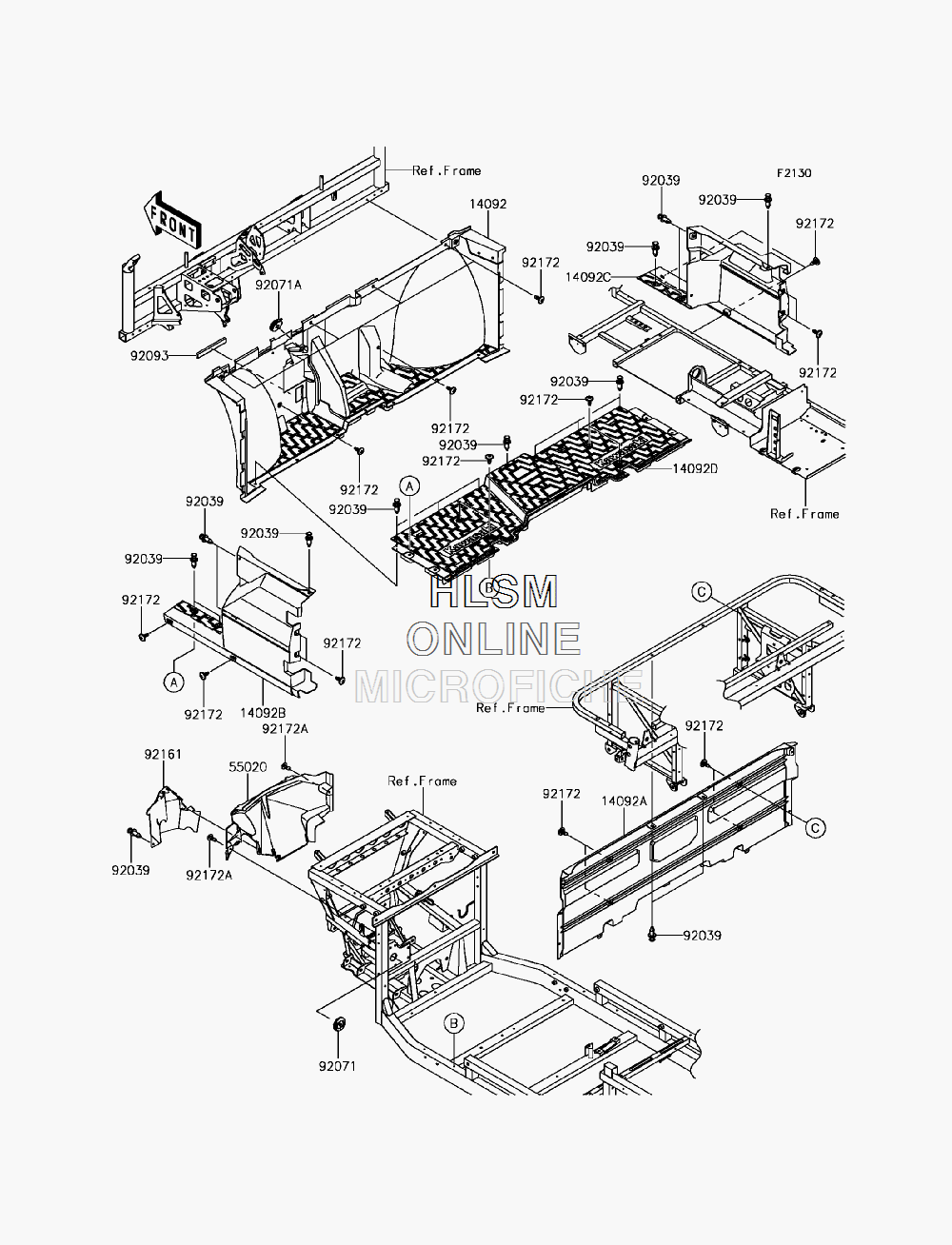

FRAME FITTINGS (FRONT) для Kawasaki MULE PRO-DXT EPS LE (KAF1000CHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1409214092-1184 COVER, FRONT FLOORCOVER, FRONT FLOOR
-
14092A14092-1185 COVER, FRONT SEATCOVER, FRONT SEAT
-
14092B14092-1188 COVER,SIDE, LEFT HAND, FRONTCOVER,SIDE, LEFT HAND, FRONT
-
14092C14092-1189 COVER,SIDE, RIGHT HAND, FRONTCOVER,SIDE, RIGHT HAND, FRONT
-
14092D14092-1196 COVER,FLOOR,BOTTOMCOVER,FLOOR,BOTTOM
-
5502055020-0961 GUARDGUARD
-
9203992039-1229 RIVETRIVET
-
9207192071-0728 GROMMET,9X45X9GROMMET,9X45X9
-
92071A92071-0753 GROMMET,8X22X8GROMMET,8X22X8
-
9209392093-0617 SEAL,10X20X165SEAL,10X20X165
-
9216192161-1649 DAMPERDAMPER
-
9217292172-0711 SCREW,6X16SCREW,6X16
-
92172A92172-0739 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
