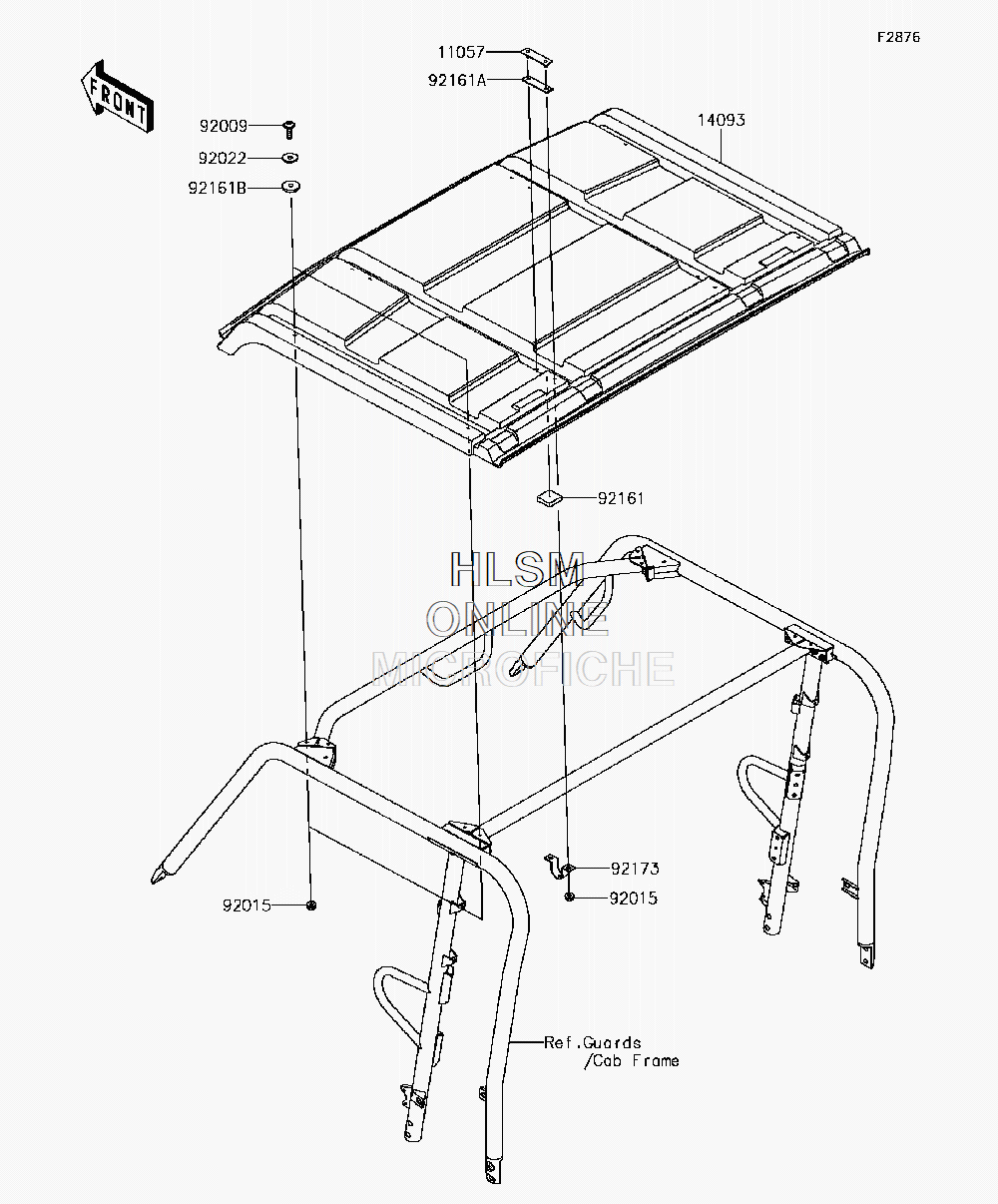

SUN TOP для Kawasaki MULE PRO-DX EPS LE (KAF1000FHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1105711057-0074 BRACKETBRACKET
-
1409314093-0245 COVER, SUN TOP, FRONTCOVER, SUN TOP, FRONT
-
9200992009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-237 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
-
9216192161-1405 DAMPER, 25.4X25.4X6.3DAMPER, 25.4X25.4X6.3
-
92161A92161-1476 DAMPERDAMPER
-
92161B92161-1633 DAMPER, 6X25X3.15DAMPER, 6X25X3.15
-
9217392173-1224 CLAMP, UCLAMP, U
