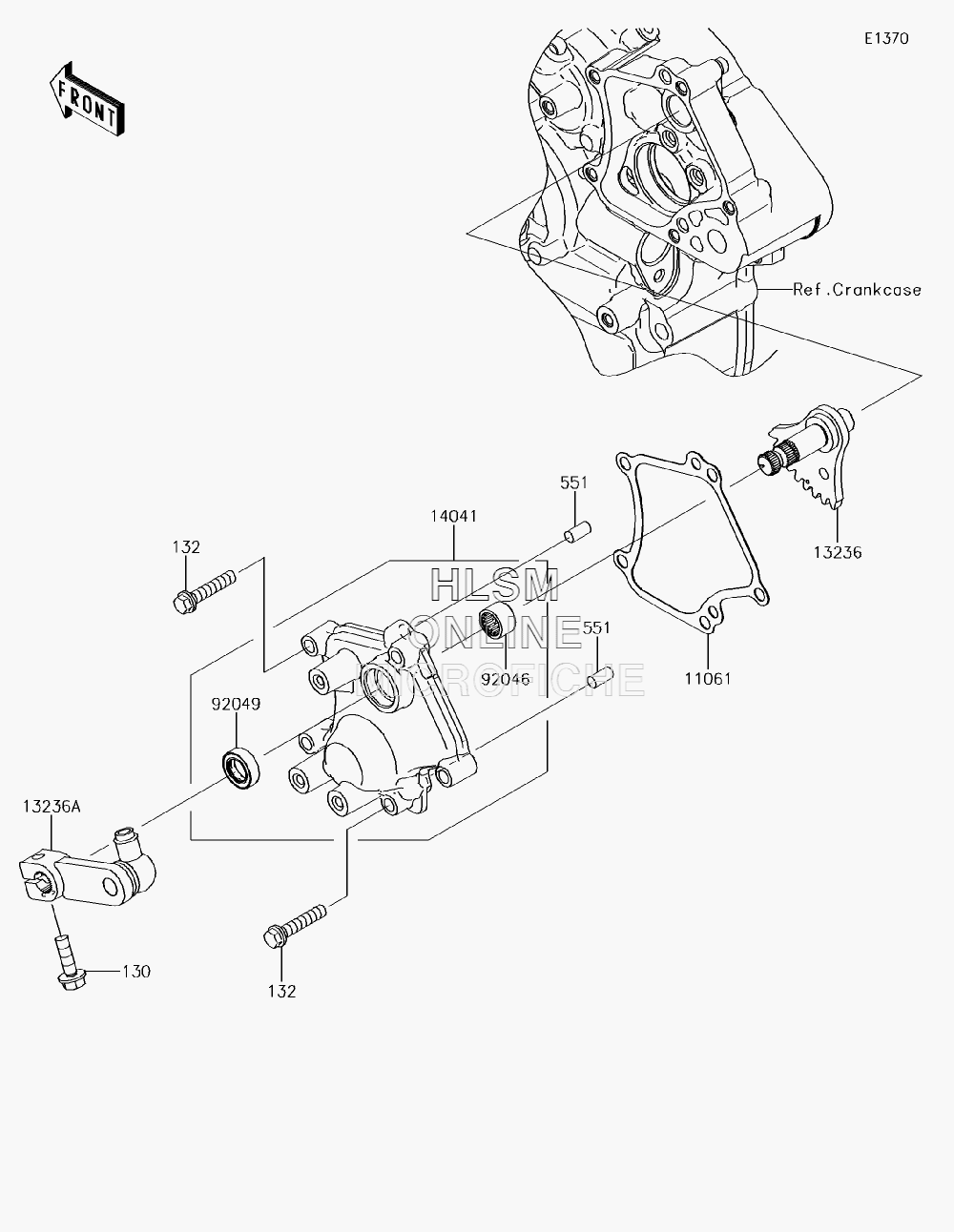

GEAR CHANGE MECHANISM для Kawasaki TERYX4 LE (KRT800GGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1106111061-0725 GASKET, DRUM COVERGASKET, DRUM COVER
-
130130CA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
1323613236-0707 LEVER-COMP, CHANGELEVER-COMP, CHANGE
-
13236A13236-0708 LEVER-COMP, CHANGE LEVERLEVER-COMP, CHANGE LEVER
-
1404114041-0555 COVER-COMP, CHANGECOVER-COMP, CHANGE
-
551551A0612 PIN-DOWEL, 6X12PIN-DOWEL, 6X12
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
9204992049-1475 SEAL-OIL, CLUTCH RELEASESEAL-OIL, CLUTCH RELEASE
