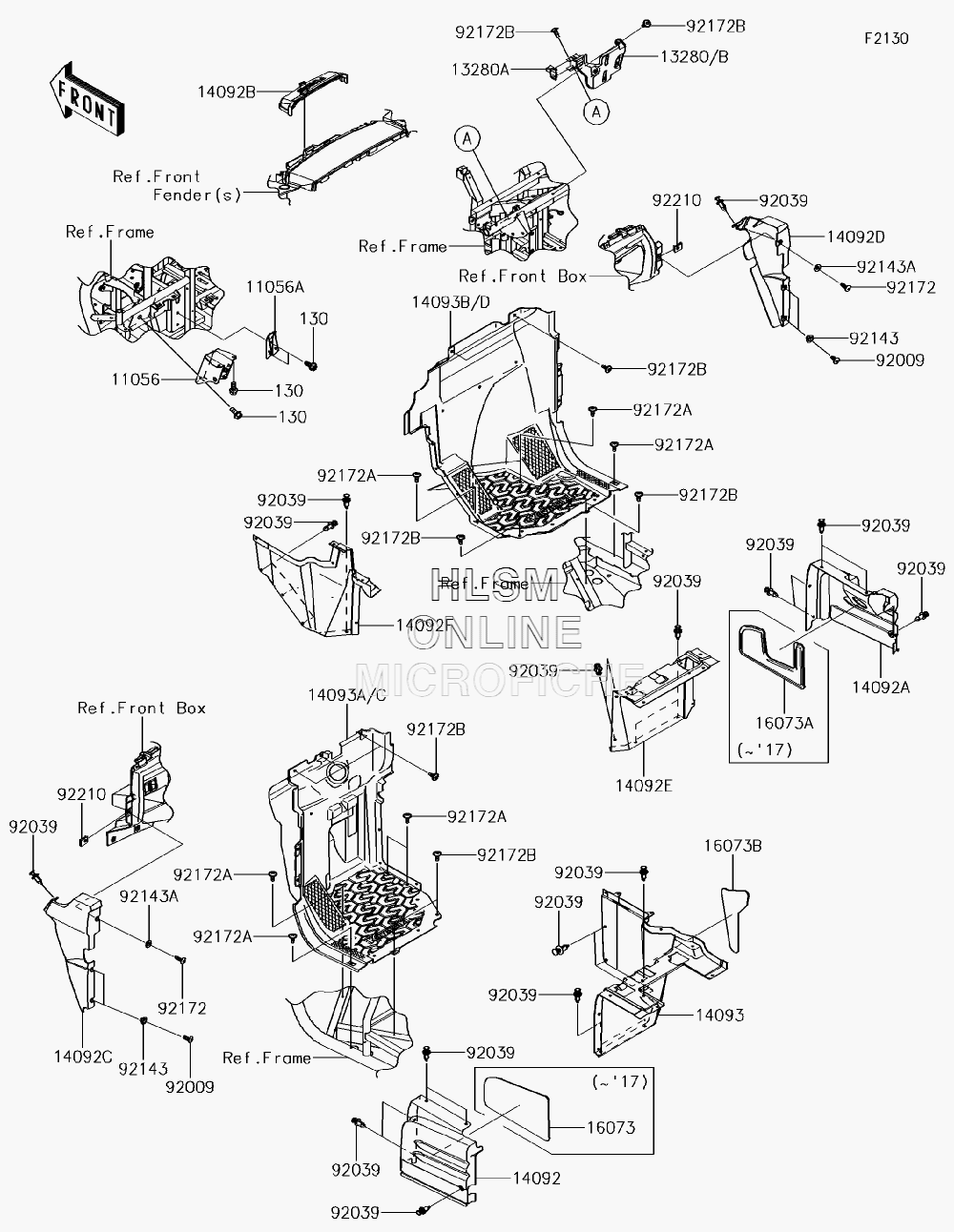

FRAME FITTINGS (FRONT) для Kawasaki TERYX4 LE (KRT800GGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1105611056-1431 BRACKET, BRAKE PEDALBRACKET, BRAKE PEDAL
-
11056A11056-4408 BRACKET, THROTTLE PEDALBRACKET, THROTTLE PEDAL
-
130130BA0818 BOLT-FLANGED, 8X18BOLT-FLANGED, 8X18
-
1328013280-0832 HOLDER, ECUHOLDER, ECU
-
13280A13280-0851 HOLDERHOLDER
-
1409214092-0720 COVER, SEAT SIDE, LEFT HANDCOVER, SEAT SIDE, LEFT HAND
-
14092A14092-0721 COVER, SEAT SIDE, RIGHT HANDCOVER, SEAT SIDE, RIGHT HAND
-
14092B14092-0724 COVER, FUSE BOXCOVER, FUSE BOX
-
14092C14092-0754-839 COVER, SIDE GUARD, LEFT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, LEFT HAND, (S.BLACK) (FOR ALL COLORS)
-
14092D14092-0755-839 COVER, SIDE GUARD, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)COVER, SIDE GUARD, RIGHT HAND, (S.BLACK) (FOR ALL COLORS)
-
14092E14092-0757 COVER, FRONT SEAT, RIGHT HANDCOVER, FRONT SEAT, RIGHT HAND
-
14092F14092-1083 COVER, FRONT SEAT, RIGHT HAND, CENTERCOVER, FRONT SEAT, RIGHT HAND, CENTER
-
1409314093-0209 COVER, FRONT SEAT, LEFT HANDCOVER, FRONT SEAT, LEFT HAND
-
14093C14093-5137 COVER, FRONT FLOOR, LEFT HANDCOVER, FRONT FLOOR, LEFT HAND
-
14093D14093-5138 COVER, FRONT FLOOR, RIGHT HANDCOVER, FRONT FLOOR, RIGHT HAND
-
1607316073-0810 INSULATOR, SEAT SIDE, LEFT HANDINSULATOR, SEAT SIDE, LEFT HAND
-
16073A16073-0811 INSULATOR, SEAT SIDE, RIGHT HANDINSULATOR, SEAT SIDE, RIGHT HAND
-
16073B16073-0847 INSULATORINSULATOR
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9203992039-0776 RIVETRIVET
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9217292172-0488 SCREW, TAPPING, 6X20SCREW, TAPPING, 6X20
-
92172A92172-0711 SCREW, 6X16SCREW, 6X16
-
92172B92172-0826 SCREW, 6X16SCREW, 6X16
-
9221092210-0624 NUT, LEAF SPRING, 6MMNUT, LEAF SPRING, 6MM
