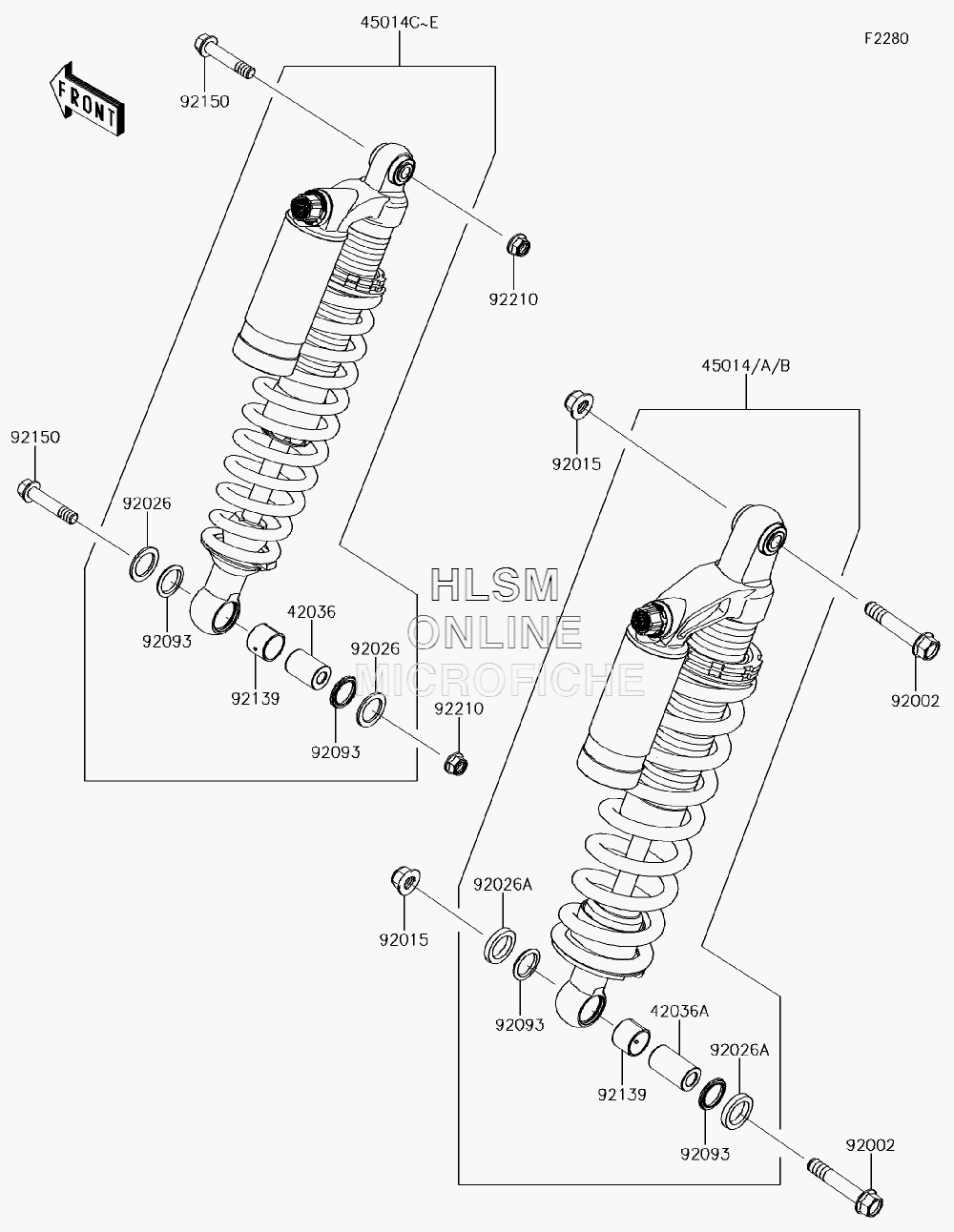

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki TERYX LE (KRF800GGF) - 2016 года выпуска
-
№АртикулНазвание
-
4203642036-0772 SLEEVESLEEVE
-
42036A42036-0773 SLEEVESLEEVE
-
4501445014-0485-42K SHOCKABSORBER, REAR, (C.L.GREEN) (FOR ALL COLORS)SHOCKABSORBER, REAR, (C.L.GREEN) (FOR ALL COLORS)
-
45014C45014-0486-42K SHOCKABSORBER, FRONT, (C.L.GREEN) (FOR ALL COLORS)SHOCKABSORBER, FRONT, (C.L.GREEN) (FOR ALL COLORS)
-
9200292002-1757 BOLT, ROD, 12MMBOLT, ROD, 12MM
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9202692026-0793 SPACERSPACER
-
92026A92026-0794 SPACERSPACER
-
9209392093-0609 SEALSEAL
-
9213992139-0809 BUSHINGBUSHING
-
9215092150-1125 BOLT, FLANGED, 10X50BOLT, FLANGED, 10X50
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
